AX-15 | 13.8 HP Kubota Engine Mini Excavator

AX-15 | 13.8 HP Kubota Engine Mini Excavator

$9,499.99 USD
$8,499.99 USD $9,499.99 USD
Sale Sold out
Mini Excavator Model
Standard Bucket Included
Delivery Option
  • Free Shipping from US
  • 1-Year Warranty
  • Lifetime Tech Support

Shipping is free, but UNLOADING SERVICE NOT INCLUDED. Please review our shipping policy before placing your order. Click here for details
View full details

Born for Durability and Performance

The AHM AX-15 13.8 HP mini excavator features a Kubota engine designed to endure, running quieter and lasting three times longer than typical B&S engines. With a 69 in. digging depth and a 120 in. max digging radius, it's perfect for tight spots at just 36 inches wide. Built tough for serious work, it’s your reliable partner for every job.

  • 6% Deeper Than Others Ensures reliable efficiency for everyday task

    6% Deeper Than Others

    Ensures reliable efficiency for everyday task

  • Kubota engine runs quieter and smoother, and offers unbeatable durability

    3 Times Longer Engine Life

    Kubota engine runs quieter and smoother, and offers unbeatable durability

  • 15% Lower Ownership Costs with industry-low prices and minimal upkeep costs

    15% Lower Ownership Costs

    with industry-low prices and minimal upkeep costs
Compact Excavator w 2698 lbf Force,mini digger small excavator with Kubota Efficient Engine

Kubota Efficient Engine

Our heavy-duty mini digger, equipped with the premium 13.8 hp Kubota D722 engine, runs smoother than a breeze. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.

  • EPA Tier 4 Compliance: Meets the world's strictest emissions standards in its class.
  • Proven Durability: Chosen for diverse applications for 25 years, setting industry benchmarks.
  • Clean and Quiet Power: Enhanced Three Vortex Combustion System for 50% lower particulate matter in a compact design.

Download Kubota Engine Specifications

With its Kubota D722 engine, 2698 lbf digging force, and 5.7 ft. digging depth

5.7 ft. Maximum Digging Depth

With its Kubota D722 engine, 2698 lbf digging force, and 5.7 ft. digging depth, this light yet powerful mini excavator by AHM is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.

Simplify routine check and maintenance with external hydraulic hoses on our mini digger

Easy Maintenance

Simplify routine check and maintenance with external hydraulic hoses on our mini digger. The easily accessible compartment ensures quick access to vital components, minimizing downtime and maximizing peak performance.

Compatible with Multiple Attachments

Compatible with Multiple Attachments

Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like augers, rippers, and mulcher heads (not incl.), making quick work of your concrete cutting and tree mulching.

Our small digger is made from sturdy steel for durable long-lasting service

Hardy Helper for Any Terrain

Our small digger is made from sturdy steel for durable long-lasting service, while the rubber tracks let the excavator move on various surfaces and offer exceptional traction without damaging cabro paving, indoor flooring, or pavement.

Hydraulic Joystick Control

Hydraulic Joystick Control

  • The hydraulic joystick on AHM mini excavators ensures smooth, efficient operation. It allows precise control of attachments with minimal effort, reducing fatigue during grading and backfilling.
  • Designed with the International Standards Organisation (ISO) operation mode, it ensures simplicity and ease of use, with minimal learning curve.
  • The cut and wear resistant rubber tracks

    The cut and wear resistant rubber tracks operate on manicured turf, rocky hills, and paved surfaces without damaging them.

  • Our mini digger comes with a 15.7 in. wide grading bucket

    Our mini digger comes with a 15.7 in. wide grading bucket, providing optimal efficiency for precise excavation and grading tasks on construction sites.

  • The digger boasts a sturdy steel construction for long lasting performance

    The digger boasts a sturdy steel construction for long lasting performance, while its open design gives you a 360 degree view from the operator's seat to get your job done right.

  • Effortlessly operate our user-friendly 1.1 ton mini excavator

    Effortlessly operate our user-friendly 1.1 ton mini excavator, complete with a comprehensive instruction manual.

EASY TO OPERATE

Mini Excavator Assembly & Setup by Green Acre Homestead

  • Specification

    • Material: Steel, Rubber
    • Engine Model: Kubota D722
    • Rated Power: 13.8 hp (10.1 kW)
    • Rated Speed: 2600 rpm
    • Fuel Tank Volume: 2.58 gal. (9.74 L)
    • Fuel Consumption: 0.26 gal./h (1 L/h)
    • Hydraulic Tank Volume: 3.4 gal. (12.7 L)
    • Overall Track Length: 48.5 in. (1230 mm)
    • Platform Ground Clearance: 16.2 in. (410 mm)
    • Bucket Volume: 0.88 ft3 (0.03 m3)
    • Bucket Width: 15.7 in. (400 mm)
    • Max. Bucket Digging Force: 2698 lbf (12 KN)
    • Overall Height: 7.3 ft. (2240 mm)
    • Max. Digging Depth: 69 in. (1750 mm)
    • Max. Dumping Height: 62.6 in. (1590 mm)
    • Max. Digging Radius: 120 in. (3050 mm)
    • Dozer Height: 12.6 in. (320 mm)
    • Dozer Depth: 7.8 in. (200 mm)
    • Max. Slope Grade: 30°
    • Net Weight: 1940 lb. (880 kg)
    • Warranty: 1 Year

  • Package List

    • 1x Mini Excavator
    • 1x Canopy
    • 1x Filter
    • 4x Pipe Clamps
    • 4x Grease Fittings
    • 1x Hose Nozzle
    • 1x Socket
    • 1x Grease Gun
    • 1x Hex Wrench
    • 1x Socket Lever
    • 1x Adjustable Wrench
    • 4x Wrenches
    • 1x Lubricating Grease
    • 1x Tool Box
    • 4x Adapters
    • 1x User Manual

Specs & Compare

Product Manual
13.8 hp Mini Excavator 1 Ton Mini Crawler Excavator with All-Terrain Tracks
AX-15
Key Specifications
Operating Weight
Max. Bucket Digging Force
Max. Digging Depth
Width
Tail Swing Type
Engine
Emissions Tier (EPA)
Model
Gross Power
Engine Fuel
Maximum Governed RPM
Rated Torque
Displacement
Stroke
Bore
Performance
Operating Weight
Weight Class
Max. Traveling Speed
Bucket Digging Force
Max. Digging Radius
Min. Swing Radius
Max. Digging Depth
Max Dump Height
Platform Ground Clearance
Bucket Volume
Bucket Width
Capacities
Fuel Tank Volume
Fuel Consumption
Fuel Type
Hydraulic System
Hydraulic Tank Volume
Hydraulic Oil
Main Pump Flow
Rated Pressure
Max. Pressure
Dimension
Overall Length in Travel Position
Width
Height with Operator Cab

Customer Reviews

Based on 10 reviews
90%
(9)
10%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Mike Armas
Really good machine.

The machine arrived in good shape and was easily unloaded. Took a bit of time to unboxing but pleasantly surprised by how nice the machine was. For some reason the battery was not fully charged and nd a quick call to AHM and talking to Juan got it up and running. Taking it out for the first work session was a little intimidating at first getting used to the controls. Take your time and move the joy sticks slowly. If you get a thumb for it, it takes quite a bit of effort to get the joystick to work, apply quite a bit of force and it will work. This machine continues to be hard to start and I think it’s because of the cool weather and my getting accustomed to how this thing works. If I don’t get it figured out, I’ll call support to try and get it fixed. The machine takes FOREVER to move from one place to another, which is good if the ground is uneven as it might not take a lot to roll it over because of the narrow width of the tracks. It is stable when picking logs and stumps and moving them to the burn pile if carrying the load low to the ground and close to the machine. All in all I am very happy with the purchase and abilities of this machine. Wish I’d purchased a lot sooner than I did.

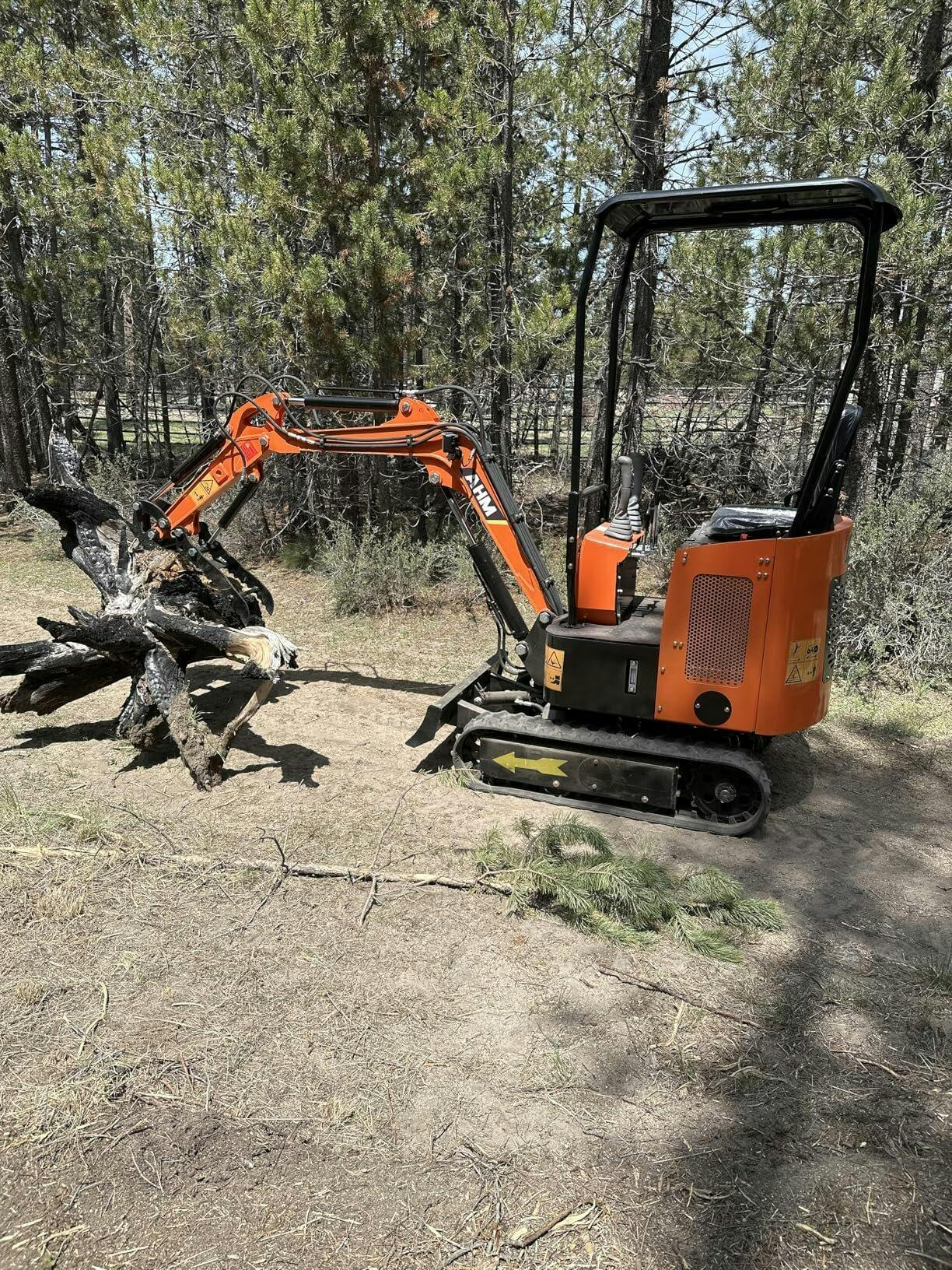

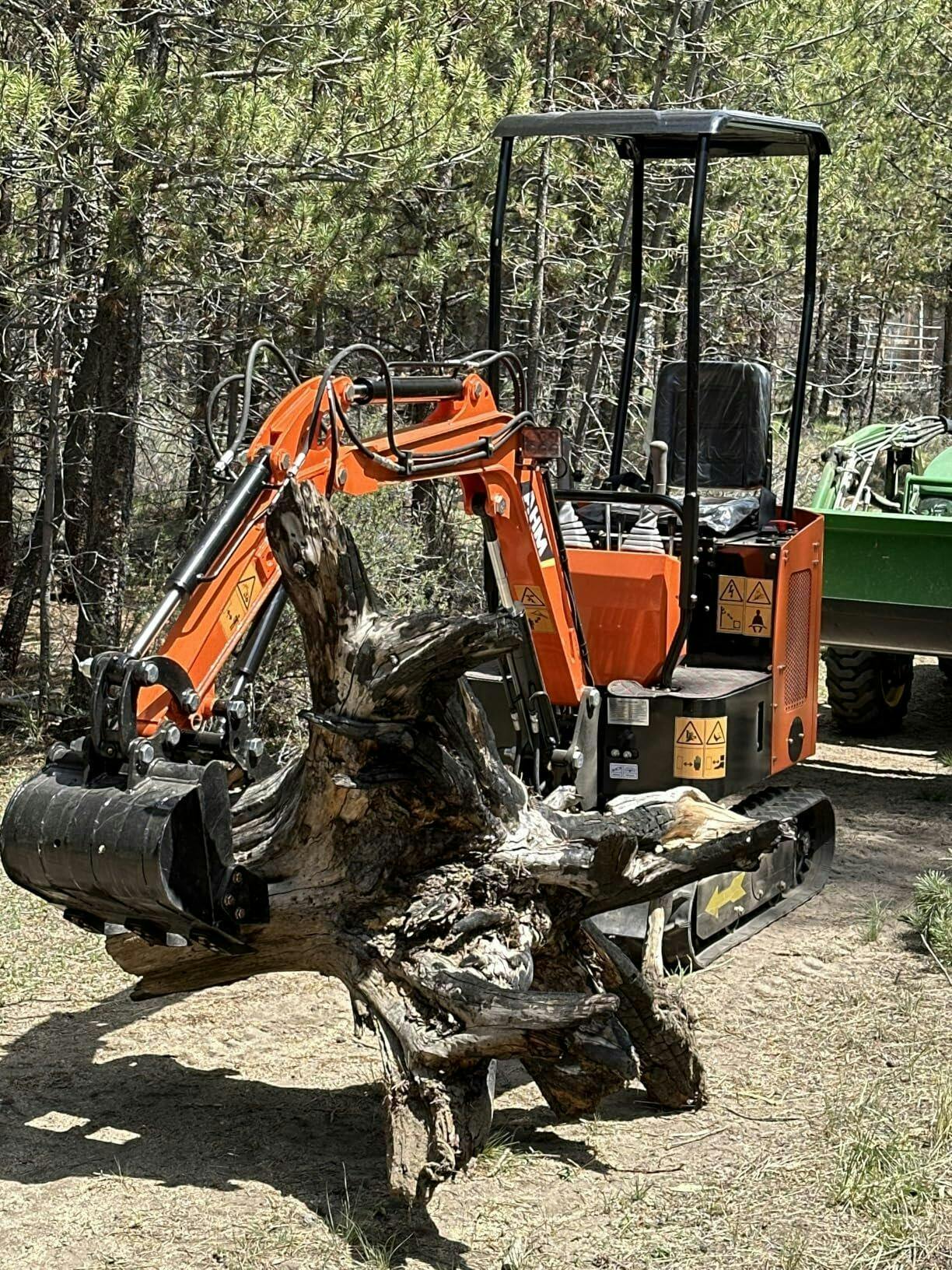

User picture User picture
S
Scott Sanderson
looks great so far

Just got my excavator last week, haven’t had a chance to really put it to work yet, but so far it looks great, everything seems solid and well built, can’t wait to get some hours on it.

User picture
R
Ronnie Higingbottom

AX-15 | 13.8 HP Kubota Engine Mini Excavator

R
Robertson Beasley
I highly recommend it.

10/10 It will do light duty with the kubota diesel this thing digs! I would recommend to a friend I am very happy with this. I believe it will run for years to come, it uses less then 1 gallon an hour. I've got 5 hours on it and I've never ran a mini before. I highly recommend it.

J
John Scott

AX-15 | 13.8 HP Kubota Engine Mini Excavator

12

FAQ

What is the engine model?

The engine model is Kubota Single Cylinder D722.

What is the engine cooling method?

The engine cooling method is water-cooled.

What type of fuel does it use?

It uses diesel fuel.

What is the capacity of the fuel tank and the fuel consumption rate?

The capacity of the fuel tank is 9.74 liters, and the fuel consumption rate is 1 liter per hour (1L/H).

Where is the fuel filling port located?

The fuel filling port is located at the bottom of the seat and at the right footstep position of the machine.

What accessories are included with the machine?

The machine comes with only one digging bucket and does not include any additional attachments.

What are the dimensions of the pin shaft/linkage rod?

The dimensions are M25*160.

What is the travel speed of the excavator?

The travel speed of this excavator is 3 km/h.
