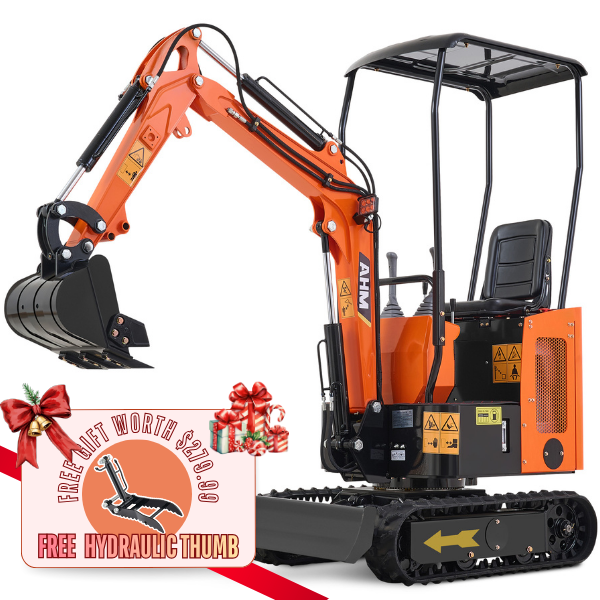

AX-15 | 13.8 HP Kubota Engine Mini Excavator

AX-15 | 13.8 HP Kubota Engine Mini Excavator

$7,899.99 USD
$8,599.99 USD $7,899.99 USD
Sale Sold out
Mini Excavator Model
Included Accessories
Delivery Option
  • Free Shipping from US
  • 1-Year Warranty
  • Lifetime Tech Support

Shipping is free, but UNLOADING SERVICE NOT INCLUDED. Please review our shipping policy before placing your order. Click here for details
View full details

Born for Durability and Performance

The AHM AX-15 13.8 HP mini excavator features a Kubota engine designed to endure, running quieter and lasting three times longer than typical B&S engines. With a 69 in. digging depth and a 120 in. max digging radius, it's perfect for tight spots at just 36 inches wide. Built tough for serious work, it’s your reliable partner for every job.

  • 6% Deeper Than Others Ensures reliable efficiency for everyday task

    6% Deeper Than Others

    Ensures reliable efficiency for everyday task

  • Kubota engine runs quieter and smoother, and offers unbeatable durability

    3 Times Longer Engine Life

    Kubota engine runs quieter and smoother, and offers unbeatable durability

  • 15% Lower Ownership Costs with industry-low prices and minimal upkeep costs

    15% Lower Ownership Costs

    with industry-low prices and minimal upkeep costs
Compact Excavator w 2698 lbf Force,mini digger small excavator with Kubota Efficient Engine

Kubota Efficient Engine

Our heavy-duty mini digger, equipped with the premium 13.8 hp Kubota D722 engine, runs smoother than a breeze. Say goodbye to annoying vibrations, enjoy seamless operation, and count on it sticking around for the long haul.

  • EPA Tier 4 Compliance: Meets the world's strictest emissions standards in its class.
  • Proven Durability: Chosen for diverse applications for 25 years, setting industry benchmarks.
  • Clean and Quiet Power: Enhanced Three Vortex Combustion System for 50% lower particulate matter in a compact design.

Download Kubota Engine Specifications

With its Kubota D722 engine, 2698 lbf digging force, and 5.7 ft. digging depth

5.7 ft. Maximum Digging Depth

With its Kubota D722 engine, 2698 lbf digging force, and 5.7 ft. digging depth, this light yet powerful mini excavator by AHM is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.

Simplify routine check and maintenance with external hydraulic hoses on our mini digger

Easy Maintenance

Simplify routine check and maintenance with external hydraulic hoses on our mini digger. The easily accessible compartment ensures quick access to vital components, minimizing downtime and maximizing peak performance.

Compatible with Multiple Attachments

Compatible with Multiple Attachments

Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like augers, rippers, and mulcher heads (not incl.), making quick work of your concrete cutting and tree mulching.

Our small digger is made from sturdy steel for durable long-lasting service

Hardy Helper for Any Terrain

Our small digger is made from sturdy steel for durable long-lasting service, while the rubber tracks let the excavator move on various surfaces and offer exceptional traction without damaging cabro paving, indoor flooring, or pavement.

Hydraulic Joystick Control

Hydraulic Joystick Control

  • The hydraulic joystick on AHM mini excavators ensures smooth, efficient operation. It allows precise control of attachments with minimal effort, reducing fatigue during grading and backfilling.
  • Designed with the International Standards Organisation (ISO) operation mode, it ensures simplicity and ease of use, with minimal learning curve.
  • The cut and wear resistant rubber tracks

    The cut and wear resistant rubber tracks operate on manicured turf, rocky hills, and paved surfaces without damaging them.

  • Our mini digger comes with a 15.7 in. wide grading bucket

    Our mini digger comes with a 15.7 in. wide grading bucket, providing optimal efficiency for precise excavation and grading tasks on construction sites.

  • The digger boasts a sturdy steel construction for long lasting performance

    The digger boasts a sturdy steel construction for long lasting performance, while its open design gives you a 360 degree view from the operator's seat to get your job done right.

  • Effortlessly operate our user-friendly 1.1 ton mini excavator

    Effortlessly operate our user-friendly 1.1 ton mini excavator, complete with a comprehensive instruction manual.

EASY TO OPERATE

Mini Excavator Assembly & Setup by Green Acre Homestead

  • Specification

    • Material: Steel, Rubber
    • Engine Model: Kubota D722
    • Rated Power: 13.8 hp (10.1 kW)
    • Rated Speed: 2600 rpm
    • Fuel Tank Volume: 2.58 gal. (9.74 L)
    • Fuel Consumption: 0.26 gal./h (1 L/h)
    • Hydraulic Tank Volume: 3.4 gal. (12.7 L)
    • Overall Track Length: 48.5 in. (1230 mm)
    • Platform Ground Clearance: 16.2 in. (410 mm)
    • Bucket Volume: 0.88 ft3 (0.03 m3)
    • Bucket Width: 15.7 in. (400 mm)
    • Max. Bucket Digging Force: 2698 lbf (12 KN)
    • Overall Height: 7.3 ft. (2240 mm)
    • Max. Digging Depth: 69 in. (1750 mm)
    • Max. Dumping Height: 62.6 in. (1590 mm)
    • Max. Digging Radius: 120 in. (3050 mm)
    • Dozer Height: 12.6 in. (320 mm)
    • Dozer Depth: 7.8 in. (200 mm)
    • Max. Slope Grade: 30°
    • Net Weight: 1940 lb. (880 kg)
    • Warranty: 1 Year

  • Package List

    • 1x Mini Excavator
    • 1x Canopy
    • 1x Filter
    • 4x Pipe Clamps
    • 4x Grease Fittings
    • 1x Hose Nozzle
    • 1x Socket
    • 1x Grease Gun
    • 1x Hex Wrench
    • 1x Socket Lever
    • 1x Adjustable Wrench
    • 4x Wrenches
    • 1x Lubricating Grease
    • 1x Tool Box
    • 4x Adapters
    • 1x User Manual

Specs & Compare

Product Manual
AX-15 | 13.8 HP Kubota Engine Mini Excavator
AX-15
Key Specifications
Operating Weight
Max. Bucket Digging Force
Max. Digging Depth
Width
Tail Swing Type
Engine
Emissions Tier (EPA)
Model
Gross Power
Engine Fuel
Maximum Governed RPM
Rated Torque
Displacement
Stroke
Bore
Performance
Operating Weight
Weight Class
Max. Traveling Speed
Bucket Digging Force
Max. Digging Radius
Min. Swing Radius
Max. Digging Depth
Max Dump Height
Platform Ground Clearance
Bucket Volume
Bucket Width
Capacities
Fuel Tank Volume
Fuel Consumption
Fuel Type
Hydraulic System
Hydraulic Tank Volume
Hydraulic Oil
Main Pump Flow
Rated Pressure
Max. Pressure
Dimension
Overall Length in Travel Position
Width
Height with Operator Cab

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
John Scott

AX-15 | 13.8 HP Kubota Engine Mini Excavator

M
Michael Johnson
Worth the investment

Though I haven't yet put it through all its paces, I am already convinced that getting the mini-excavator equipped with the Kubota diesel engine was worth the extra investment. I've operated many machines powered by single cyllinder air-cooled engines and the noise and vibration are fatiguing. I have none of that with this machine The diesel runs smooth and is relatively quiet. I can operate it without hearing protection and there's no post-session soreness from vibration.
When stored without the canopy attached, the entire machine fits neatly in a 4'x 8' space I've set aside for it in my garage.

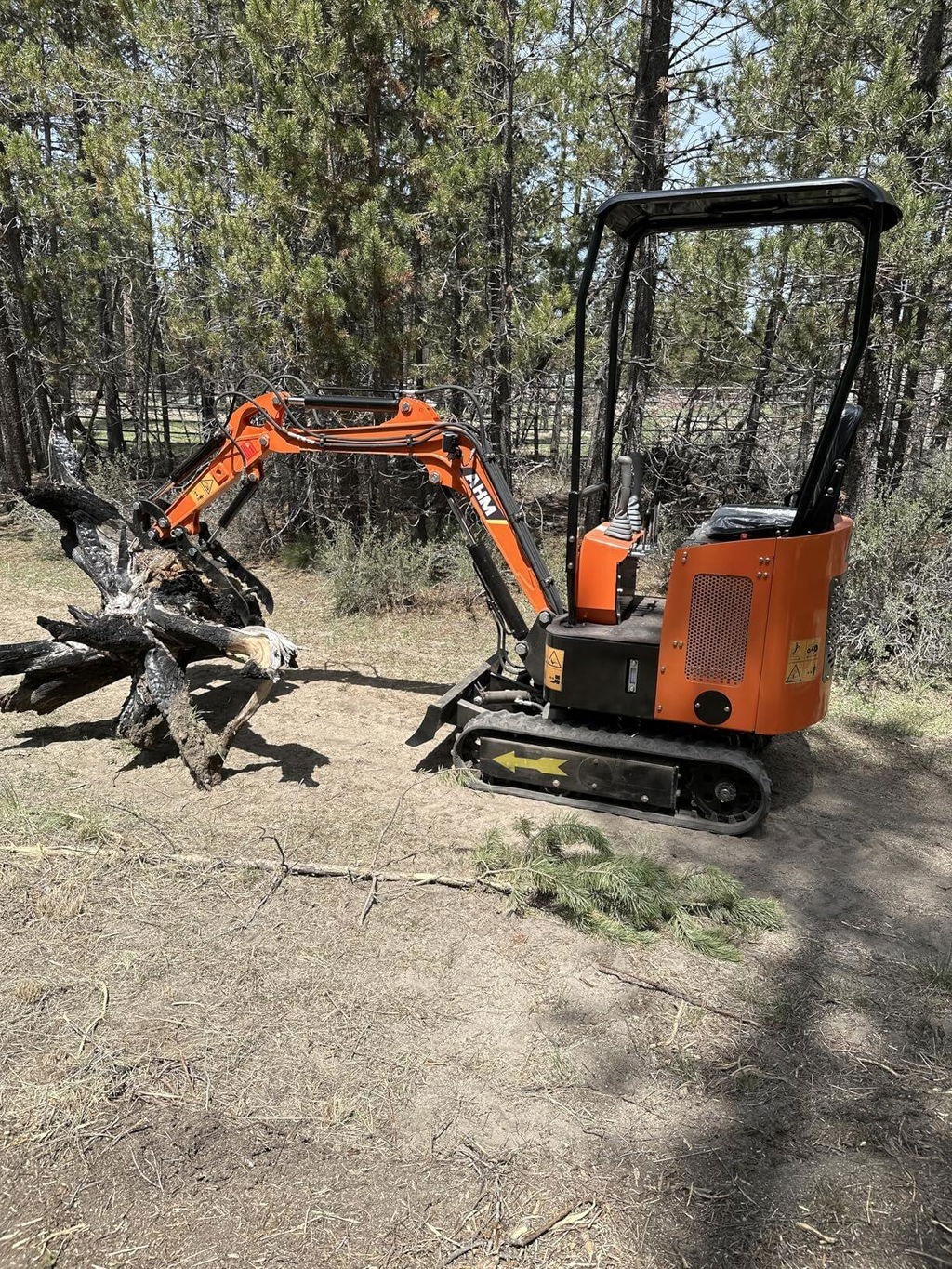

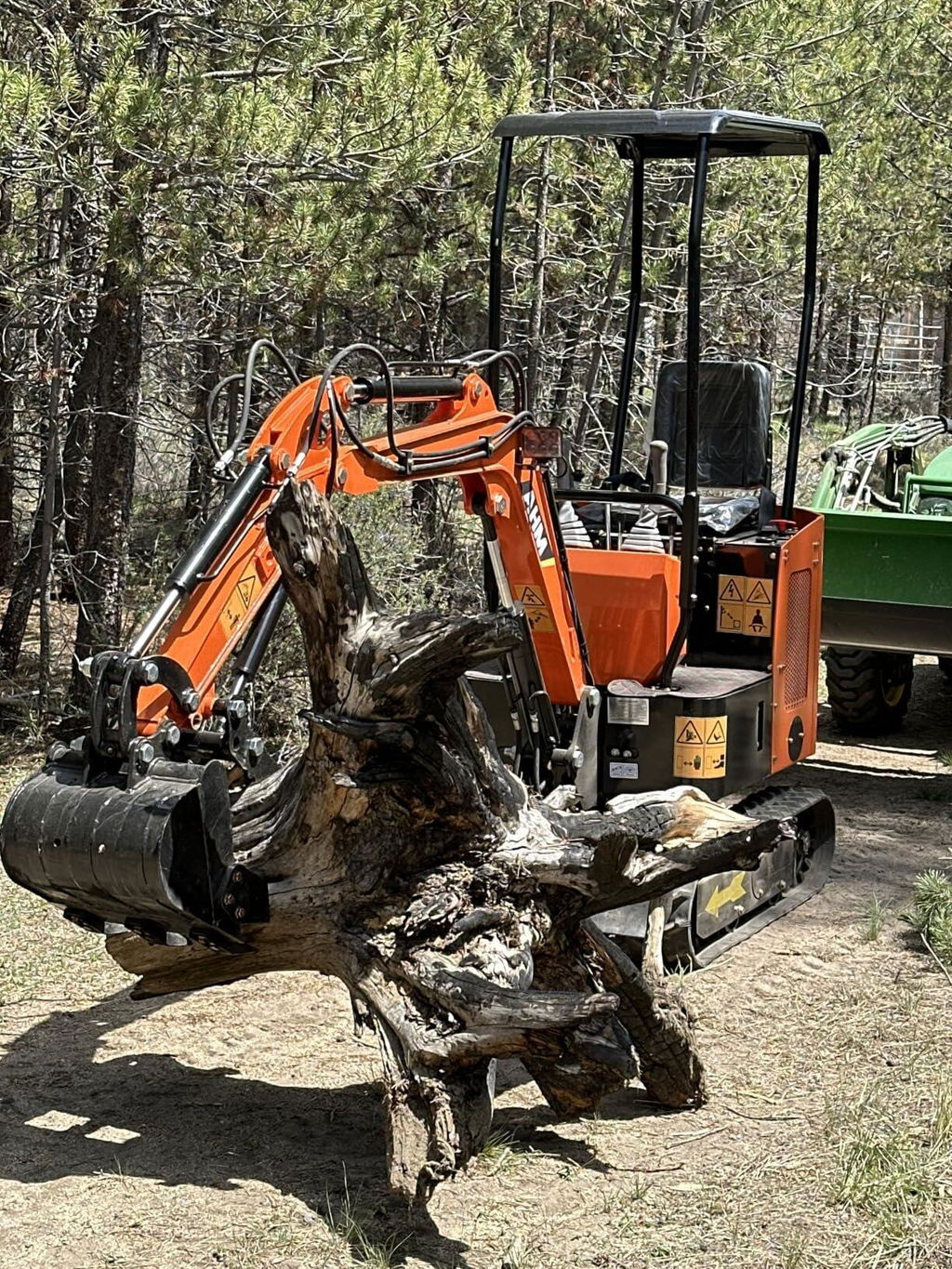

User picture
B
Bruce S.
5 stars!

Very happy with the excavator. So glad I upgraded to the Kubota engine. It's very quiet and smooth. Plenty of digging power! I would recommend this purchase to anyone considering it. 5 stars!

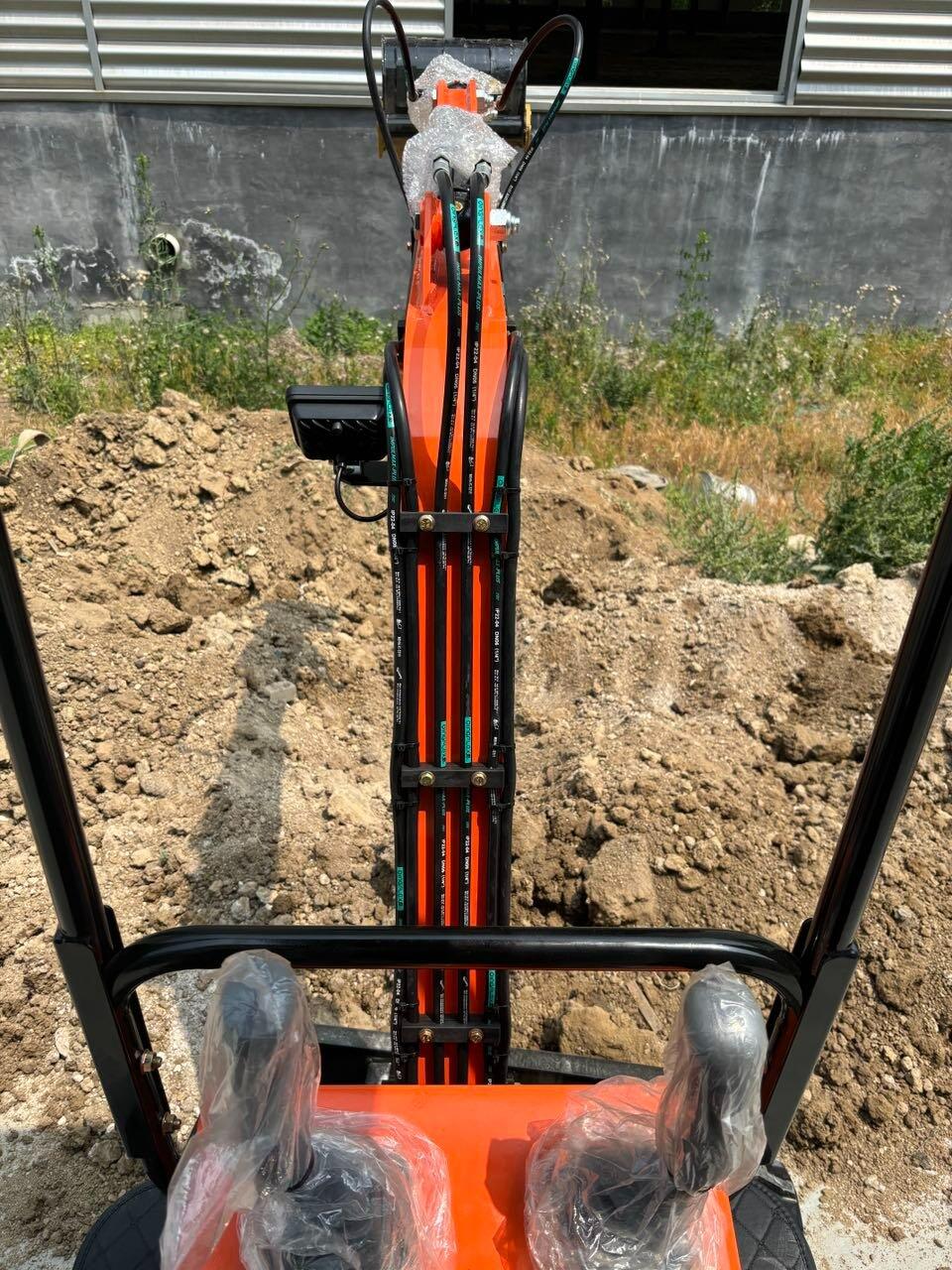

User picture User picture User picture User picture
T
Thomas Wilson
efficient

The price tag on this mini excavator with the Kubota Engine is unbeatable. Compared to other major brands, I saved not just a little, but literally half or more on the cost. It runs so quietly with incredible digging power! I would confidently recommend this!

R
Richard Davis
Great

Smooth operation is the hallmark of the 13.8 HP Kubota Engine in this mini excavator. The controls are responsive, and the power delivery is seamless.

12

FAQ

What is the engine model?

The engine model is Kubota Single Cylinder D722.

What is the engine cooling method?

The engine cooling method is water-cooled.

What type of fuel does it use?

It uses diesel fuel.

What is the capacity of the fuel tank and the fuel consumption rate?

The capacity of the fuel tank is 9.74 liters, and the fuel consumption rate is 1 liter per hour (1L/H).

Where is the fuel filling port located?

The fuel filling port is located at the bottom of the seat and at the right footstep position of the machine.

What accessories are included with the machine?

The machine comes with only one digging bucket and does not include any additional attachments.

What are the dimensions of the pin shaft/linkage rod?

The dimensions are M25*160.

What is the travel speed of the excavator?

The travel speed of this excavator is 3 km/h.

About AHM

We accumulated over a decade of expertise in the compact construction equipment industry before founding AHM. We believe in providing US-based customer service and technical support, so our skilled technicians and industry veterans with over 30 years of experience are here to resolve customer issues efficiently and effectively. Our mission at AHM: To make high-quality, compact equipment accessible to all users.
