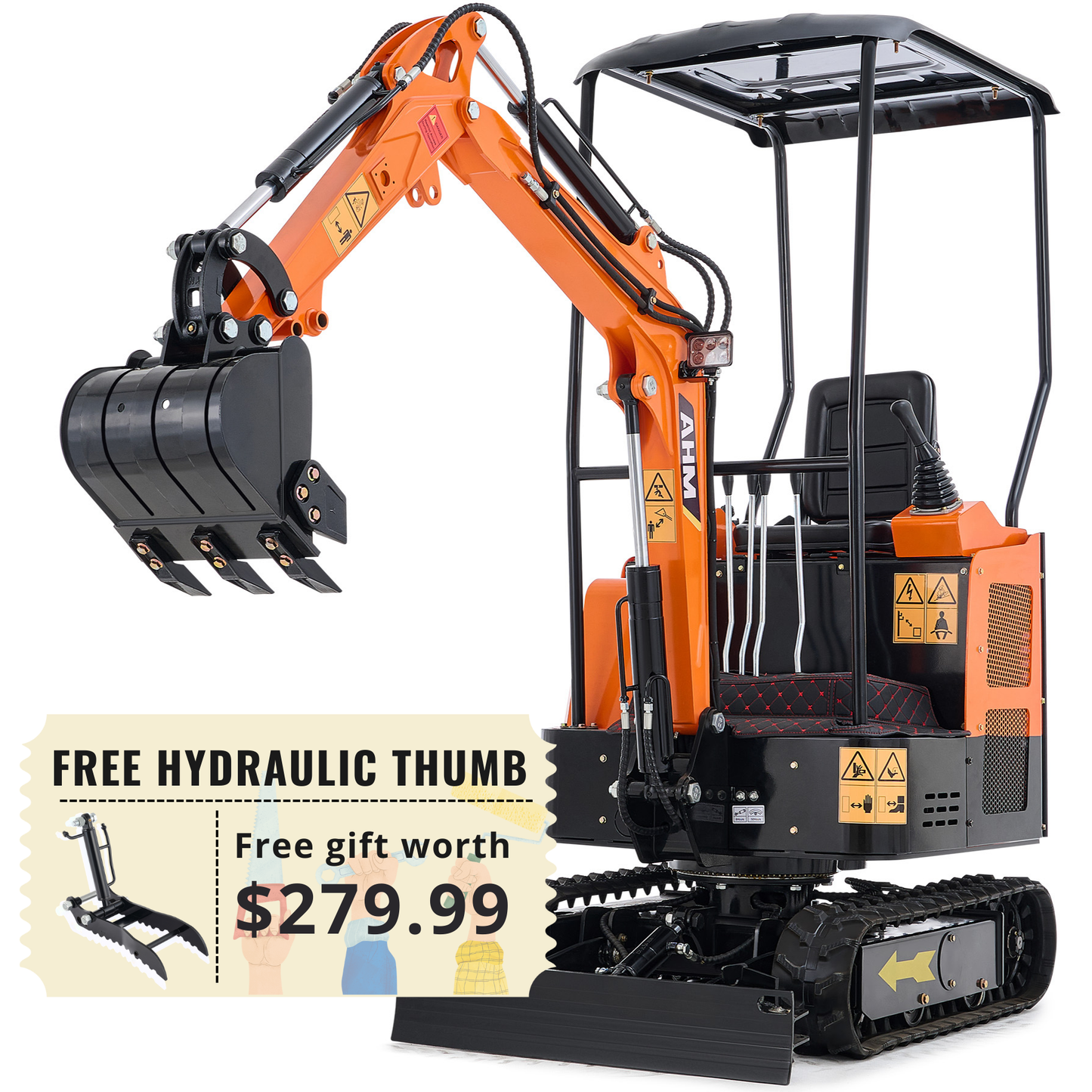

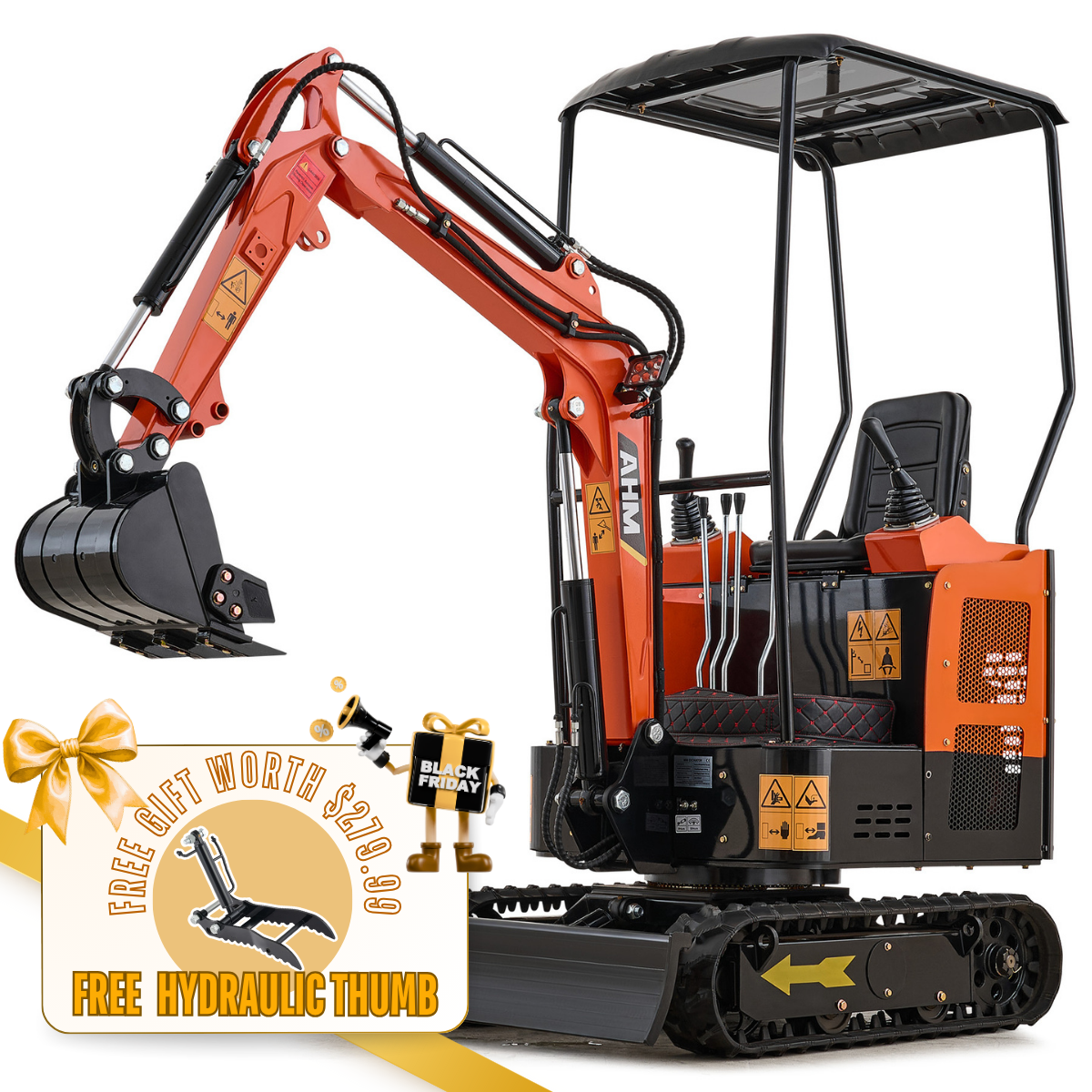

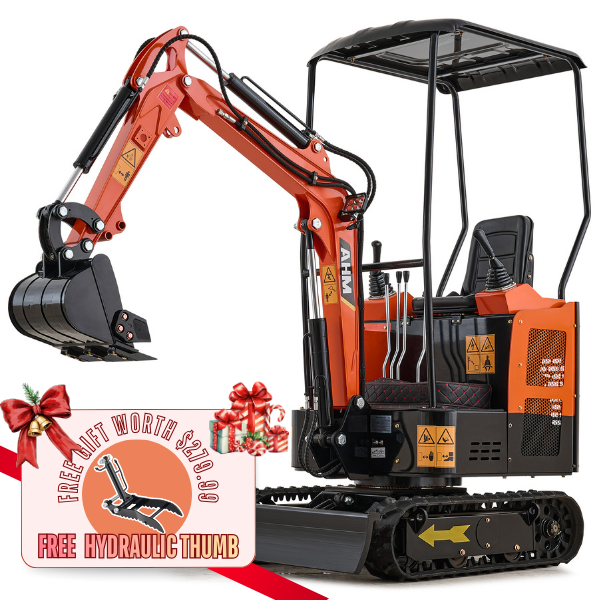

AX-16 | 23 HP 1.3 Ton B&S Engine Mini Excavator

AX-16 | 23 HP 1.3 Ton B&S Engine Mini Excavator

Regular price $8,599.99 USD
Regular price Sale price $8,599.99 USD
Sale Sold out
Mini Excavator Model
Bundle
Delivery Option
  • Free Shipping from US
  • 1-Year Warranty
  • Lifetime Tech Support
View full details

Born for Superior Performance

The AHM HT-16 23 HP Briggs & Stratton mini excavator delivers 70% more power for superior performance. With a 70.6-inch digging depth and a 9'6" radius, its 3'3" body excels in tight spaces. The reduced tail-swing design ensures minimal ground disturbance and easy transport. If you need a machine that prioritizes high-demand performance and transportability, this is the one.

  • Ensures reliable efficiency for everyday task

    6% Deeper Than Others

    Ensures reliable efficiency for everyday task

  • Get your work done faster and lift more, outpacing the competition

    70% Increase in Power

    Get your work done faster and lift more, outpacing the competition

  • with industry-low prices and minimal upkeep costs

    15% Lower Ownership Costs

    with industry-low prices and minimal upkeep costs

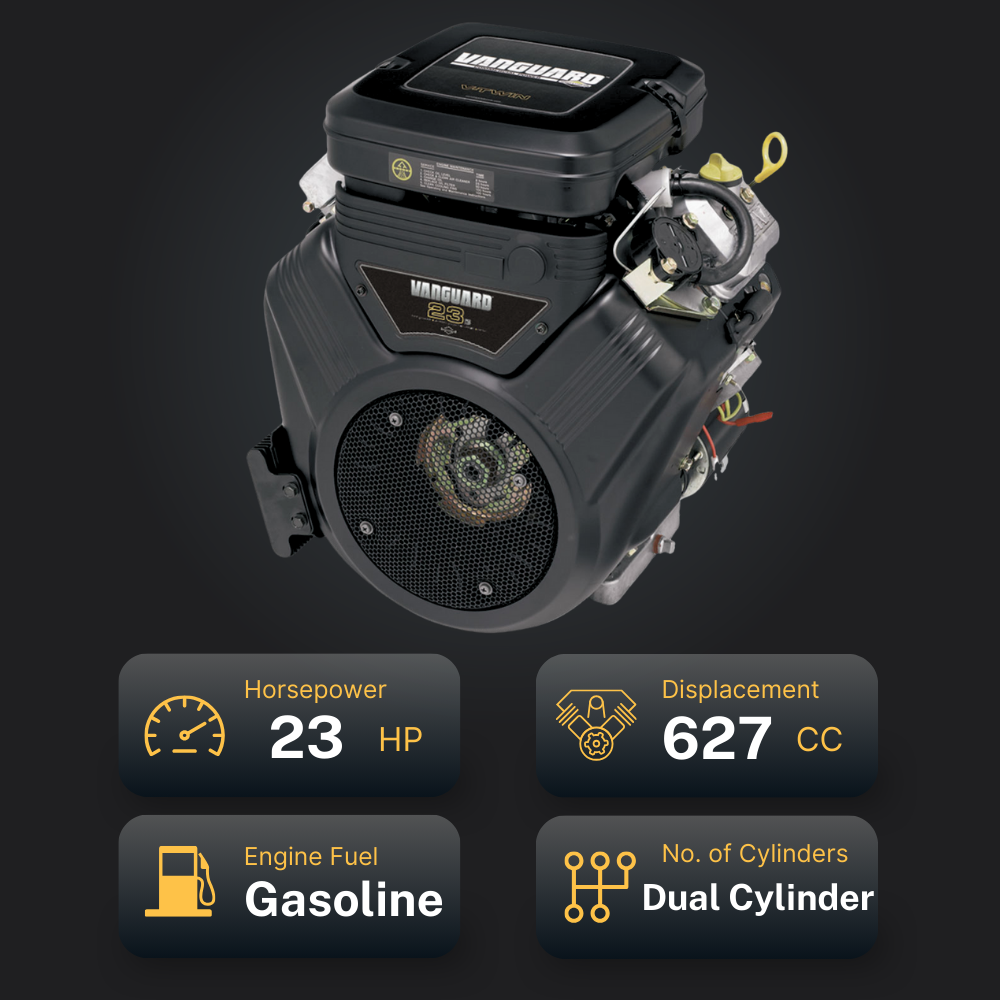

Briggs & Stratton Dual Cylinder 3864 engine

Double Enhanced Power and Improved Efficiency

Briggs & Stratton Efficient Engine

Equipped with a Briggs & Stratton Dual Cylinder 3864 engine, this compact powerhouse packs advanced technologies, delivering exceptional power and efficiency while being lighter than competitors. Boasting 70% more horsepower and 50% larger displacement than 13.5hp 420cc models, it ensures superior performance.

  • V-Twin OHV Technology: Offers better balance, increased power, and optimized performance for longer life and improved fuel economy.
  • Robust Construction: Features cast iron sleeve, balanced crankshaft, and full-pressure lubrication, ensuring longevity and wear resistance.

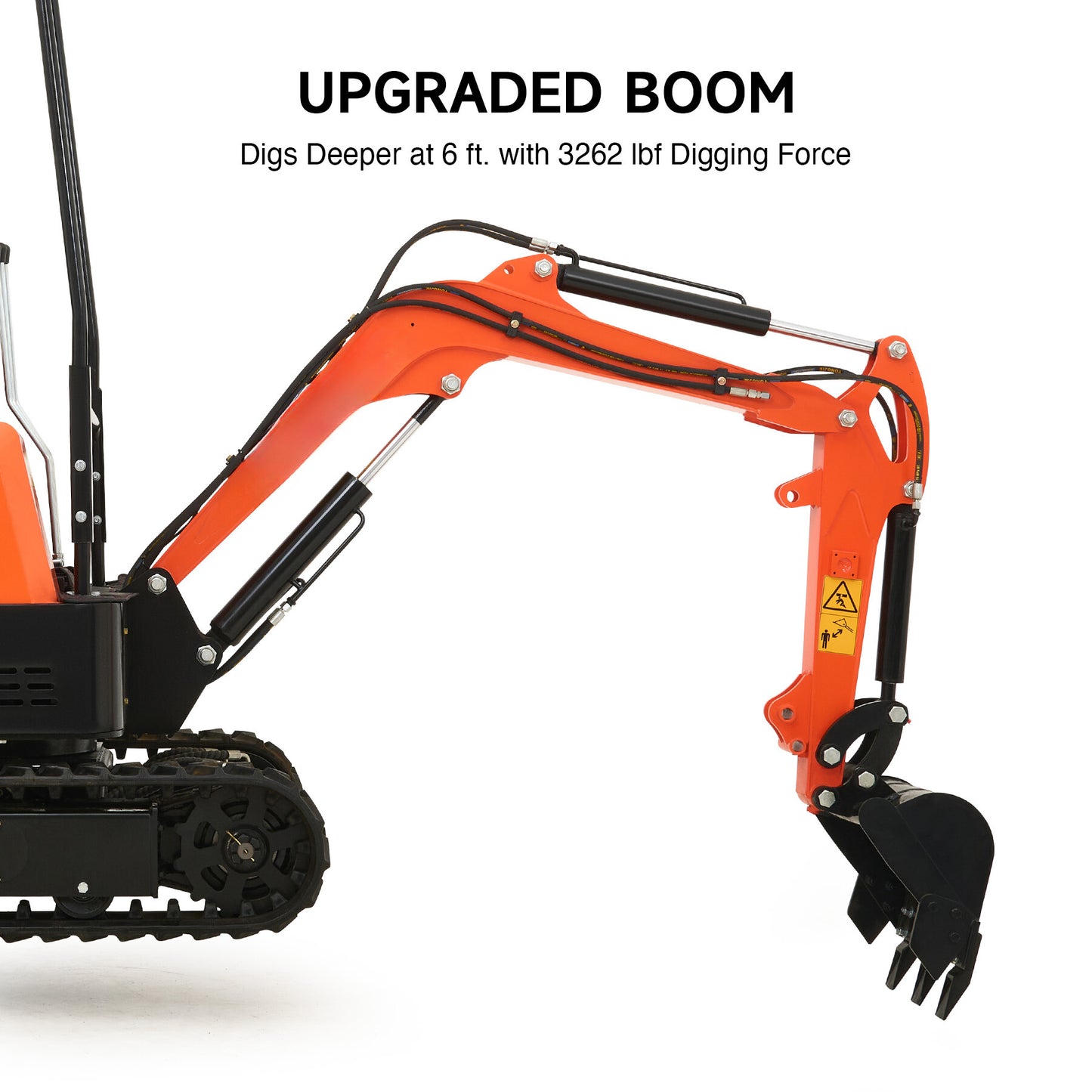

mini excavator 26% Increase in Digging Force

70.6 in. MAXIMUM DIGGING depth

26% Increase in Digging Force

Experience top performance with the AHM mini excavator, offering a 70.6-inch max digging depth and 3262 lbf digging force. Its advanced boom design excels in tough clay, rock, and compacted soil, making it the best choice for demanding jobs.

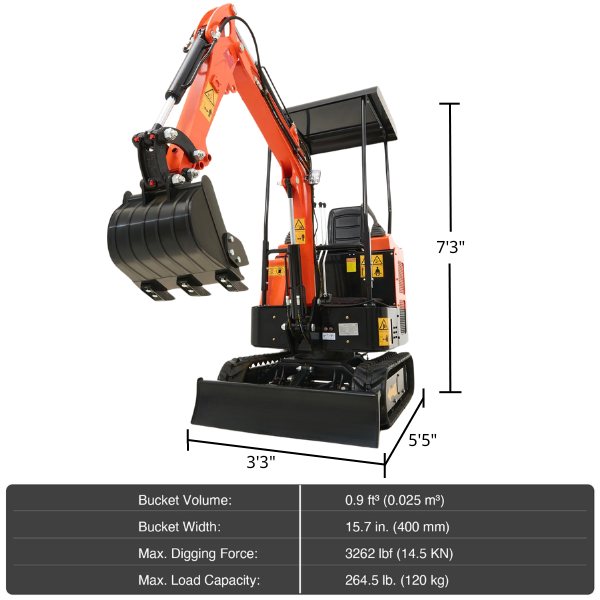

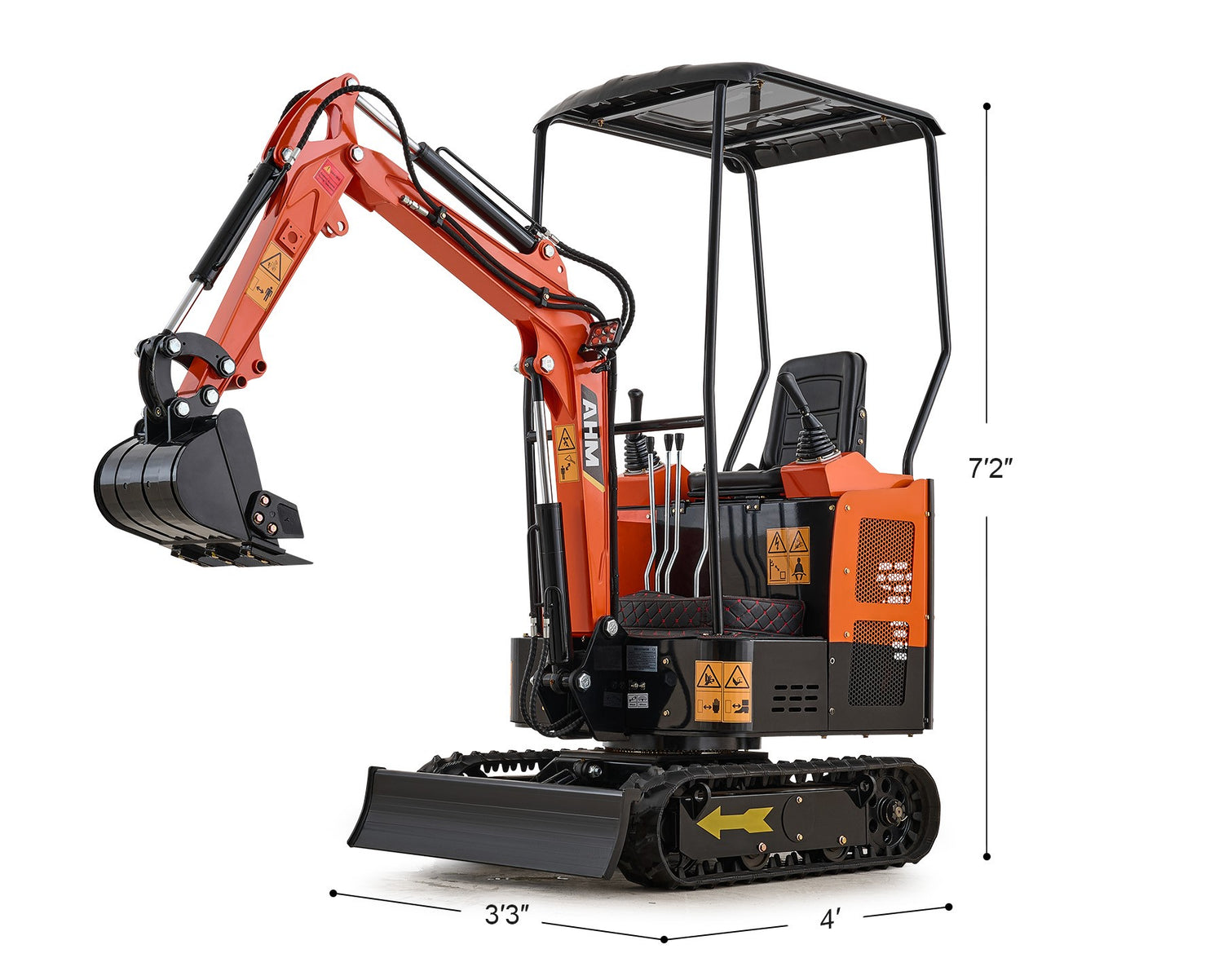

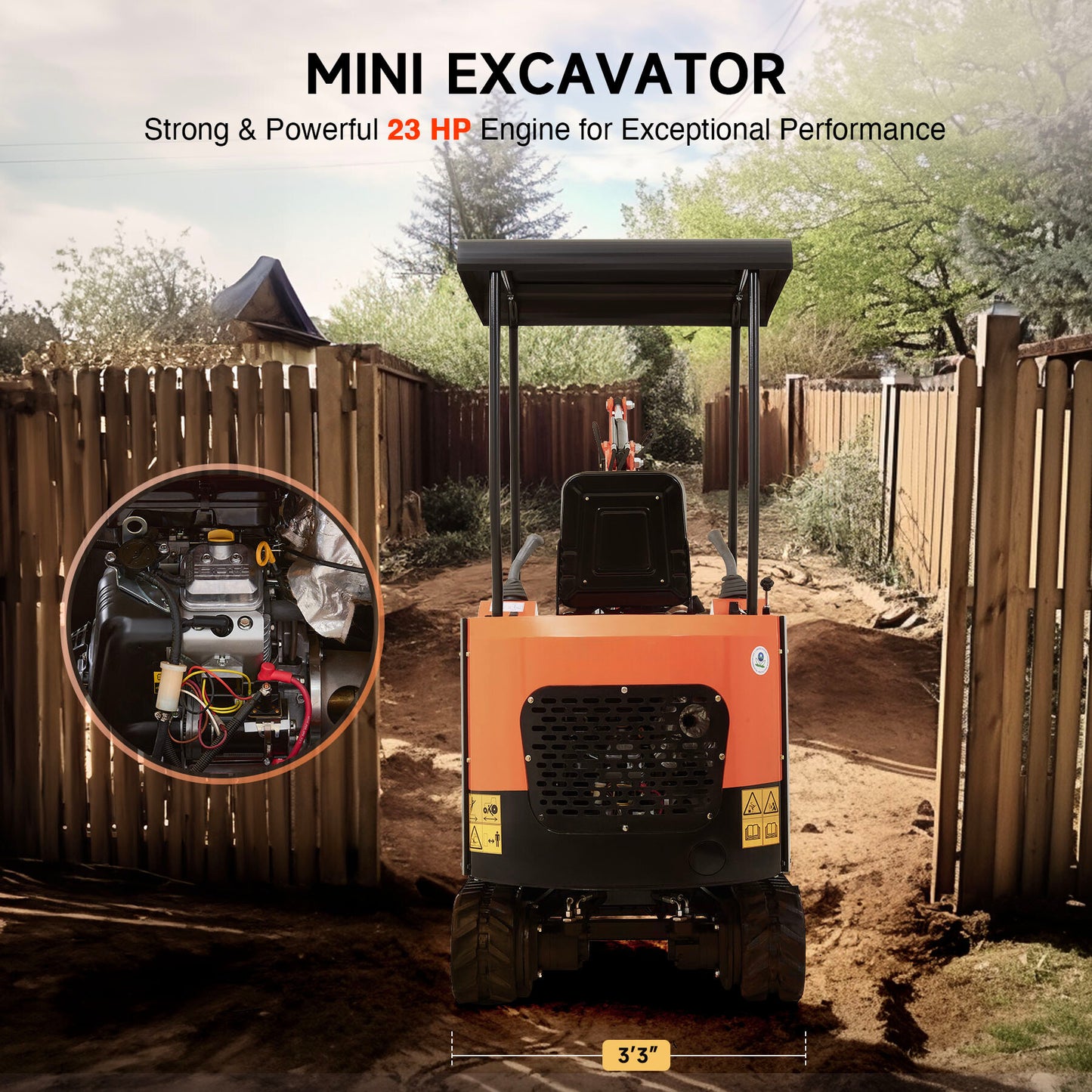

With a total width of just 3'3 ft, our excavator is easy to maneuver in tight urban and residential spaces

Big Performance in a Compact Design

With a total width of just 3'3", our excavator is easy to maneuver in tight urban and residential spaces. The reduced tailswing model minimizes the risk of property damage near buildings and obstacles due to its minimal swing radius.

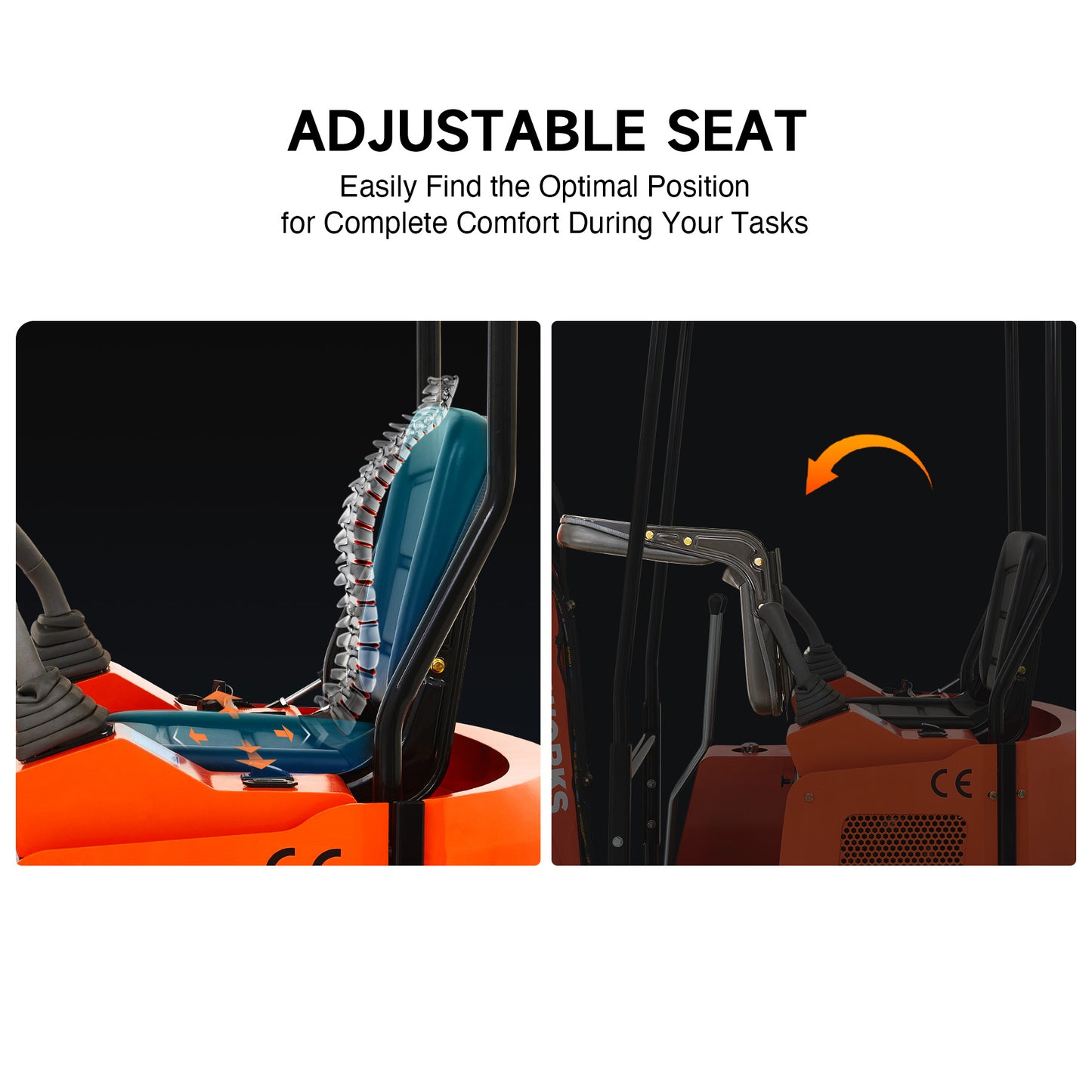

AHM small excavator keeps you comfortable all day long

ALL DAY COMFORT

  • Our small excavator keeps you comfortable all day long. It's designed with ergonomics in mind, so you've got a supportive backrest and a soft seat that'll make your day easier.
  • The control levers are right by your side, so no more awkward stretching or bending like those old-school machines. Just settle into the comfy seat, work the levers, and get your job done smoothly.

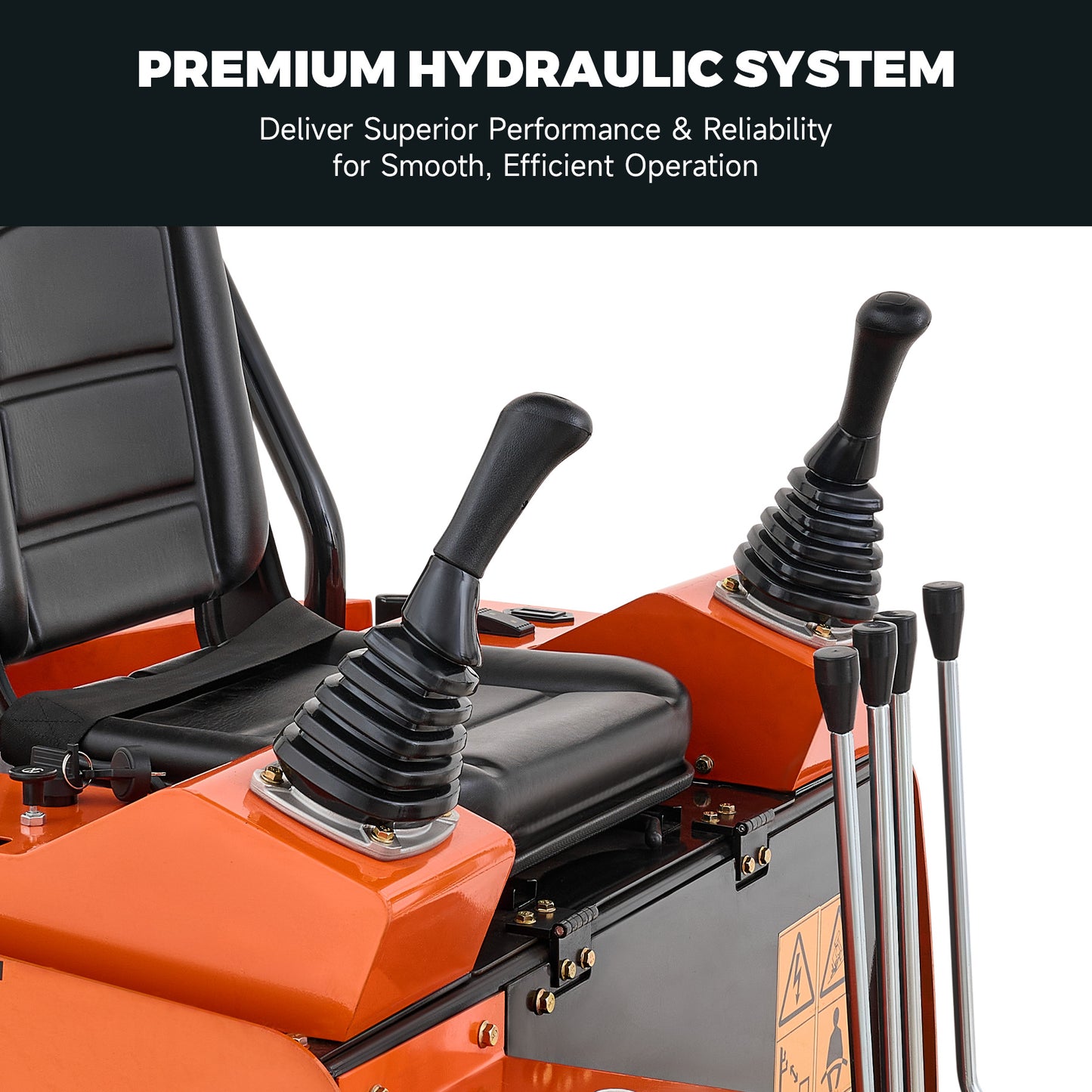

 Mini excavator features precise Hydraulic Joystick Controls

Hydraulic Joystick Control

  • This mini excavator features hydraulic joystick controls located conveniently on both sides of the seat, with a precise hydraulic system ensuring smooth, fluid operation for maximum efficiency.
  • Designed with the International Standards Organisation (ISO) operation mode, it ensures simplicity and ease of use, with minimal learning curve.
On this heavy-duty compact excavator, maintenance is quick and easy

Easy Maintenance

On this heavy-duty compact excavator, maintenance is quick and easy. Located conveniently at the rear, accessible maintenance ports allow effortless removal of guards and straightforward servicing of key components. These accessible points minimize downtime, ensuring your machine operates at peak performance consistently.

Adjustable wide Dozer Blade for mini excavators

Adjustable Dozer Blade

Our 1000mm wide blade stands out from competitors, offering superior coverage. It adjusts from -16cm to +16cm in height, ensuring versatility across different terrains. Features like Dig-to-Blade and dozer float make clean-up effortless.

Our small excavator arrives with hydraulic oil pre-filled for immediate use

Ready-to-Use Hydraulic System

  • Our small excavator arrives with hydraulic oil pre-filled for immediate use. Monitor oil levels and temperature effortlessly with the built-in meter, ensuring you have full control over the machine's status at all times.
  • Adding hydraulic oil is easy with the conveniently located next to the right-side excavator control lever. Clear labeling on the machine body ensures seamless operation.
Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like auger, hydraulic thumb, and hydraulic breaker hammer

Compatible with Multiple Attachments

  • Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like auger, hydraulic thumb, and hydraulic breaker hammer(not incl.).
  • From effortlessly demolishing tough materials to achieving precision in drilling tasks and securely handling debris, our tools excel in diverse environments.
Buy Excavator Attachments

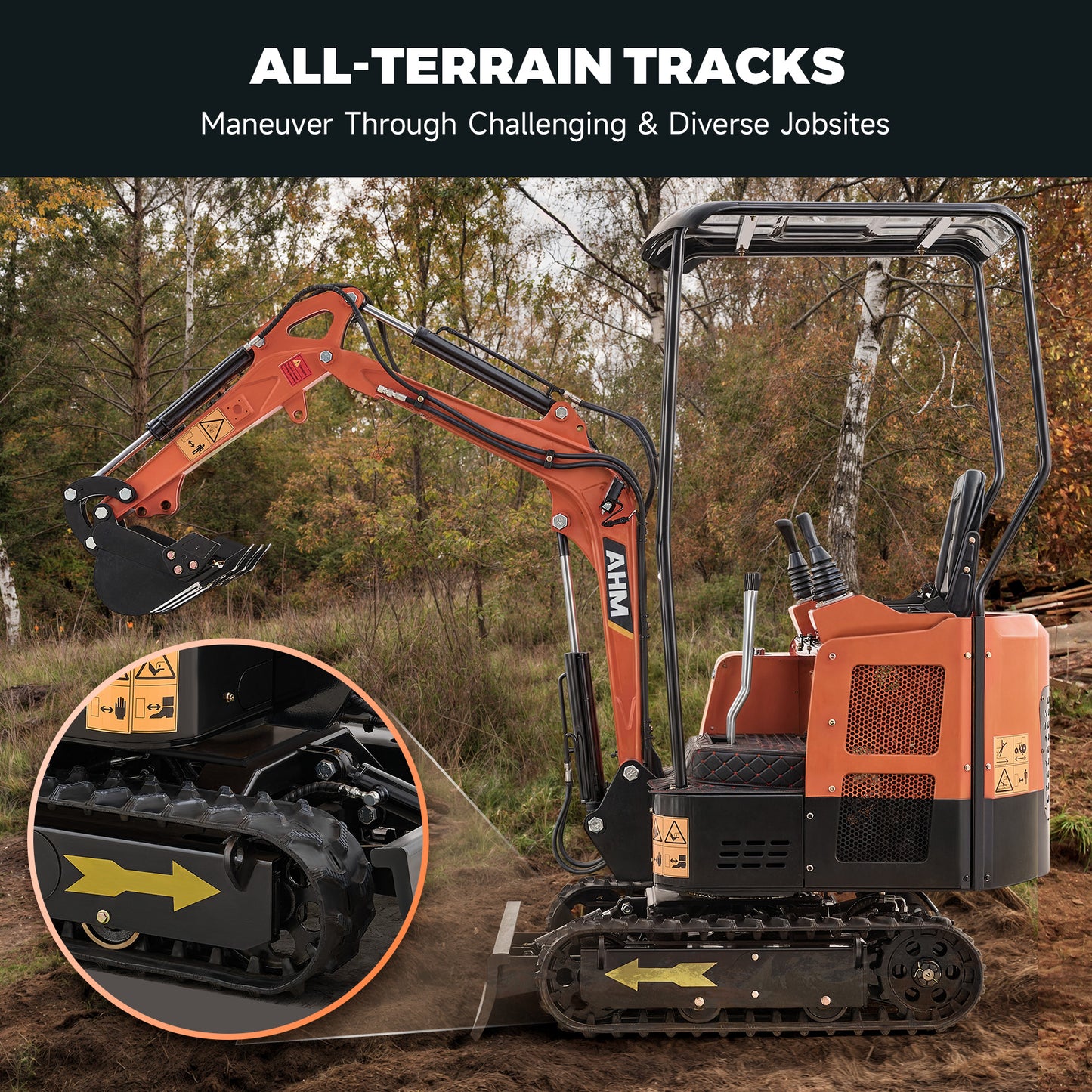

The improved track frame design reduces mud buildup and minimizes wear on the carrier rollers, enhancing the machine's durability.

Enhanced Durability

The improved track frame design reduces mud buildup and minimizes wear on the carrier rollers, enhancing the machine's durability. Forged structure at key boom joints, with optimized shape and thickness, alleviates stress and boosts longevity.

Top-Quality Workmanship

Top-Quality Workmanship

The machine's structural components are crafted by Japan Komatsu's trusted manufacturers. The entire vehicle undergoes shot blasting, pickling, phosphating, and spraying processes, enhancing paint adhesion for increased durability, resistance to fading, and a smoother finish.

  • AHM mini excavators keep you safe with work lights on the digging arm for better visibility, a seatbelt for security, a canopy for rain and sun protection, and waterproof, non-slip mats underfoot. Stay safe and focused on the job.

    Your Safety is Our Priority

    AHM mini excavators keep you safe with work lights on the digging arm for better visibility, a seatbelt for security, a canopy for rain and sun protection, and waterproof, non-slip mats underfoot. Stay safe and focused on the job.

  • Our small digger is made from sturdy steel for durable long-lasting service

    Hardy Helper for Any Terrain

    Our small digger is made from sturdy steel for durable long-lasting service, while the rubber tracks let the excavator move on various surfaces and offer exceptional traction without damaging cabro paving, indoor flooring, or pavement.

23 HP 1.3 Ton B&S Engine Mini Excavator

Dig A Waterline To The Barn by Wallace Farm and Sawmill

Specs & Compare

Product Manual

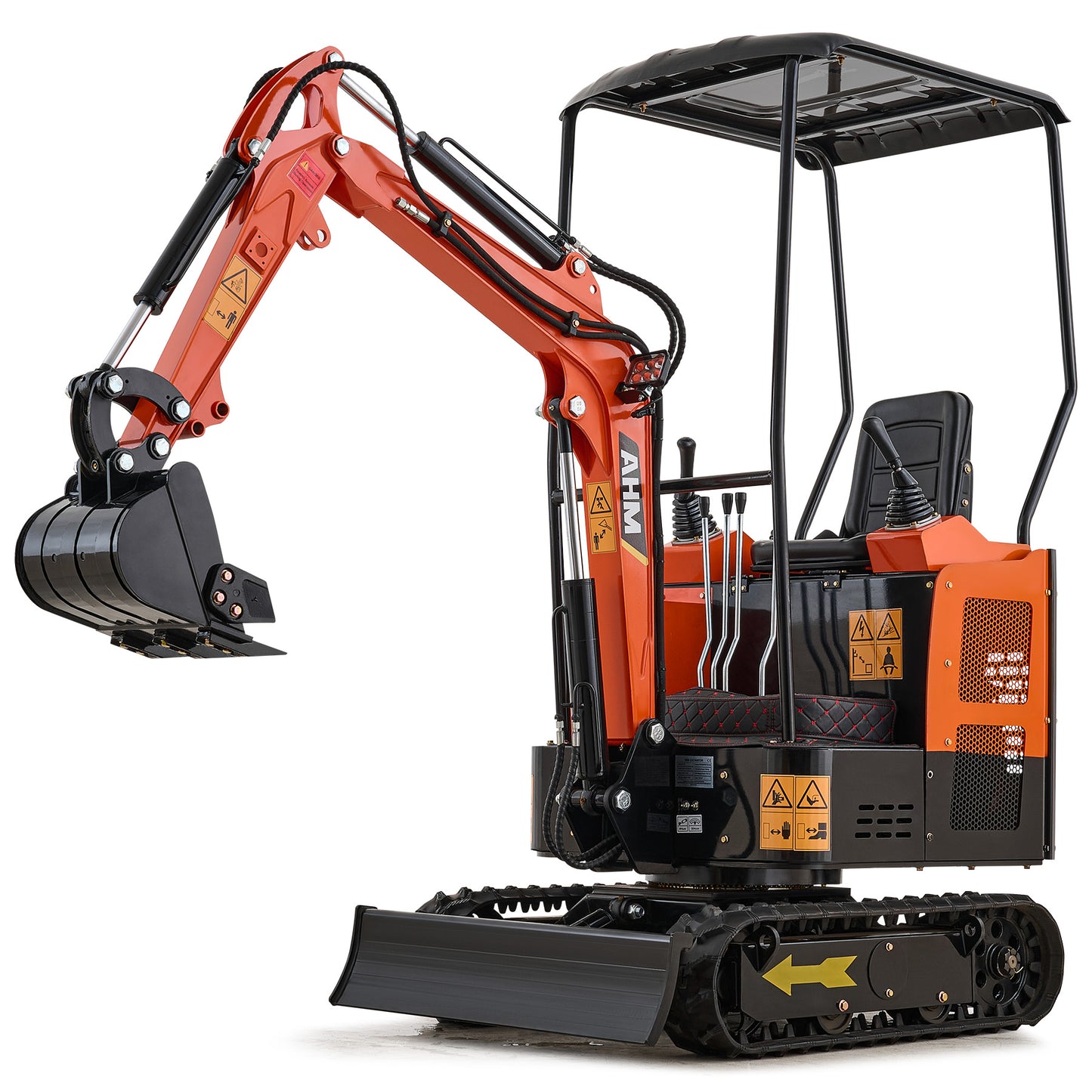

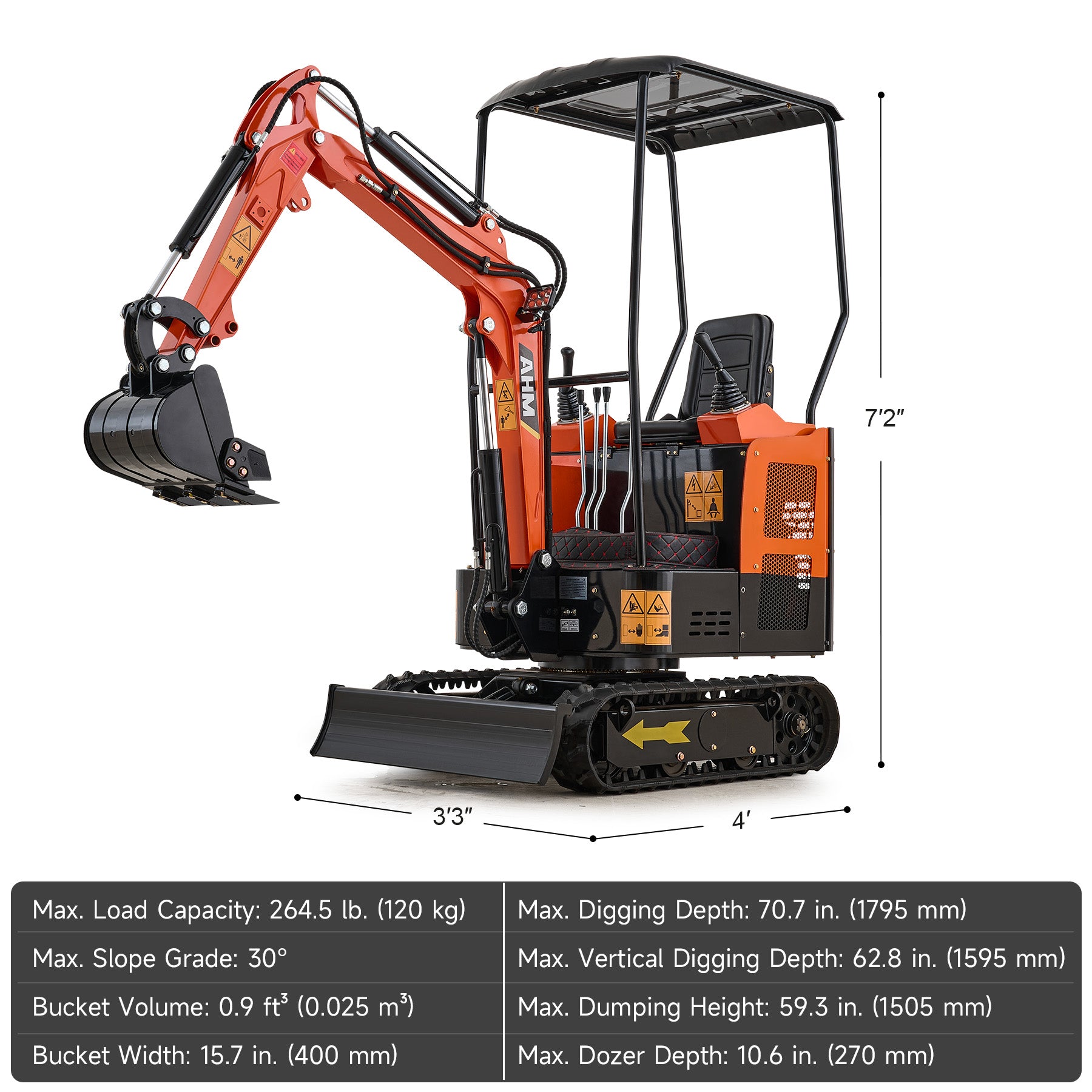

23 hp Mini Excavator 1 Ton Mini Crawler Excavator w 3262 lbf Digging Force
HT-16
Key Specifications
Operating Weight
Max. Bucket Digging Force
Max. Digging Depth
Width
Tail Swing Type
Engine
Emissions Tier (EPA)
Model
Gross Power
Engine Fuel
Maximum Governed RPM
Rated Torque
Displacement
Stroke
Bore
Performance
Operating Weight
Weight Class
Max. Traveling Speed
Bucket Digging Force
Max. Digging Radius
Min. Swing Radius
Max. Digging Depth
Max Dump Height
Platform Ground Clearance
Bucket Volume
Bucket Width
Capacities
Fuel Tank Volume
Fuel Consumption
Fuel Type
Hydraulic System
Hydraulic Tank Volume
Hydraulic Oil
Main Pump Flow
Rated Pressure
Max. Pressure
Dimension
Overall Length in Travel Position
Width
Height with Operator Cab

FAQ

What is the engine cooling method?

The engine cooling method is air-cooled.

What is the fuel type?

The fuel type is gasoline with an octane rating of 90 or higher.

What is the capacity of the fuel tank and the fuel consumption rate?

The capacity of the fuel tank is 8 liters, and the fuel consumption rate is 1.5 liter per hour (1.5 L/H).

Where is the fuel filling port located?

The fuel filling port is located at the bottom of the seat.

What is the engine model?

The engine model is BRIGGS & STRATTON Dual Cylinder 3864.

What accessories are included with the machine?

The machine comes with only one digging bucket and does not include any additional attachments.

What are the dimensions of the pin shaft/linkage rod?

The dimensions are M25*160.

What is the travel speed of the excavator?

The travel speed of this excavator is 3 km/h.

Customer Reviews

Based on 5 reviews
60%
(3)
40%
(2)
0%
(0)
0%
(0)
0%
(0)
B
Brett Meyers
Nice machine

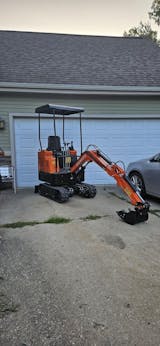

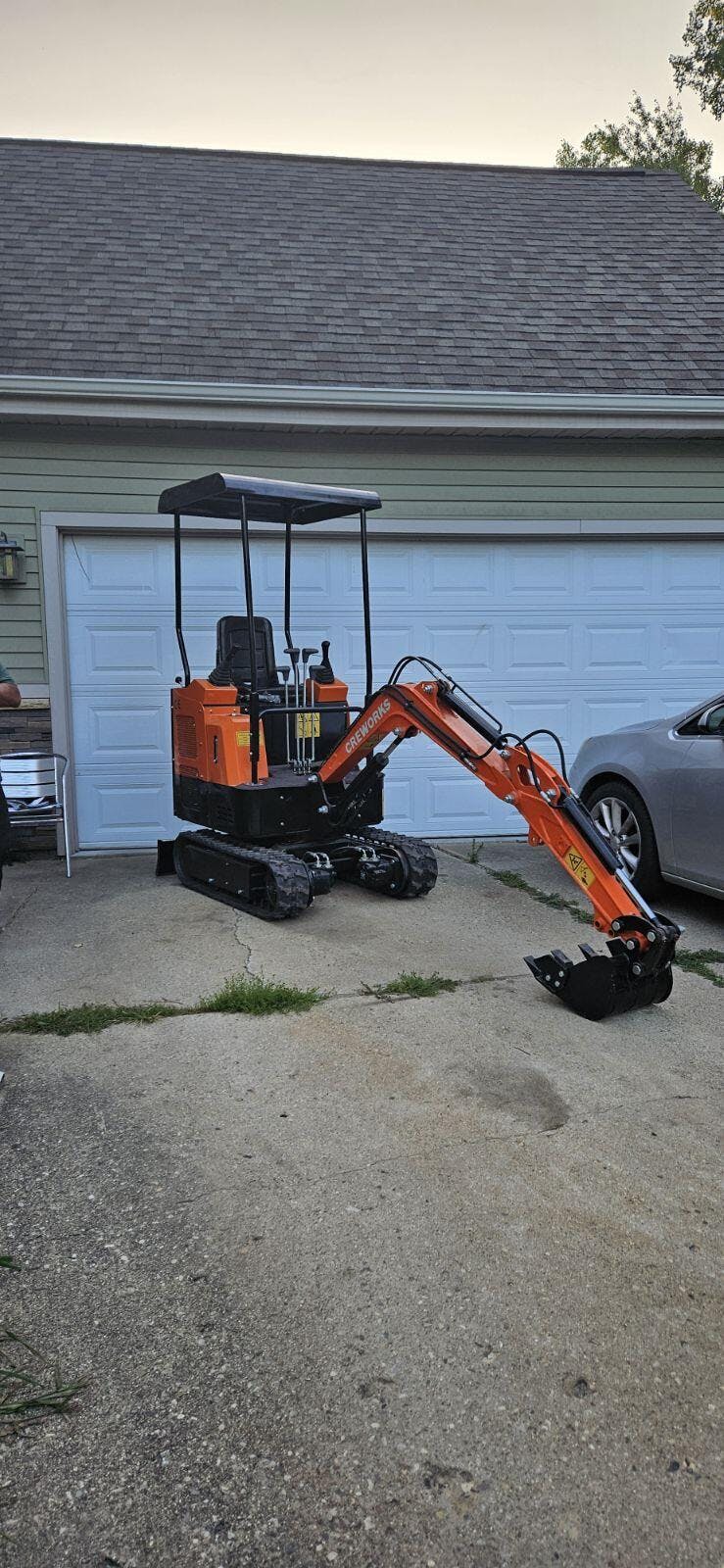

I used this machine for about 45 minutes and had a issue with a hydraulic hose that had a small pinhole in it. It wasn't a defect from assembly but just a bad hose. I called and emailed ahm and they were outstanding on helping me get my machine back in action. Great customer service. As for the machine the engine is very smooth and plenty of power. The hydraulics are smooth also. I have no complaints of the machine except the hose which was a bizarre situation.
