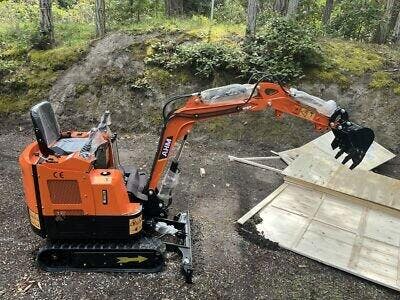

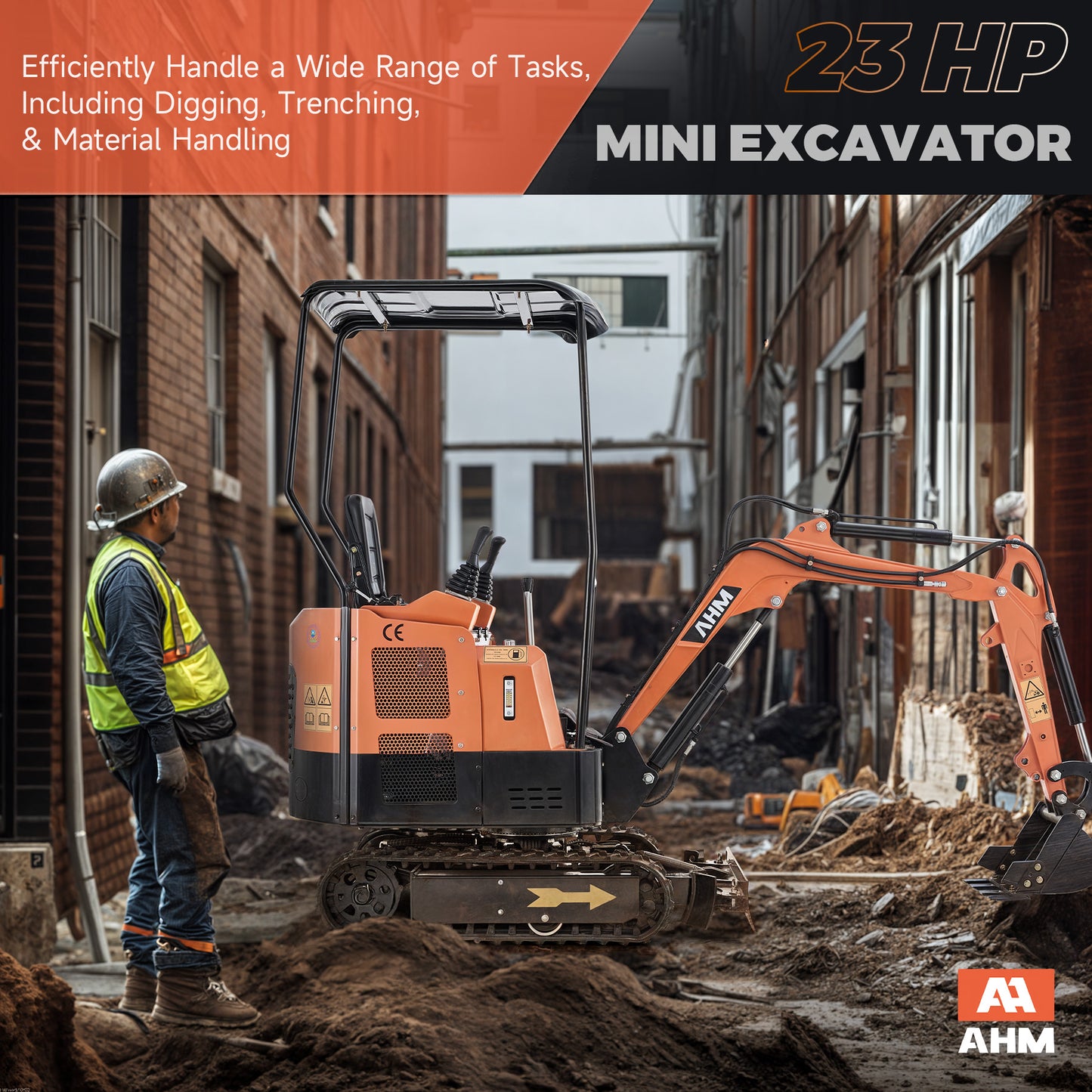

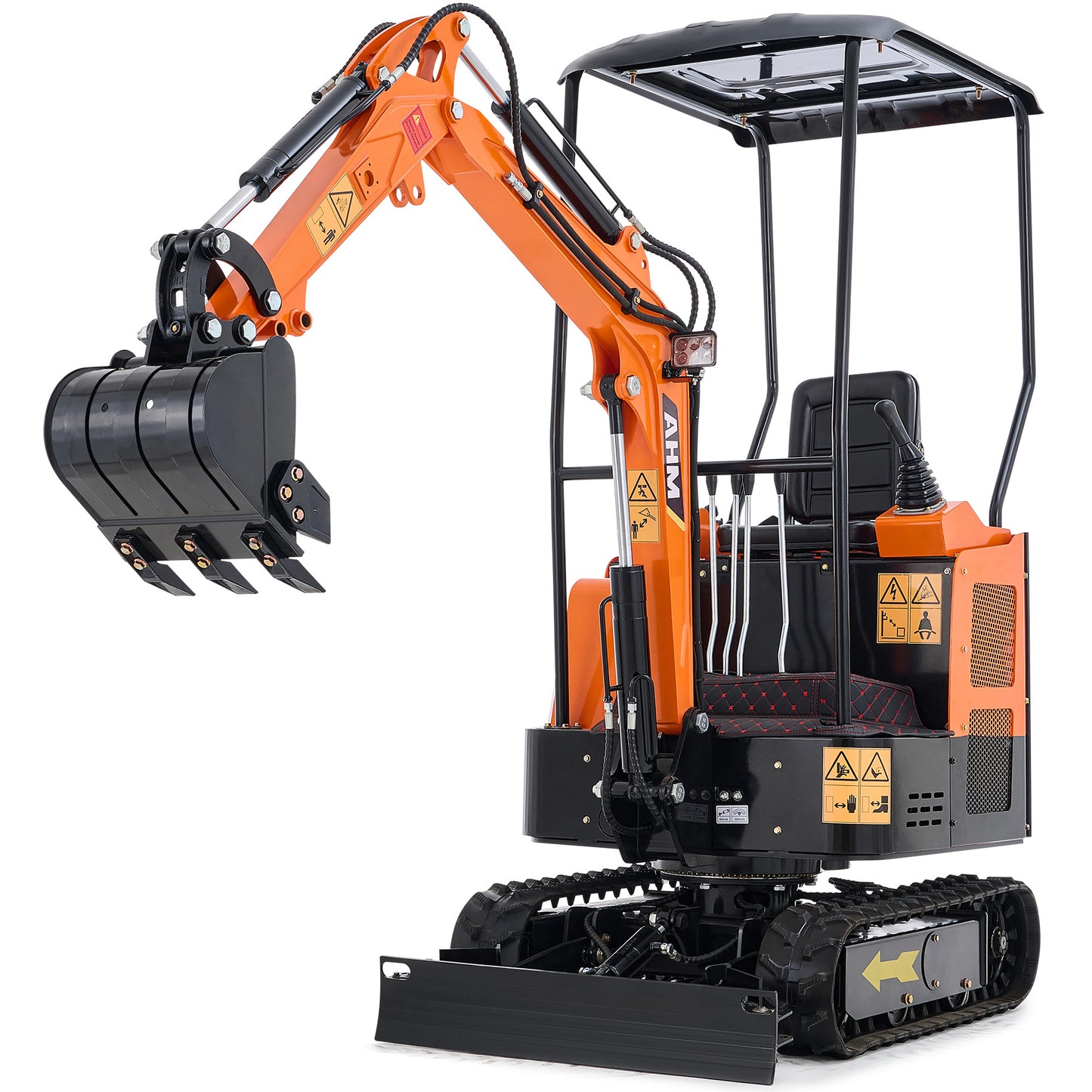

AX-16S | 23 HP B&S Engine Mini Excavator with Retractable Undercarriage

AX-16S | 23 HP B&S Engine Mini Excavator with Retractable Undercarriage

$9,199.99 USD
$9,399.99 USD $9,199.99 USD
Sale Sold out
Mini Excavator Model
Standard Bucket Included
Delivery Option
  • Free Shipping from US
  • 1-Year Warranty
  • Lifetime Tech Support

Shipping is free, but UNLOADING SERVICE NOT INCLUDED. Please review our shipping policy before placing your order. Click here for details
View full details

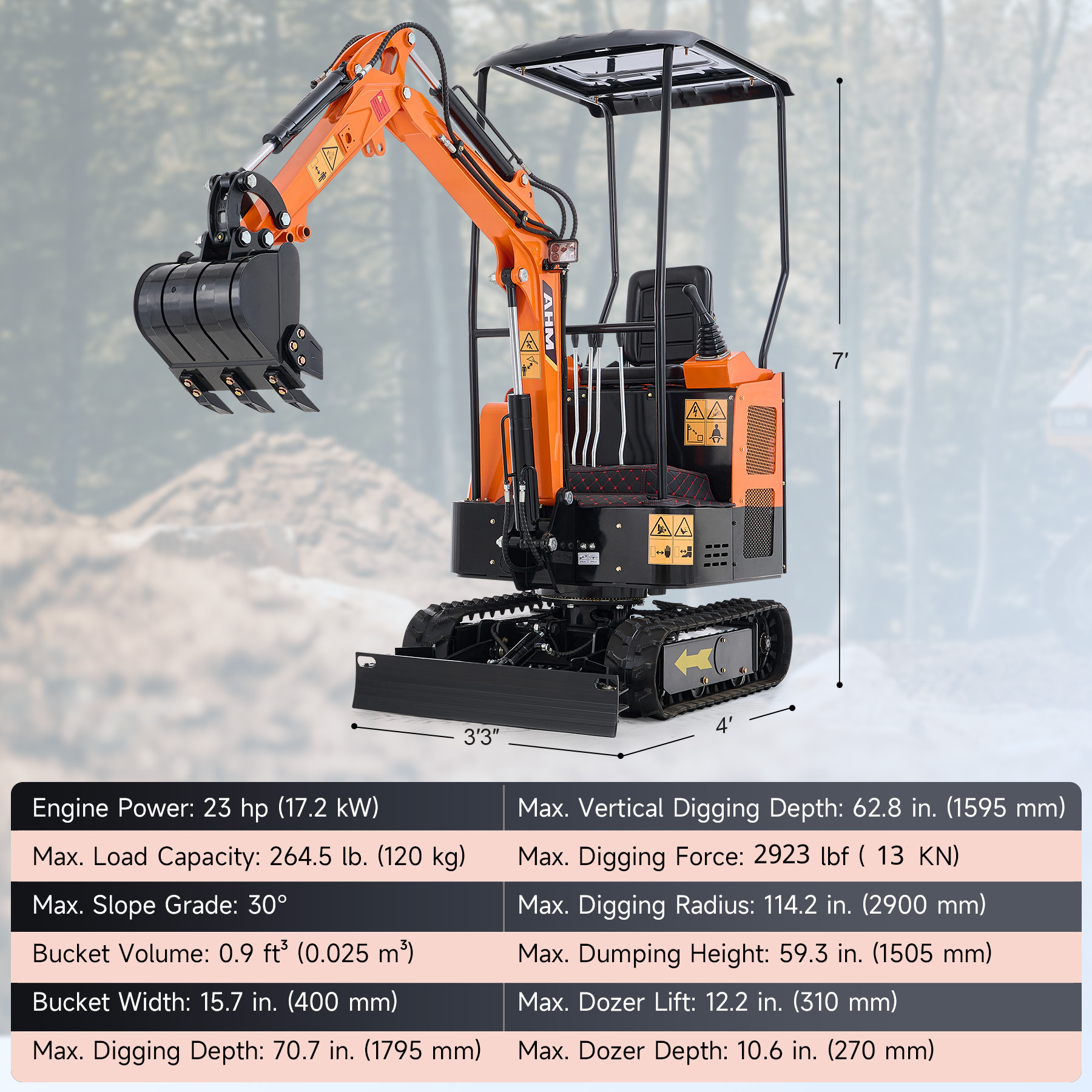

Retractable Undercarriage for Enhanced Stability

The AHM AX-16S 23 HP B&S gasoline mini excavator features a retractable undercarriage that adjusts from 3'3" to 3'11" for enhanced stability and performance. This provides better balance when handling heavier loads and allows for more efficient digging and lifting. With a 71-inch digging depth, 114-inch max digging radius, and a compact width for easy maneuvering, it excels in tight spaces. It lifts up to 265 lb and minimizes site disruption with its reduced tail-swing. The retractable undercarriage also makes it ideal for accessing confined job sites.

  • Ensures reliable efficiency for everyday task

    Operating Weight

    2290 lb

  • Max. Dig Depth

    71 in.

  • Get your work done faster and lift more, outpacing the competition

    Horsepower

    23 HP

  • Lifting Capacity

    265 lb
Briggs & Stratton Dual Cylinder 3864 engine

Double Enhanced Power and Improved Efficiency

Briggs & Stratton Efficient Engine

Equipped with a Briggs & Stratton Dual Cylinder 3864 engine, this compact powerhouse packs advanced technologies, delivering exceptional power and efficiency while being lighter than competitors. Boasting 70% more horsepower and 50% larger displacement than 13.5hp 420cc models, it ensures superior performance.

  • V-Twin OHV Technology: Offers better balance, increased power, and optimized performance for longer life and improved fuel economy.
  • Robust Construction: Features cast iron sleeve, balanced crankshaft, and full-pressure lubrication, ensuring longevity and wear resistance.

71 in. MAXIMUM DIGGING depth

26% Increase in Digging Force

  • Experience top performance with the AX-16S, featuring a 71-inch max digging depth and 3260 lbf of digging force. Whether tackling tough clay, rock, or compacted soil, its advanced boom design ensures smooth and efficient operation.
  • With a max digging radius of 114.2 inches and a max dumping height of 59.3 inches, the AX-16S is built to handle demanding tasks with ease.

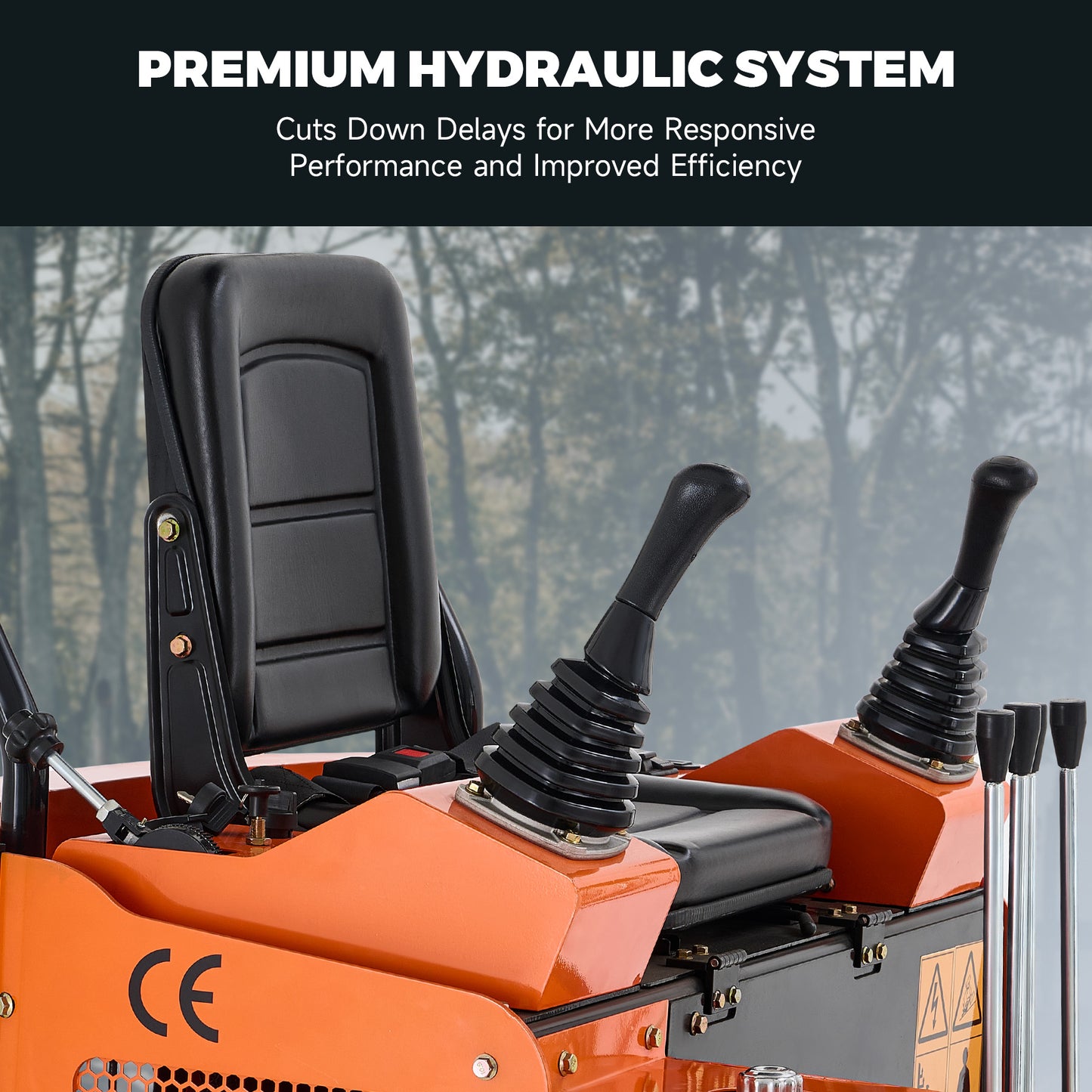

Precise Hydraulic Pilot Control System

  • The precise hydraulic pilot control system outperforms cheap mechanical controls. When you stop the joystick, the machine responds immediately with smooth, precise action. Unlike the delay in traditional mechanical systems, pilot control ensures smoother, safer operation while reducing wear and extending the machine’s lifespan.

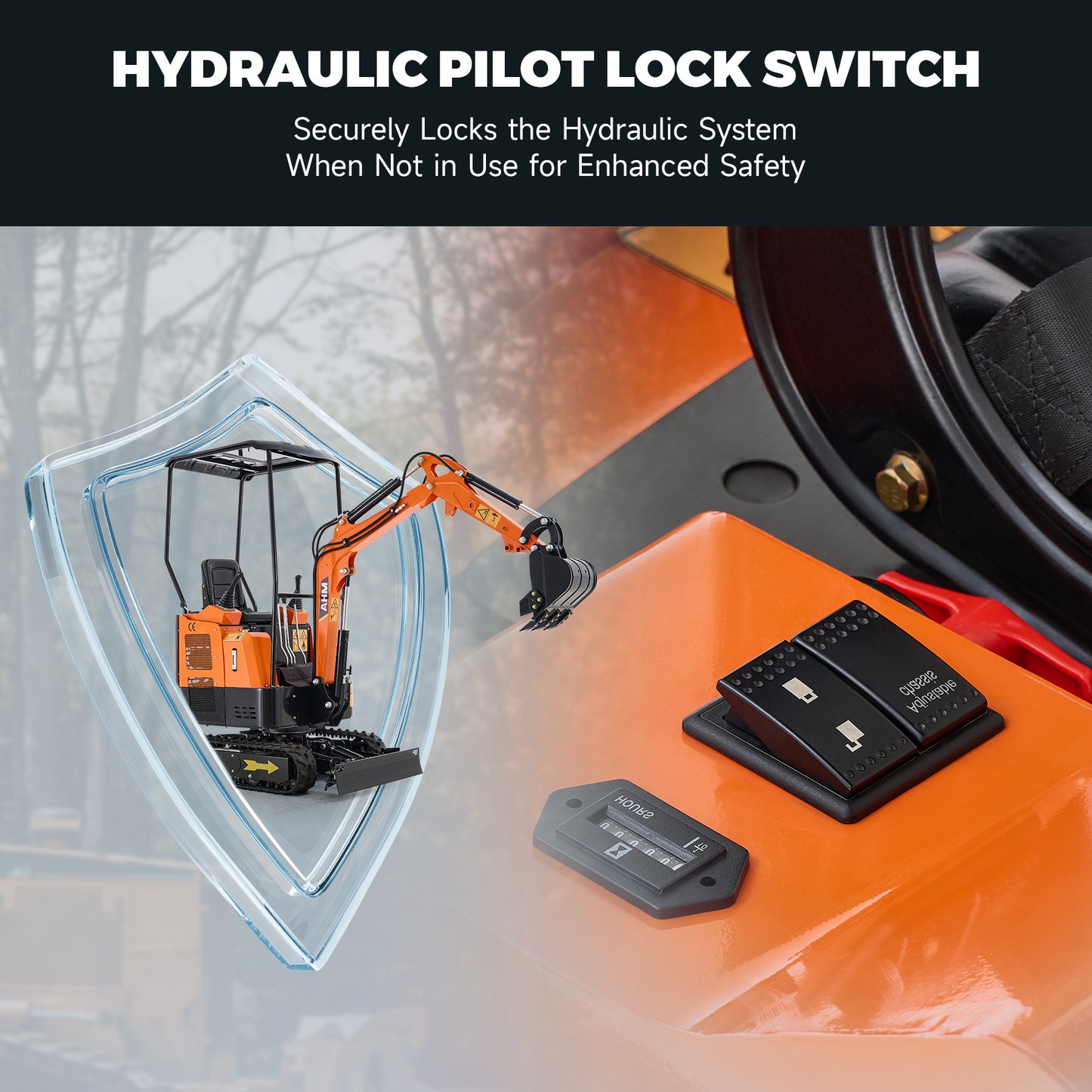

  • In addition, the hydraulic pilot lock switch adds an extra layer of protection, preventing accidental machine movement by locking the hydraulic system when idle, ensuring safety during transport or while not in use.

Adjustable Undercarriage

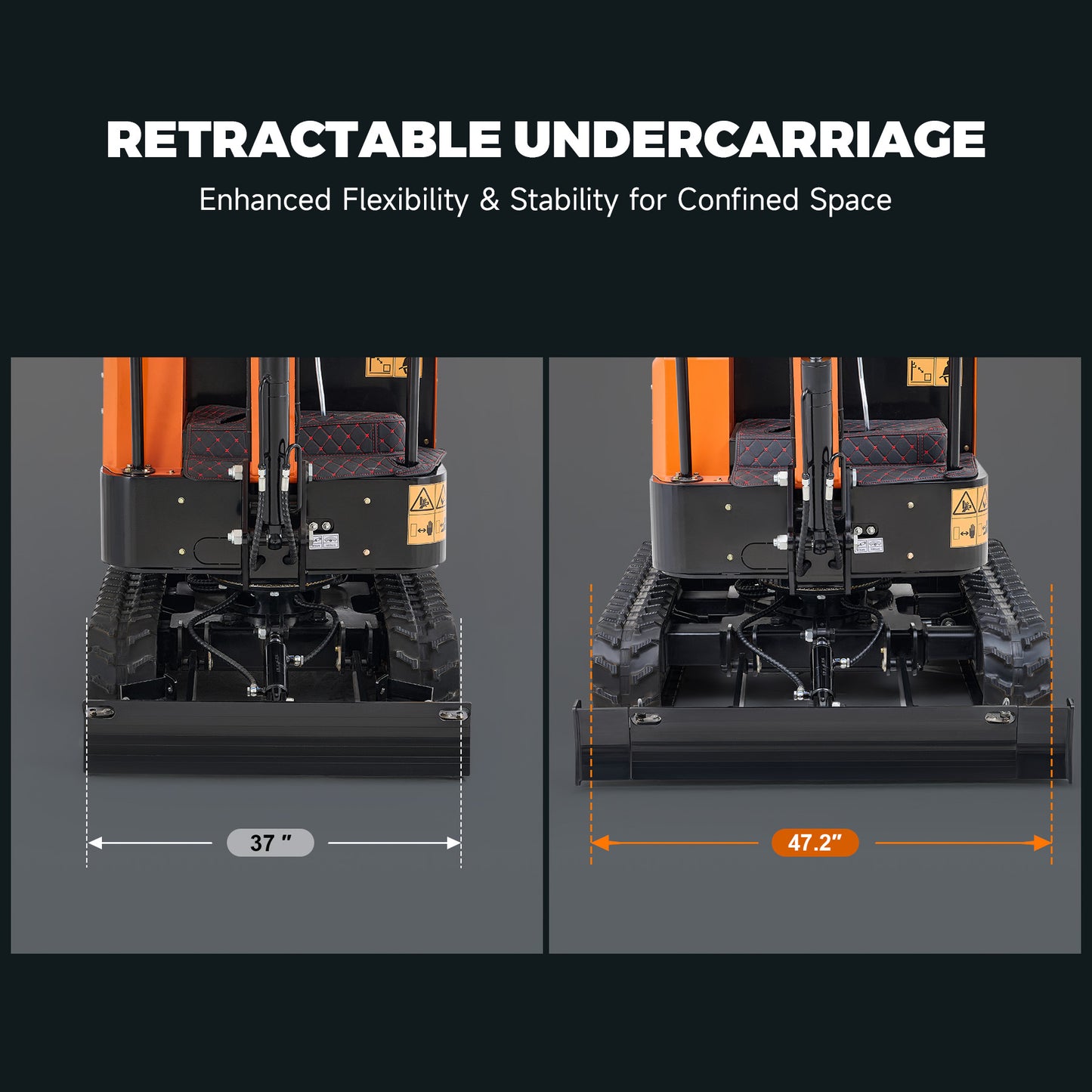

With a retractable width ranging from 37 to 47.2 in., this innovative system transforms your excavator's capabilities in multiple ways. Narrow the tracks to access confined spaces where standard machines can't operate, then expand them for maximum stability on challenging terrain. This versatility eliminates the need for multiple specialized machines while enhancing safety by preventing tipping hazards.

Compact Design

With a total width of just 3'3", our excavator is easy to maneuver in tight urban and residential spaces. The reduced tailswing model minimizes the risk of property damage near buildings and obstacles due to its minimal swing radius.

On this heavy-duty compact excavator, maintenance is quick and easy

Easy Maintenance

On this heavy-duty compact excavator, maintenance is quick and easy. Located conveniently at the rear, accessible maintenance ports allow effortless removal of guards and straightforward servicing of key components. These accessible points minimize downtime, ensuring your machine operates at peak performance consistently.

Adjustable Dozer Blade

Our 1000mm wide blade stands out from competitors, offering superior coverage. It adjusts from -16cm to +16cm in height, ensuring versatility across different terrains. Features like Dig-to-Blade and dozer float make clean-up effortless.

Our small excavator arrives with hydraulic oil pre-filled for immediate use

Ready-to-Use Hydraulic System

  • Our small excavator arrives with hydraulic oil pre-filled for immediate use. Monitor oil levels and temperature effortlessly with the built-in meter, ensuring you have full control over the machine's status at all times.
  • Adding hydraulic oil is easy with the conveniently located next to the right-side excavator control lever. Clear labeling on the machine body ensures seamless operation.
Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like auger, hydraulic thumb, and hydraulic breaker hammer

Compatible with Multiple Attachments

  • Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like auger, hydraulic thumb, and hydraulic breaker hammer(not incl.).
  • From effortlessly demolishing tough materials to achieving precision in drilling tasks and securely handling debris, our tools excel in diverse environments.
Buy Excavator Attachments

Enhanced Durability

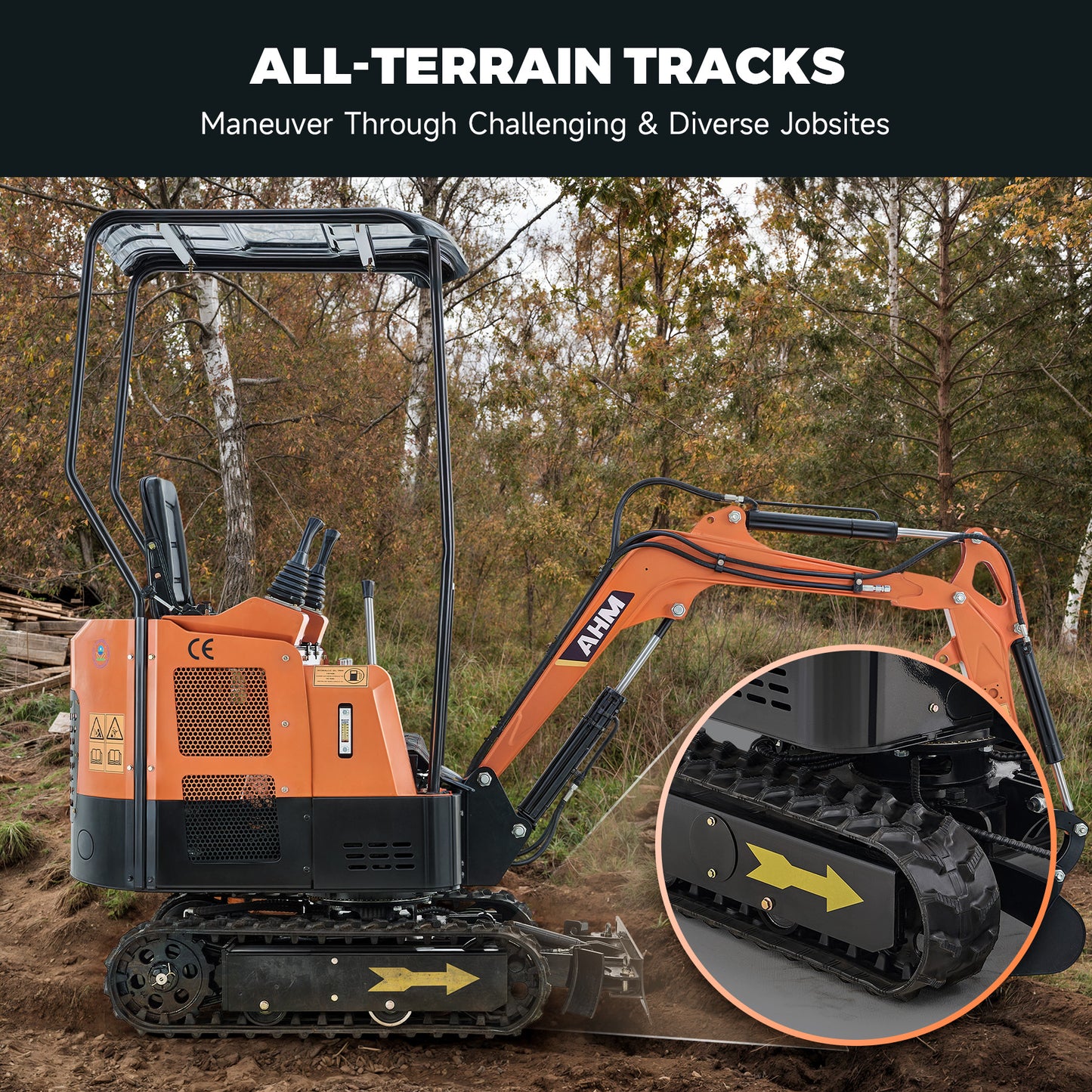

The improved track frame design reduces mud buildup and minimizes wear on the carrier rollers, enhancing the machine's durability. Forged structure at key boom joints, with optimized shape and thickness, alleviates stress and boosts longevity.

Top-Quality Workmanship

The machine's structural components are crafted by Japan Komatsu's trusted manufacturers. The entire vehicle undergoes shot blasting, pickling, phosphating, and spraying processes, enhancing paint adhesion for increased durability, resistance to fading, and a smoother finish.

  • AHM mini excavators keep you safe with work lights on the digging arm for better visibility, a seatbelt for security, a canopy for rain and sun protection, and waterproof, non-slip mats underfoot. Stay safe and focused on the job.

    Your Safety is Our Priority

    AHM mini excavators keep you safe with work lights on the digging arm for better visibility, a seatbelt for security, a canopy for rain and sun protection, and waterproof, non-slip mats underfoot. Stay safe and focused on the job.

  • Our small digger is made from sturdy steel for durable long-lasting service

    Hardy Helper for Any Terrain

    Our small digger is made from sturdy steel for durable long-lasting service, while the rubber tracks let the excavator move on various surfaces and offer exceptional traction without damaging cabro paving, indoor flooring, or pavement.

  • Specification

    • Material: Steel, Rubber
    • Engine Power: 23 hp (17.2 kW)
    • Max. Load Capacity: 265 lb. (120 kg)
    • Max. Slope Grade: 30°
    • Bucket Volume: 0.88 ft³ (0.03 m³)
    • Bucket Width: 15.7 in. (400 mm)
    • Max. Digging Depth: 71 in. (1795 mm)
    • Max. Digging Force: 3262 lbf (14.5 kN)
    • Max. Digging Radius: 114.2 in. (2900 mm)
    • Max. Dumping Height: 59.3 in. (1505 mm)
    • Max. Dozer Lift: 12.2 in. (310 mm)
    • Max. Dozer Depth: 10.6 in. (270 mm)
    • Fuel Consumption: 0.4 gal/h (1.5 L/h)
    • Fuel Tank Volume: 1.84 gal. (7 L)
    • Warranty: 1 Year

  • Package List

    • 1x Mini Excavator
    • 1x Hydraulic Oil Filter
    • 4x Pipe Clamps
    • 4x Grease Fittings
    • 1x Grease Gun
    • 1x Hard Pipe Nozzle
    • 1x Flexible Pipe Nozzle
    • 1x Adjustable Wrench
    • 1x L-Shaped Wrench
    • 1x Grease
    • 1x Wrench Set
    • 1x Hardware Package
    • 1x Instruction Manual

Specs & Compare

Product Manual
AX-16S | 23 HP B&S Engine Mini Excavator with Retractable Undercarriage
AX-16S
Key Specifications
Operating Weight
Max. Bucket Digging Force
Max. Digging Depth
Width
Tail Swing Type
Engine
Emissions Tier (EPA)
Model
Gross Power
Engine Fuel
Maximum Governed RPM
Rated Torque
Displacement
Stroke
Bore
Performance
Operating Weight
Weight Class
Max. Traveling Speed
Bucket Digging Force
Max. Digging Radius
Min. Swing Radius
Max. Digging Depth
Max Dump Height
Platform Ground Clearance
Bucket Volume
Bucket Width
Capacities
Fuel Tank Volume
Fuel Consumption
Fuel Type
Hydraulic System
Hydraulic Tank Volume
Hydraulic Oil
Main Pump Flow
Rated Pressure
Max. Pressure
Dimension
Overall Length in Travel Position
Width
Height with Operator Cab

FAQ

What is the engine cooling method?

The engine cooling method is air-cooled.

What is the fuel type?

The fuel type is gasoline with an octane rating of 90 or higher.

What is the capacity of the fuel tank and the fuel consumption rate?

The capacity of the fuel tank is 8 liters, and the fuel consumption rate is 1.5 liter per hour (1.5 L/H).

Where is the fuel filling port located?

The fuel filling port is located at the bottom of the seat.

What is the engine model?

The engine model is BRIGGS & STRATTON Dual Cylinder 3864.

What accessories are included with the machine?

The machine comes with only one digging bucket and does not include any additional attachments.

What are the dimensions of the pin shaft/linkage rod?

The dimensions are M25*160.

What is the travel speed of the excavator?

The travel speed of this excavator is 3 km/h.
