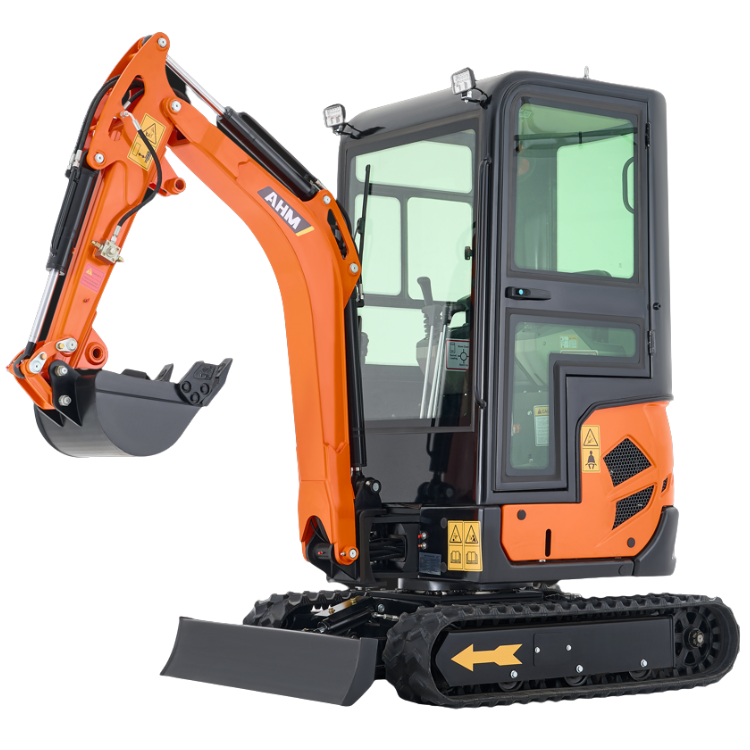

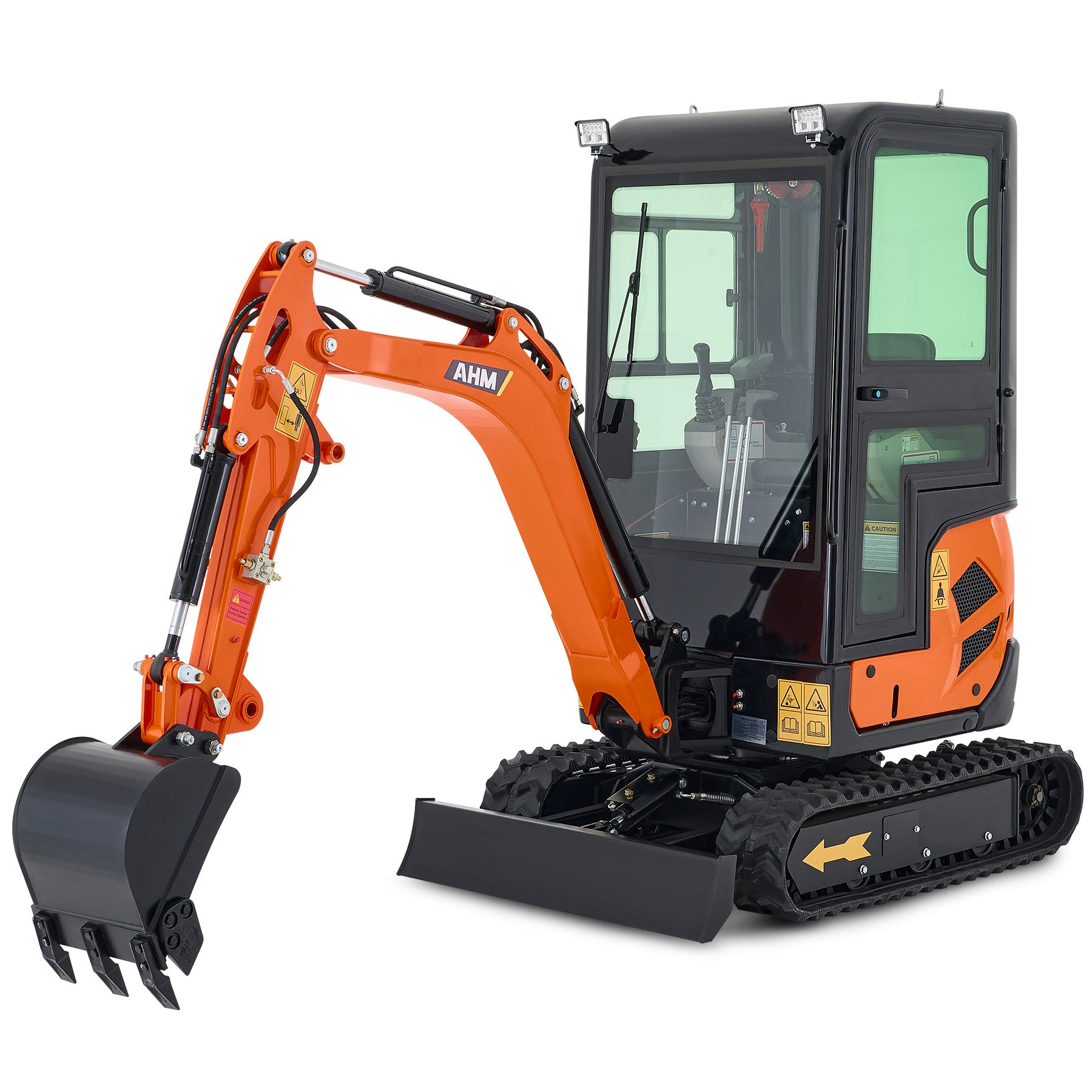

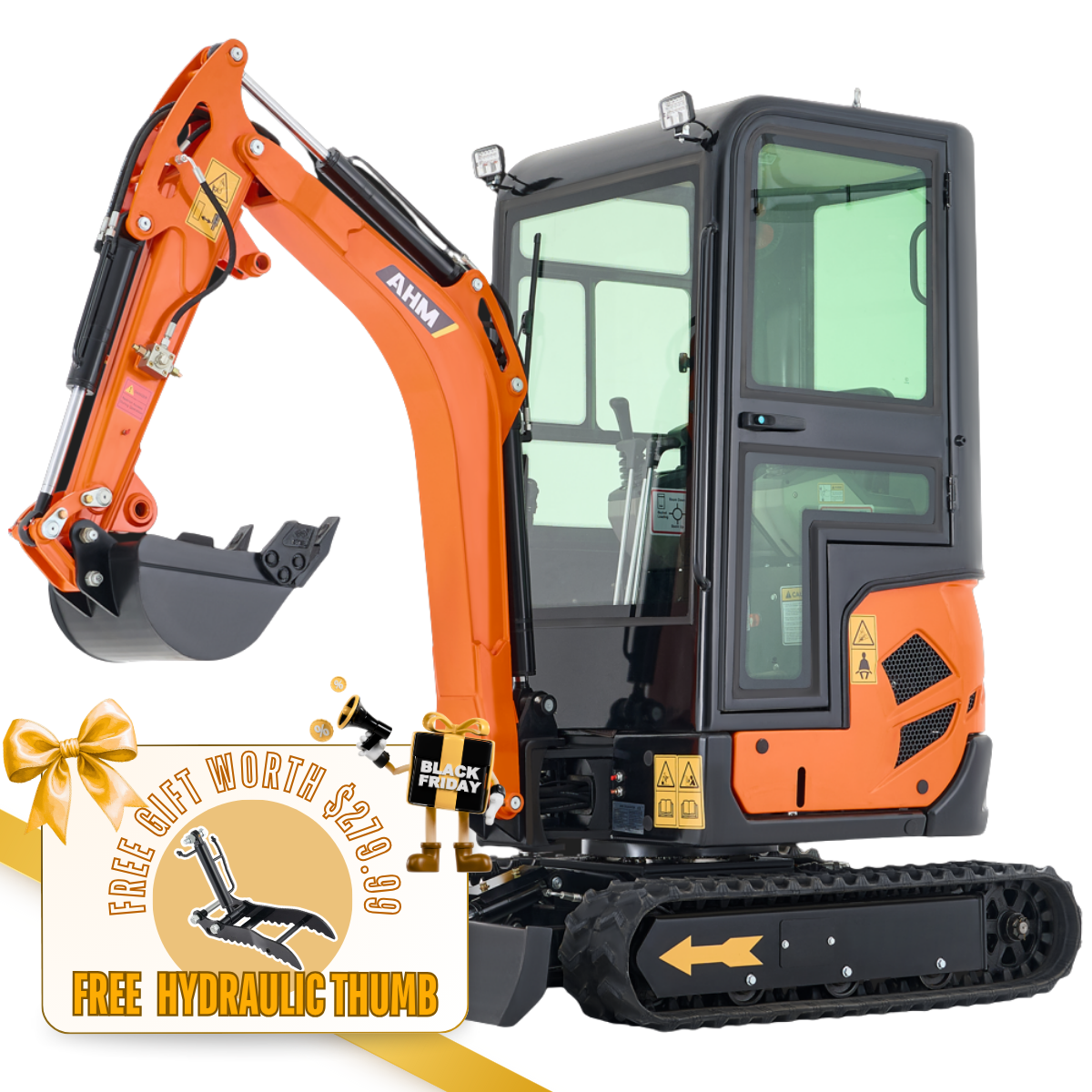

AX-17J | 23 HP B&S Engine 1.6 Ton Mini Excavator with Swing Boom & Enclosed Cab

AX-17J | 23 HP B&S Engine 1.6 Ton Mini Excavator with Swing Boom & Enclosed Cab

$13,599.99 USD
$13,599.99 USD
Sale Sold out
Mini Excavator Model
Standard Bucket Included
Delivery Option
  • Free Shipping from US
  • 1-Year Warranty
  • Lifetime Tech Support

Shipping is free, but UNLOADING SERVICE NOT INCLUDED. Please review our shipping policy before placing your order. Click here for details

Before You Purchase, Make Sure to Review Our Policies

View full details

Built for Depth Built for Pros

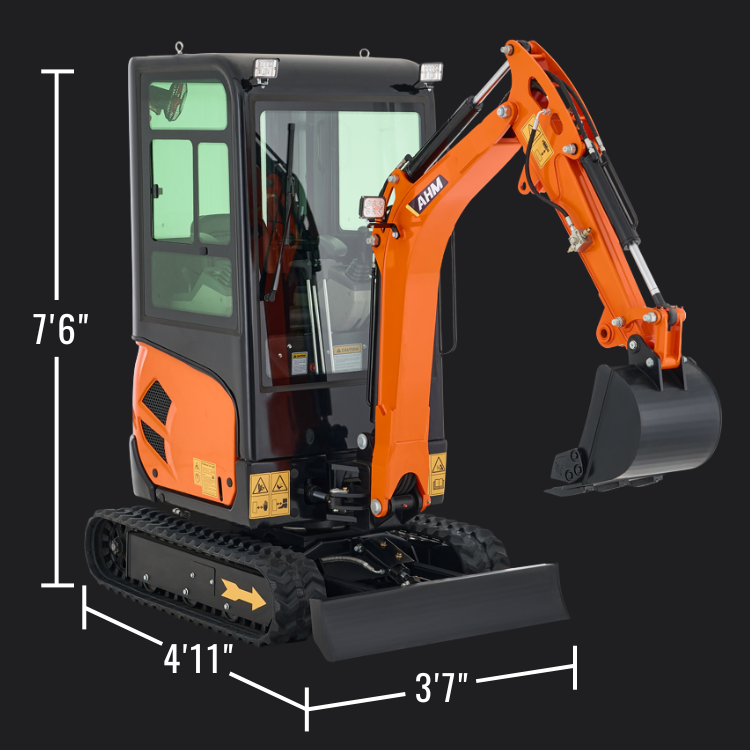

The AHM AX-17J 23HP B&S gasoline mini excavator combines pro-level digging power with the comfort of a fully enclosed cab. With an 88.9-inch digging depth and 134.5-inch max digging radius, it handles deep jobs effortlessly. The upgraded swing boom lets you dig tight spots from any angle. This 3'7" wide machine lifts up to 551 pounds and offers smoother control with pilot-operated hydraulics. It’s the deepest digging and best value mini excavator under 2 tons with added all-weather protection.

  • Ensures reliable efficiency for everyday task

    Operating Weight

    3871 lb

  • Max. Dig Depth

    88.9 in.

  • Get your work done faster and lift more, outpacing the competition

    Horsepower

    23 HP

  • Max. Load Capacity

    551 lb
Briggs & Stratton Dual Cylinder 3864 engine

Double Enhanced Power and Improved Efficiency

Briggs & Stratton Efficient Engine

Equipped with a Briggs & Stratton Dual Cylinder 3864 engine, this compact powerhouse packs advanced technologies, delivering exceptional power and efficiency while being lighter than competitors. Boasting 70% more horsepower and 50% larger displacement than 13.5hp 420cc models, it ensures superior performance.

  • V-Twin OHV Technology: Offers better balance, increased power, and optimized performance for longer life and improved fuel economy.
  • Robust Construction: Features cast iron sleeve, balanced crankshaft, and full-pressure lubrication, ensuring longevity and wear resistance.

Max. Bucket Digging Force: 2923 lbf (13 kN)

29% Deeper Than Others

  • Get serious digging power with the AX-17J, packing an 88.9-inch max digging depth and 2923 lbf of digging force. From breaking through rock-hard clay to moving heavy loads, this machine makes tough jobs easy.
  • With a 134.5-inch max digging radius, a 70.1-inch dumping height, and a compact 32.3-inch swing radius, the AX-17J delivers muscle and reach where other small machines can't.

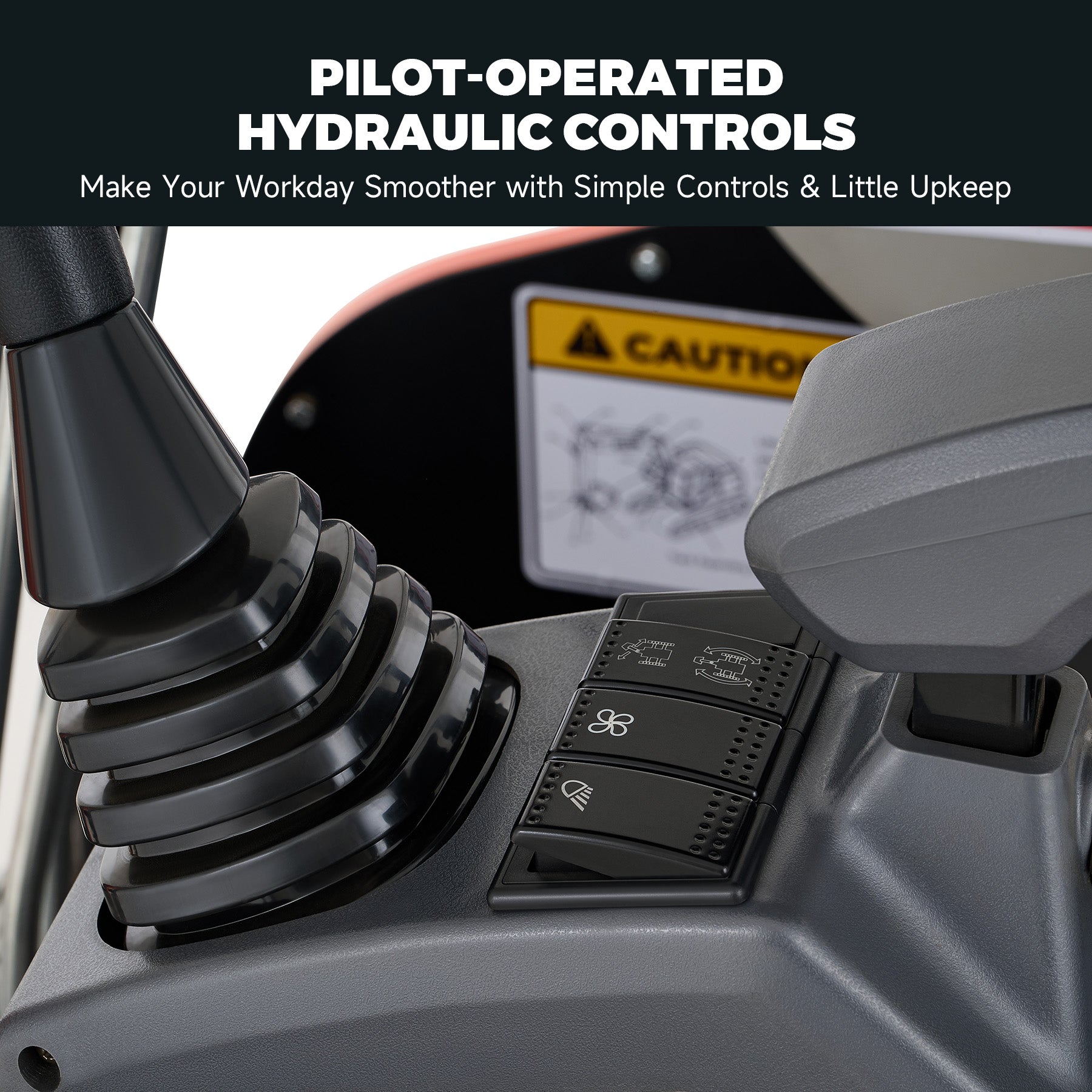

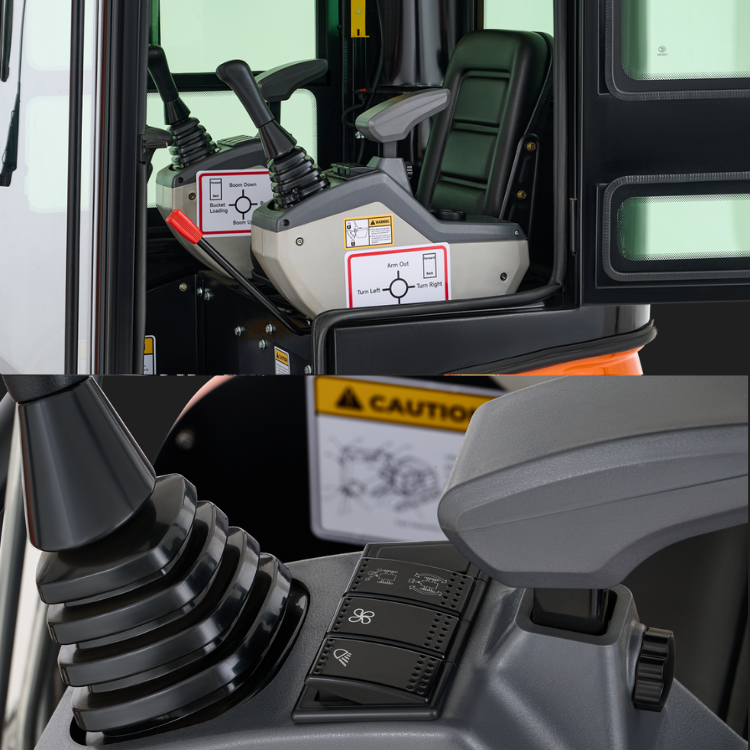

Precise Hydraulic Pilot Control System

  • The precise hydraulic pilot control system outperforms cheap mechanical controls. When you stop the joystick, the machine responds immediately with smooth, precise action. Unlike the delay in traditional mechanical systems, pilot control ensures smoother, safer operation while reducing wear and extending the machine’s lifespan.
  • In addition, the hydraulic pilot lock switch adds an extra layer of protection, preventing accidental machine movement by locking the hydraulic system when idle, ensuring safety during transport or while not in use.

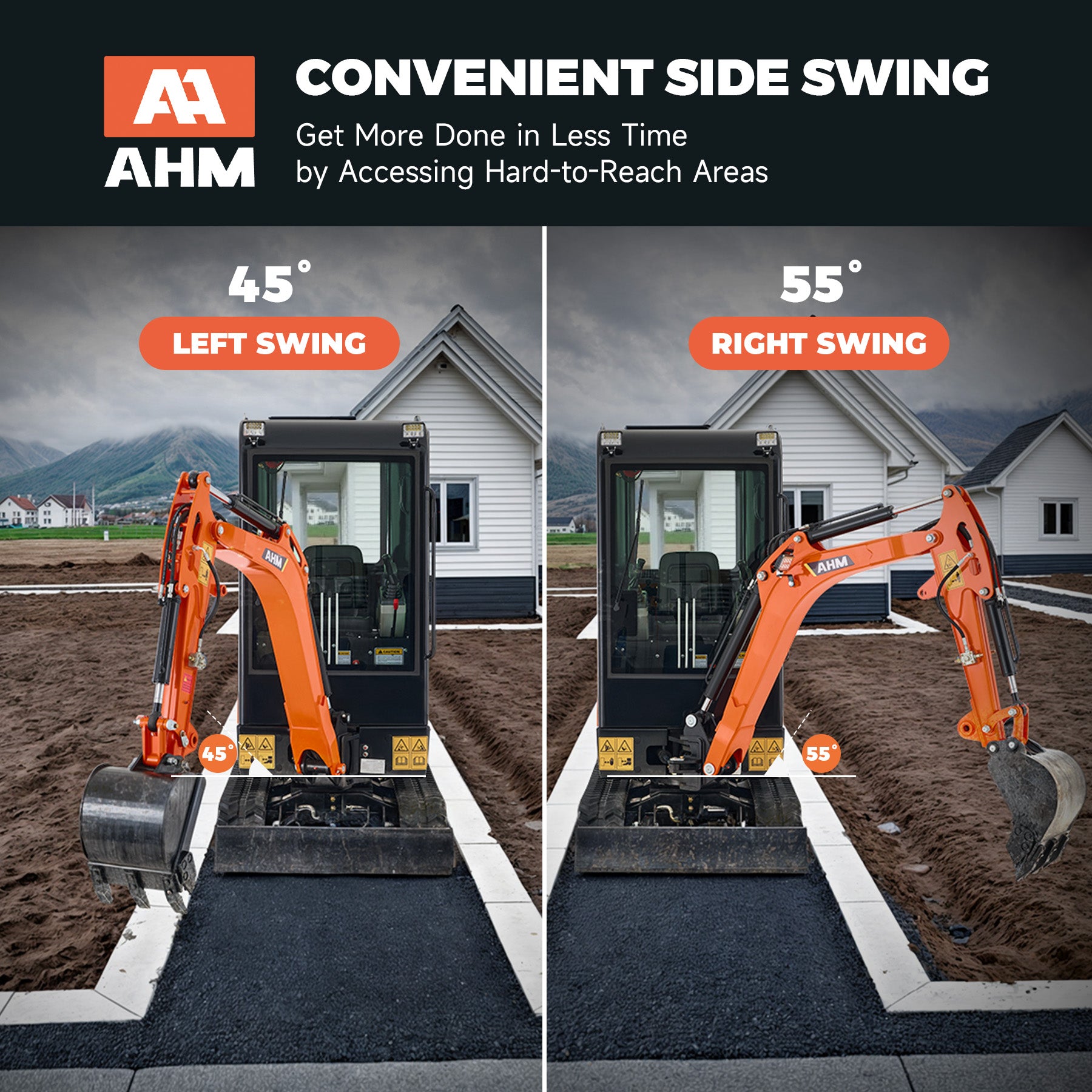

Swing Boom for Better Performance

  • Maximize your mini excavator’s potential with the swing boom feature. It allows the arm to move side-to-side without repositioning the machine, making it perfect for tight spaces and tricky angles.
  • Save time, work more efficiently, and protect the ground from unnecessary wear. Whether you're working close to walls or in narrow spots, the swing boom gives you the precision and flexibility you need to get the job done right.

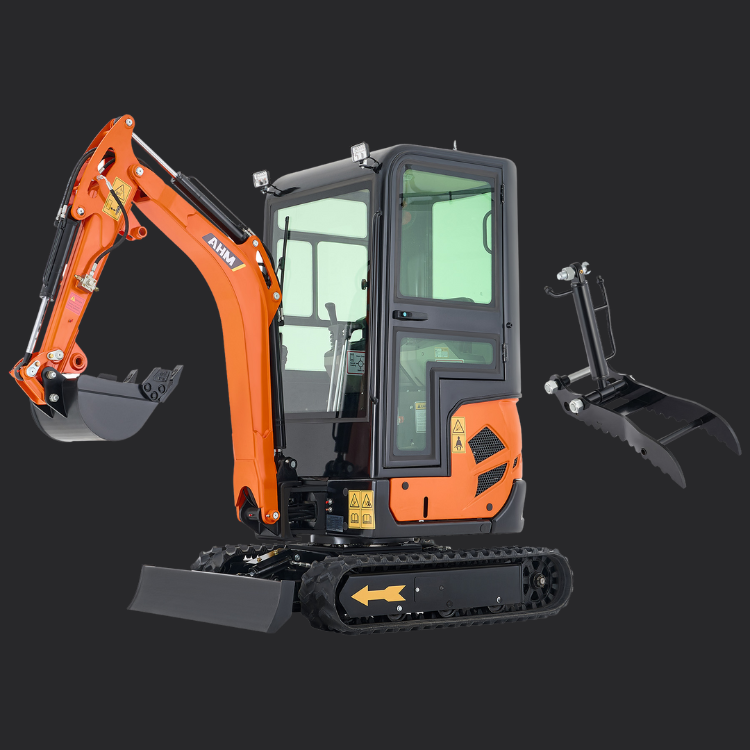

Compatible with Multiple Attachments

  • Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like auger, hydraulic thumb, and hydraulic breaker hammer(not incl.).
  • From effortlessly demolishing tough materials to achieving precision in drilling tasks and securely handling debris, our tools excel in diverse environments.
Buy Excavator Attachments

  • Your Safety is Our Priority

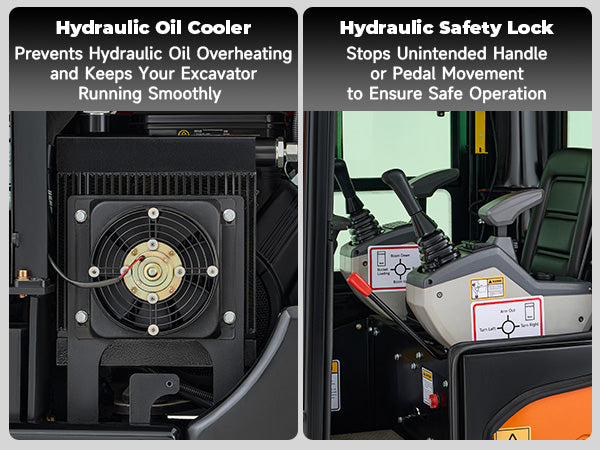

    Our excavators are designed with advanced safety and efficiency. The hydraulic oil cooler maintains consistent oil temperatures, preventing overheating and protecting critical components, reducing wear, and extending equipment life. The hydraulic safety lock immobilizes controls during maintenance or unintended activation, reducing risks and enhancing safety in compliance with OSHA standards.

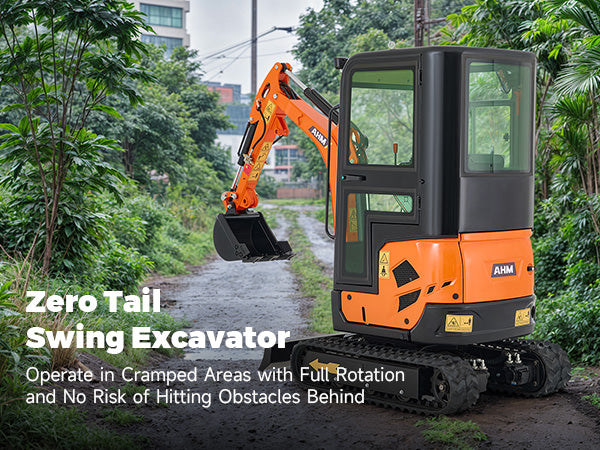

  • Compact Power with Zero Tail Swing

    Our zero tail swing excavator is built for tight spaces, offering full rotation without hitting obstacles behind. It lets you work right up against walls, fences, or structures with total freedom of movement. The reduced tail design improves safety, boosts efficiency in narrow job sites, and keeps your worksite clean and damage-free while delivering serious digging power where it matters.

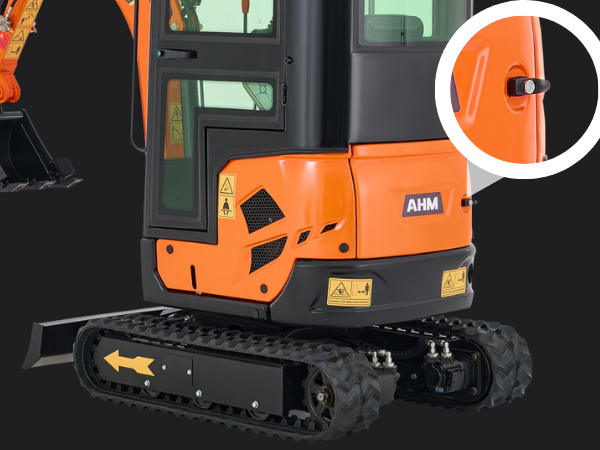

  • Easy Maintenance

    On this heavy-duty compact excavator, maintenance is quick and easy. Located conveniently at the rear, accessible maintenance ports allow effortless removal of guards and straightforward servicing of key components. These accessible points minimize downtime, ensuring your machine operates at peak performance consistently.

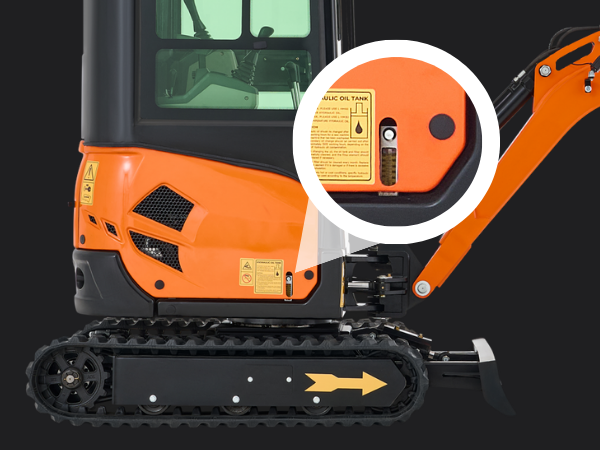

  • Ready-to-Use Hydraulic System

    Our small excavator comes with hydraulic oil pre-filled and ready to work. A built-in meter makes it easy to monitor oil levels and temperature, so you always stay on top of your machine’s condition. Clear labels on the body make daily checks and operation smooth and hassle-free.

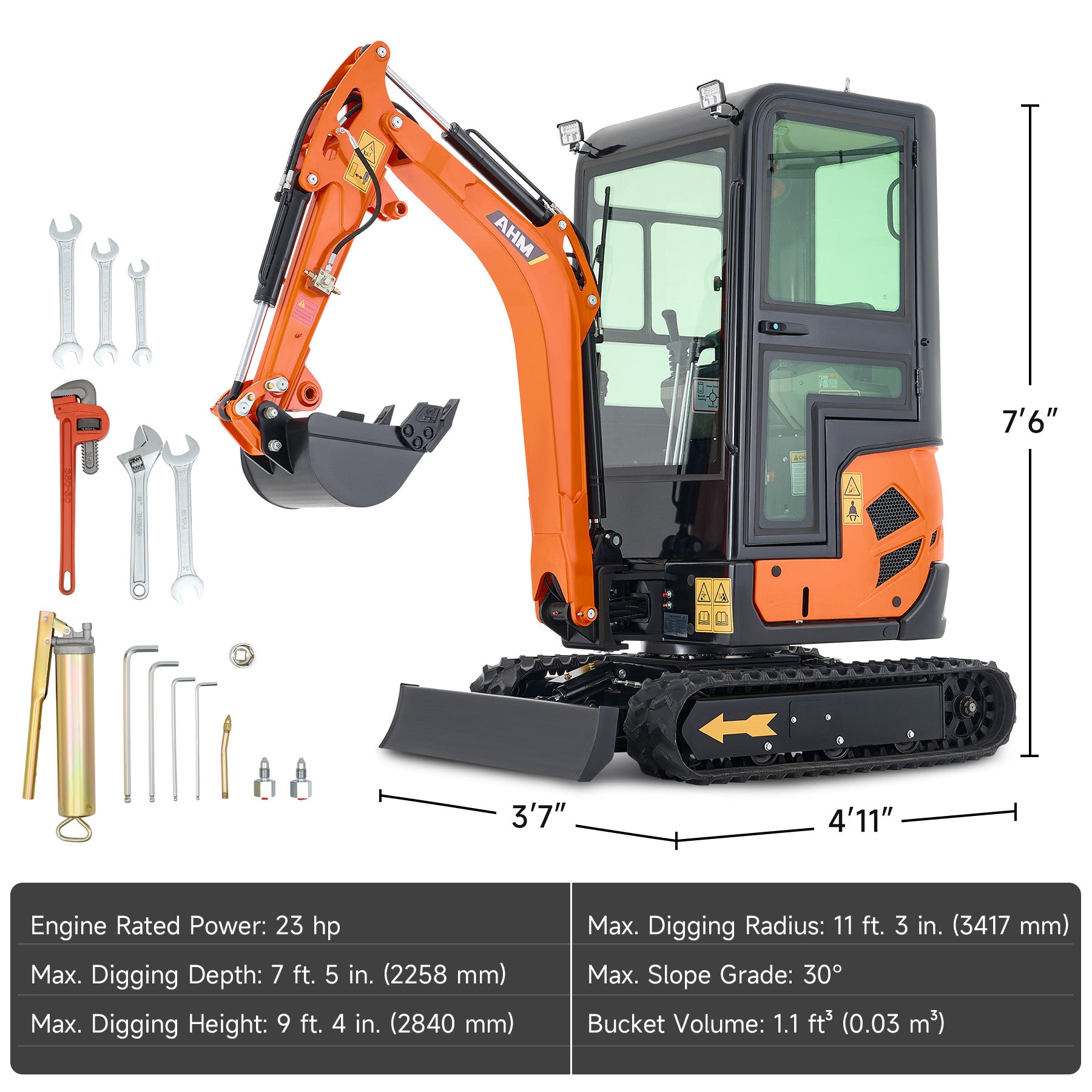

  • Specification

    • Material: Steel, Rubber
    • Engine Power: 23 hp (17 kW)
    • Max. Load Capacity: 551 lb. (250 kg)
    • Max. Slope Grade: 30°
    • Bucket Volume: 1.06 ft³ (0.03 m3)
    • Bucket Width: 15.7 in. (400 mm)
    • Max. Digging Depth: 88.9 in. (2258 mm)
    • Max. Digging Height: 111.8 in. (2840 mm)
    • Max Dump Height: 70.1 in. (1781 mm)
    • Max. Digging Radius: 134.5 in. (3417 mm)
    • Fuel Consumption: 0.95 gal/h (3.6 L/h)
    • Fuel Tank Volume: 2.25 gal. (8.5 L)
    • Warranty: 1 Year

  • Package List

    • 1x Mini Excavator
    • 1x Oil Filter
    • 1x Adjustable Wrench
    • 4x Wrenches
    • 1x Grease Gun
    • 1x Grease Gun Nozzle
    • 4x Hex Wrenches
    • 1x Socket
    • 1x Pipe Clamp Wrench
    • 4x Adapters
    • 1x Instruction Manual

Specs & Compare

Product Manual
AX-17J | 23 HP B&S Engine 1.6 Ton Mini Excavator with Swing Boom & Enclosed Cab
AX-17J
Key Specifications
Operating Weight
Max. Bucket Digging Force
Max. Digging Depth
Width
Tail Swing Type
Engine
Emissions Tier (EPA)
Model
Gross Power
Engine Fuel
Maximum Governed RPM
Rated Torque
Displacement
Stroke
Bore
Performance
Operating Weight
Weight Class
Max. Traveling Speed
Bucket Digging Force
Max. Digging Radius
Min. Swing Radius
Max. Digging Depth
Max Dump Height
Platform Ground Clearance
Bucket Volume
Bucket Width
Capacities
Fuel Tank Volume
Fuel Consumption
Fuel Type
Hydraulic System
Hydraulic Tank Volume
Hydraulic Oil
Main Pump Flow
Rated Pressure
Max. Pressure
Dimension
Overall Length in Travel Position
Width
Height with Operator Cab

FAQ

What is the engine cooling method?

The engine cooling method is air-cooled.

What is the fuel type?

The fuel type is gasoline with an octane rating of 90 or higher.

What is the capacity of the fuel tank and the fuel consumption rate?

The capacity of the fuel tank is 8.5 liters, and the fuel consumption rate is
0.95 gal/h (3.6 L/H).

What is the engine model?

The engine model is BRIGGS & STRATTON Dual Cylinder 3864.

What accessories are included with the machine?

The machine comes with only one digging bucket and does not include any additional attachments.

What is the travel speed of the excavator?

The travel speed of this excavator is 2.5 km/h.
