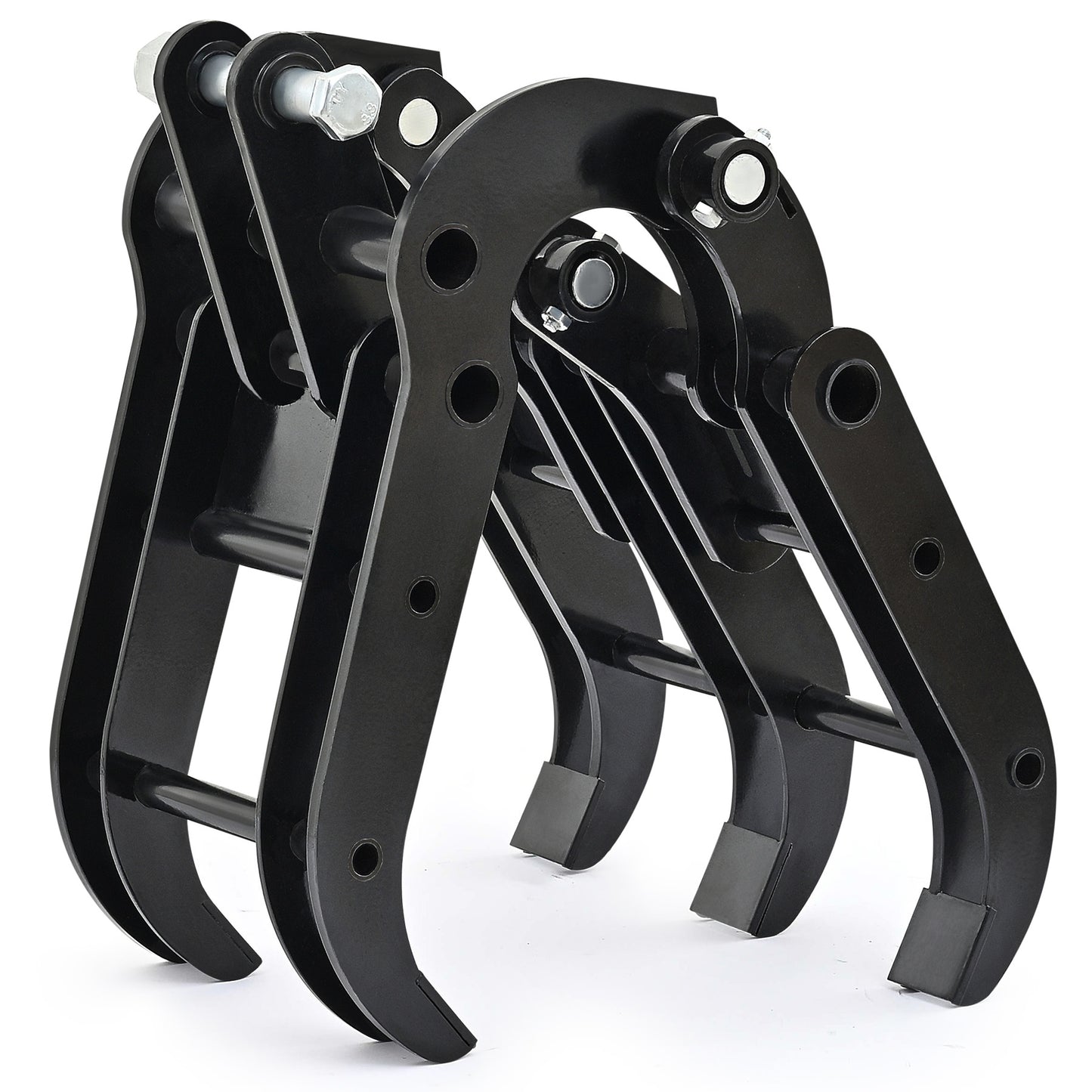

Mini Excavator Grapple Grabber Attachment with Wide Opening for Woods Rocks
Mini Excavator Grapple Grabber Attachment with Wide Opening for Woods Rocks
Description
Transform your mini excavator into a powerful log handling tool with this AHM grabber attachment. Featuring a 120° maximum opening angle and a 25.6 in. maximum opening distance, this mini excavator grabber is ideal for rock handling, log grabbing, land clearing, scrap management, and more. Its precise dimensions ensure perfect compatibility with AHM and various other mini excavators. Experience effortless, quick installation with the included hinge pins, nuts, and clear instructions. Crafted from high-quality manganese steel and resistant to wear and rust, this robust grabber grapple is reliable for demanding tasks. Elevate your machine's efficiency and performance across forestry, site cleanup, recycling, landscaping, and agricultural projects with our mini excavator grabber!
Features
- High-Efficiency Grabbing: This AHM mini excavator grabber features a 120 degrees opening angle and a 25.6 inches opening distance, delivering powerful clamping force. It's perfect for rock handling, log grabbing, land clearing, branch stacking, and more

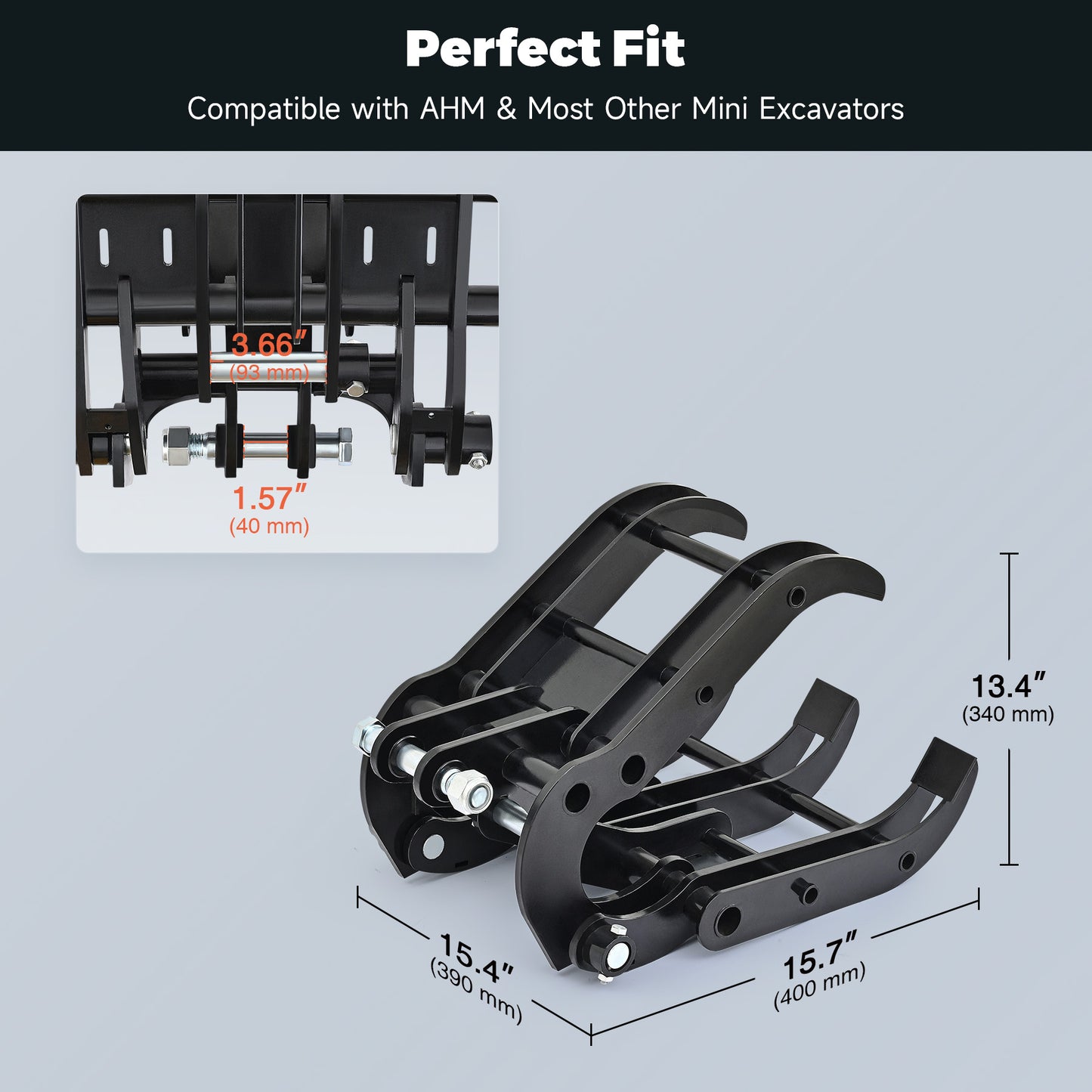

- Ideal for Mini Excavators: This mini excavator wood grabber feature a 3.66 in. (93 mm) bottom span, a 1.57 in. (40 mm) top span, and a 0.98 in. (25 mm) arm pin housing distance. It fits mini excavators with a single locking pin hole on the arm
- Effortless Installation: With 2 hinge pins and 2 nuts included, this mini excavator grapple ensures a quick and hassle-free setup. Its user-friendly design minimizes downtime, allowing for easy attachment and a faster return to work

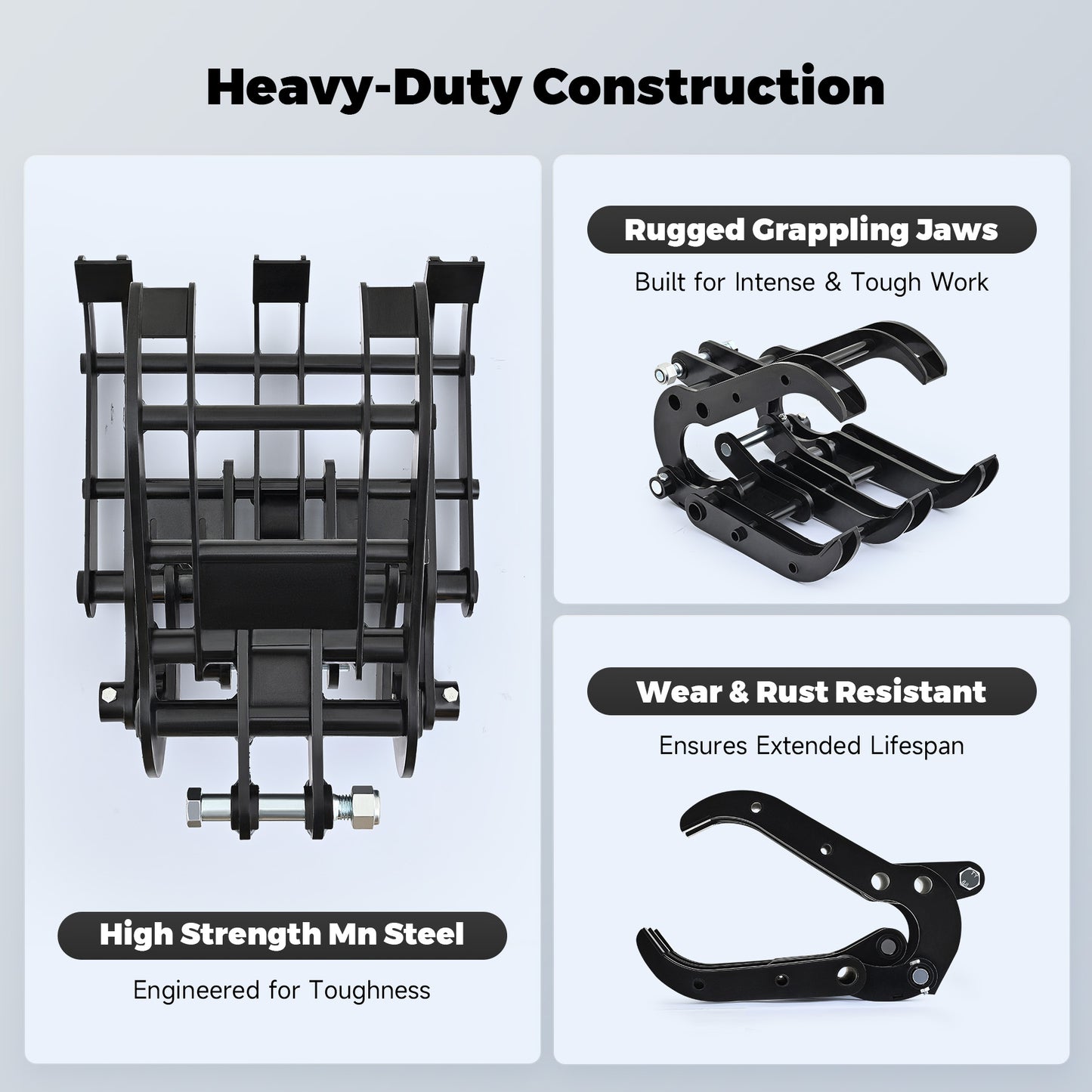

- Built for Tough Jobs: Made from high-hardness manganese steel, our grabber attachment boasts a sturdy structure, ensuring exceptional durability and wear resistance, even in demanding conditions
- Wide Applications: Transform your mini excavator into an efficient log-handling tool with our wood grapple bucket. It’s perfect for tasks such as forestry operations, site cleanup, recycling facilities, waste management, landscaping projects, and more

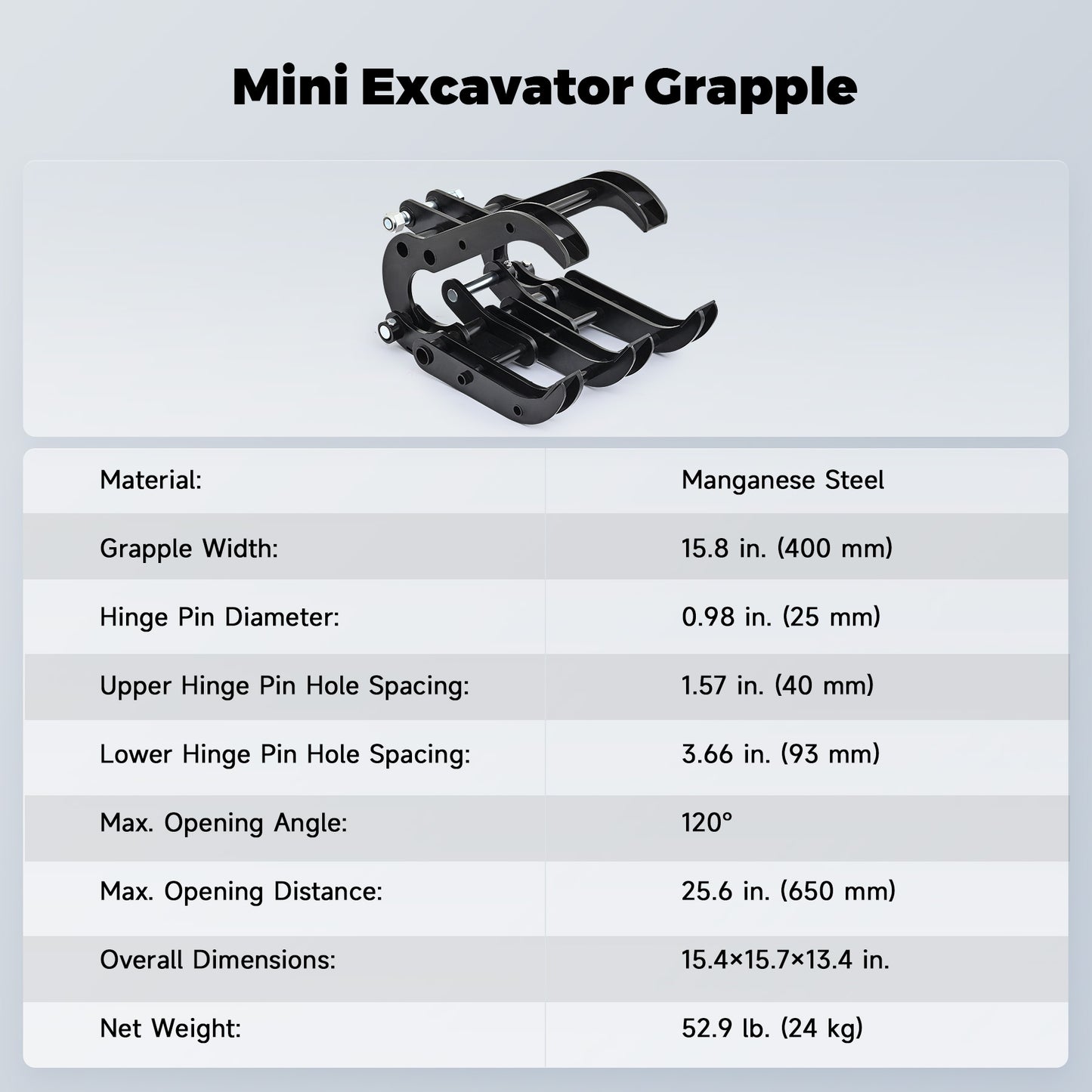

Specifications
- Material: Manganese Steel
- Grapple Width: 15.8 in. (400 mm)
- Arm Pin Housing Distance: 0.98 in. (25 mm)
- Top Span: 1.57 in. (40 mm)
- Bottom Span: 3.66 in. (93 mm)

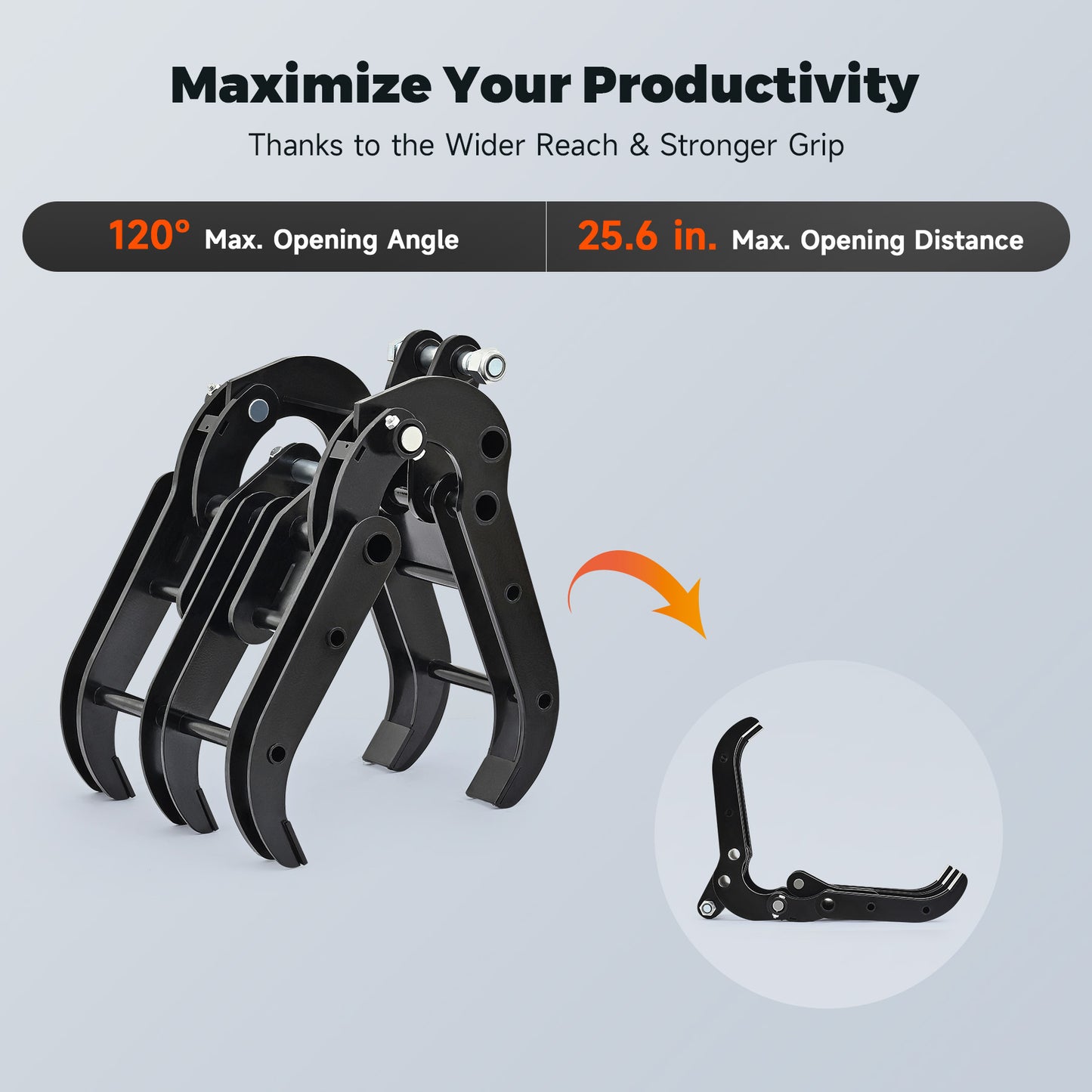

- Max. Opening Angle: 120°
- Max. Opening Distance: 25.6 in. (650 mm)
- Product Dimensions: 15.4 x 15.8 x 13.4 in. (390x400x340 mm)
- Net Weight: 52.9 lb. (24 kg)
Package List
- 1x Mini Excavator Grapple
- 2x Hinge Pins with Nuts
- 1x Instructions
