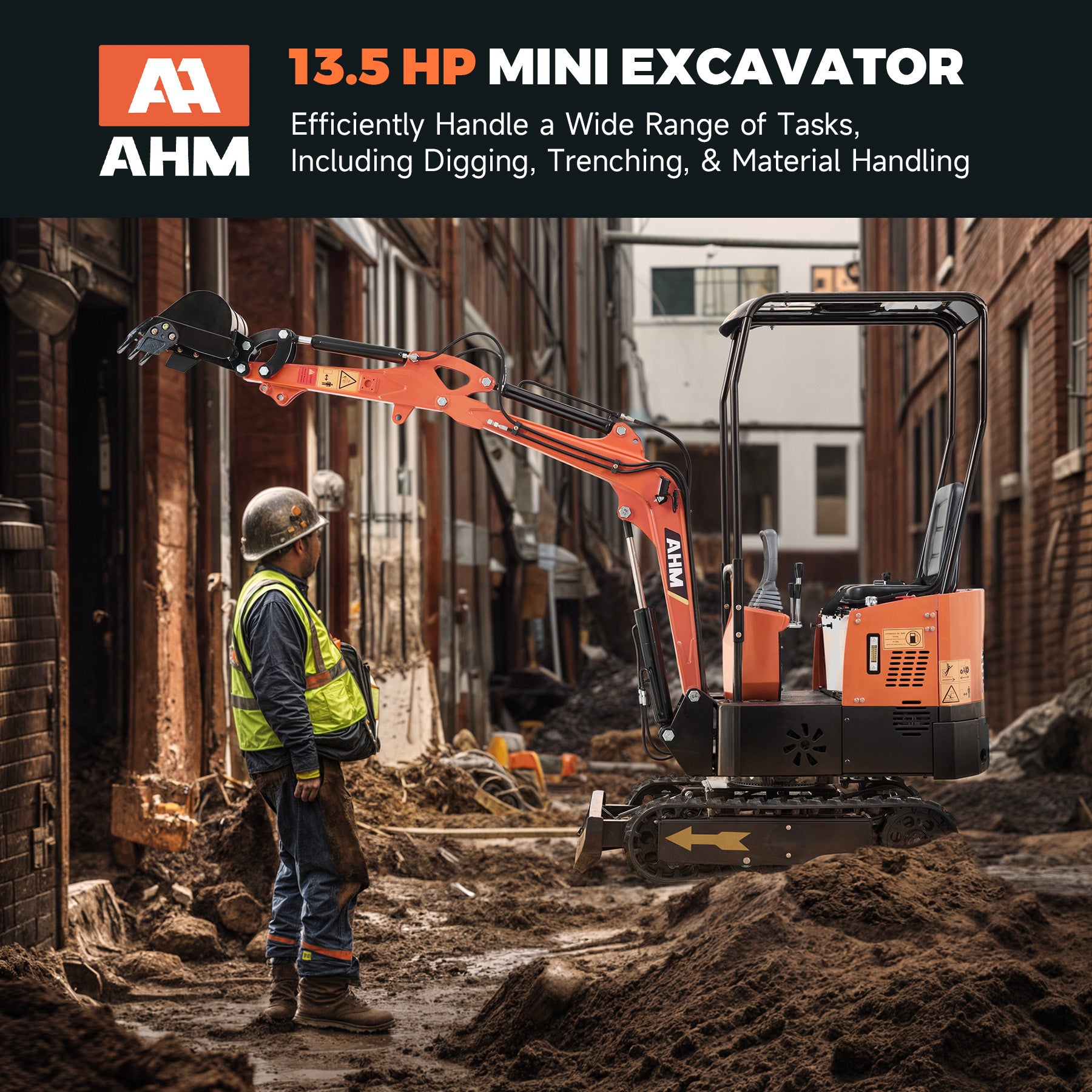

  • AHM 1 Ton Mini Excavator with 6 Attachments Mini Digger for Construction Site
  • AHM 1 Ton Mini Excavator with Hammer Auger Quick Hitch Rake Bucket Log Grapple
  • AHM 1 Ton Mini Excavator with 6 Attachments 13.5hp Motor Mini Digger for Home
  • AHM 1 Ton Mini Excavator with 6 Attachments Small Crawler for Backyard Farm
  • AHM 1 Ton Mini Crawler Excavator w Hammer Auger Quick Hitch Rake Bucket Grapple
  • AHM 1 Ton Mini Crawler Excavator with 6 Attachments for Backyard Farm Digging
1 8

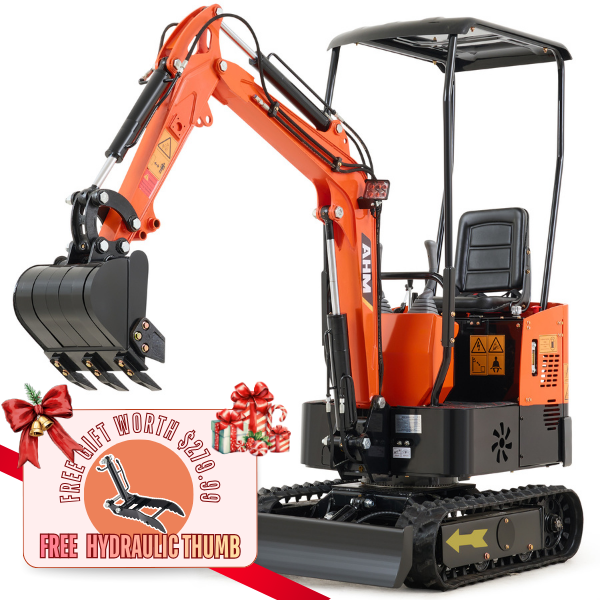

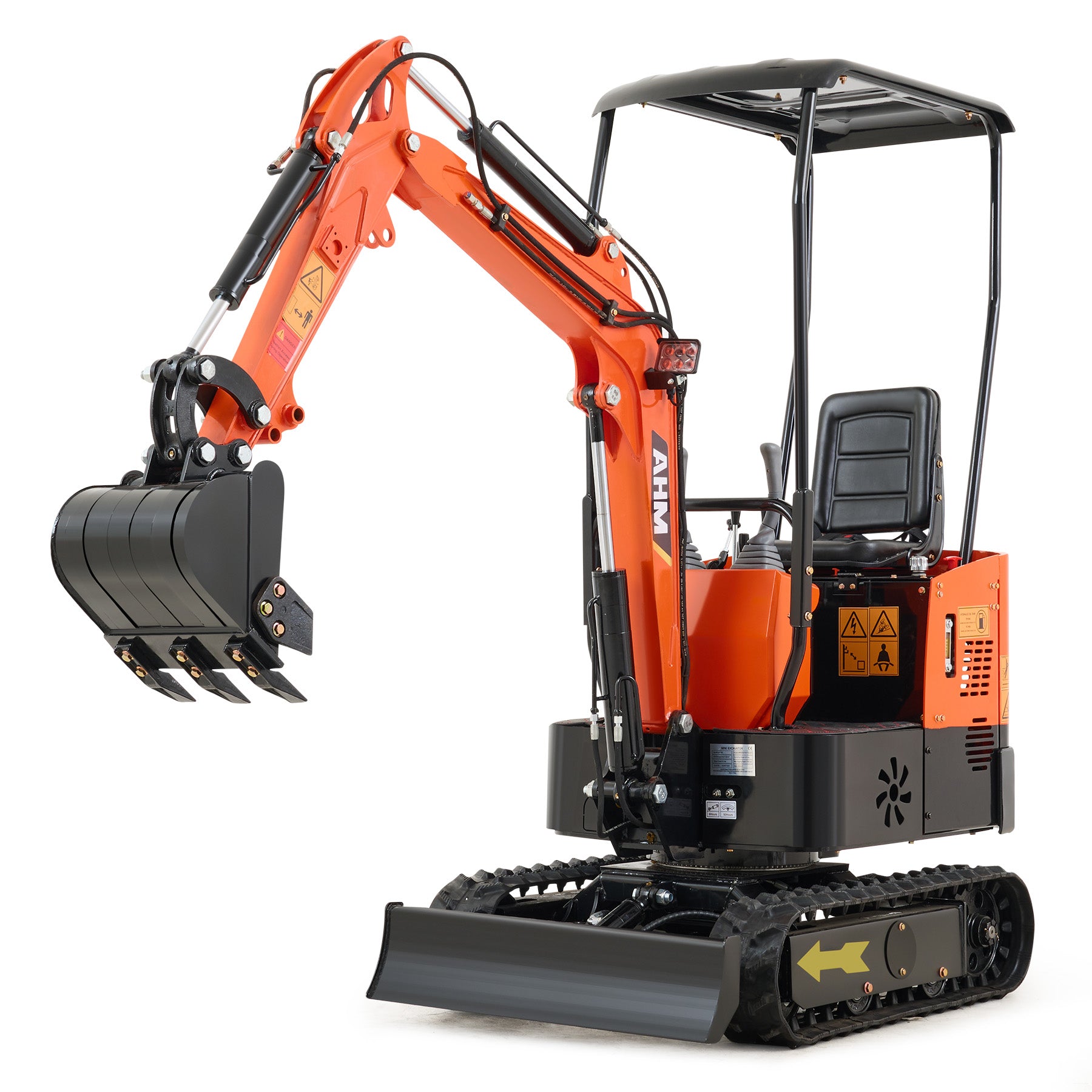

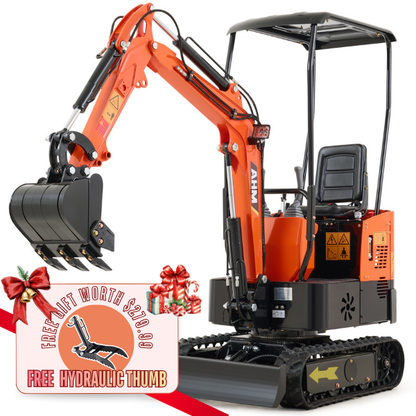

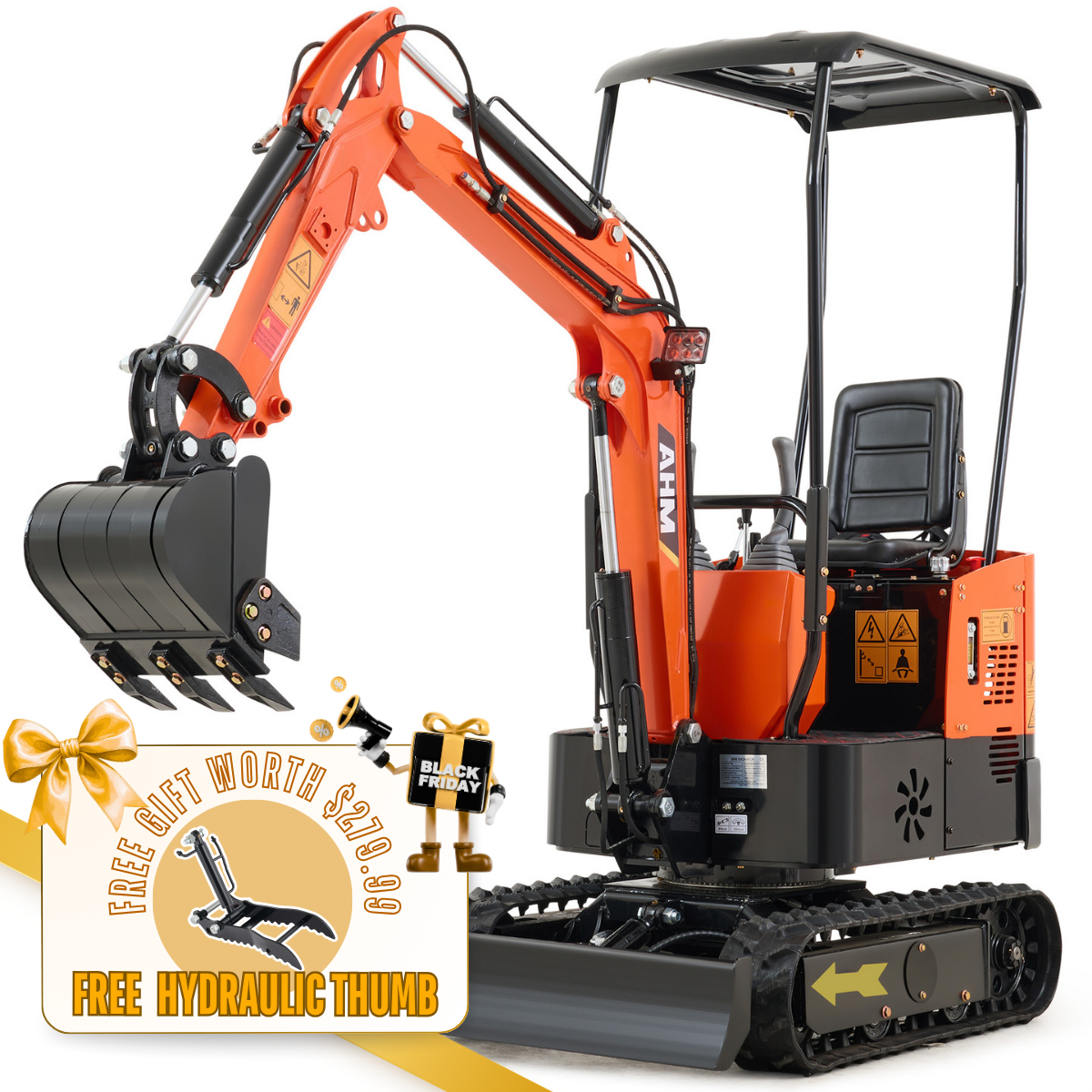

NW-A1 | 13.5 HP B&S Engine Mini Excavator with 6 Attachments

NW-A1 | 13.5 HP B&S Engine Mini Excavator with 6 Attachments

$7,599.99 USD
$7,599.99 USD $7,599.99 USD
Sale Sold out
Mini Excavator Model
Standard Bucket Included
Delivery Option
  • Free Shipping from USFree Shipping from US
  • 1-Year Warranty1-Year Warranty
  • Lifetime Tech SupportLifetime Tech Support

Shipping is free, but UNLOADING SERVICE NOT INCLUDED. Please review our shipping policy before placing your order. Click here for details
View full details

Unmatched Value, All-in-One Solution

The AHM NW-A1 packs the AX-12B's 13.5HP power, 69 in. digging depth, and 10-foot reach into a compact 3'1" width, perfect for foundation work, utility lines, and tight spaces. Plus, it includes six free attachments: quick hitch, grading bucket, grapple, rake, hydraulic hammer, and auger. This unbeatable bundle saves you more than buying everything separately, making it the ultimate budget-friendly choice for DIYers and small contractors.

  • Ensures reliable efficiency for everyday task

    6% Deeper Than Others

    Ensures reliable efficiency for everyday task

  • Delivers unmatched power and longevity for demanding projects

    Briggs & Stratton Engine

    Delivers unmatched power and longevity for demanding projects

  • with industry-low prices and minimal upkeep costs

    15% Lower Ownership Costs

    with industry-low prices and minimal upkeep costs

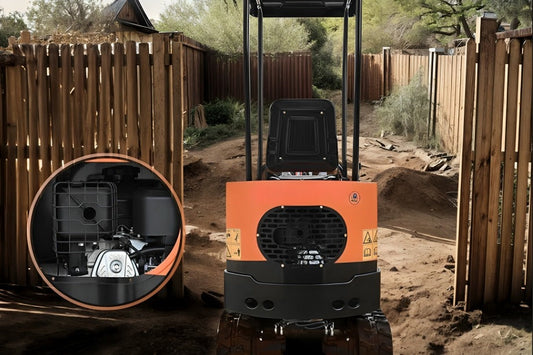

13.5 hp Briggs & Stratton Efficient Engine

High Performance and Extended Durability

Briggs & Stratton Efficient Engine

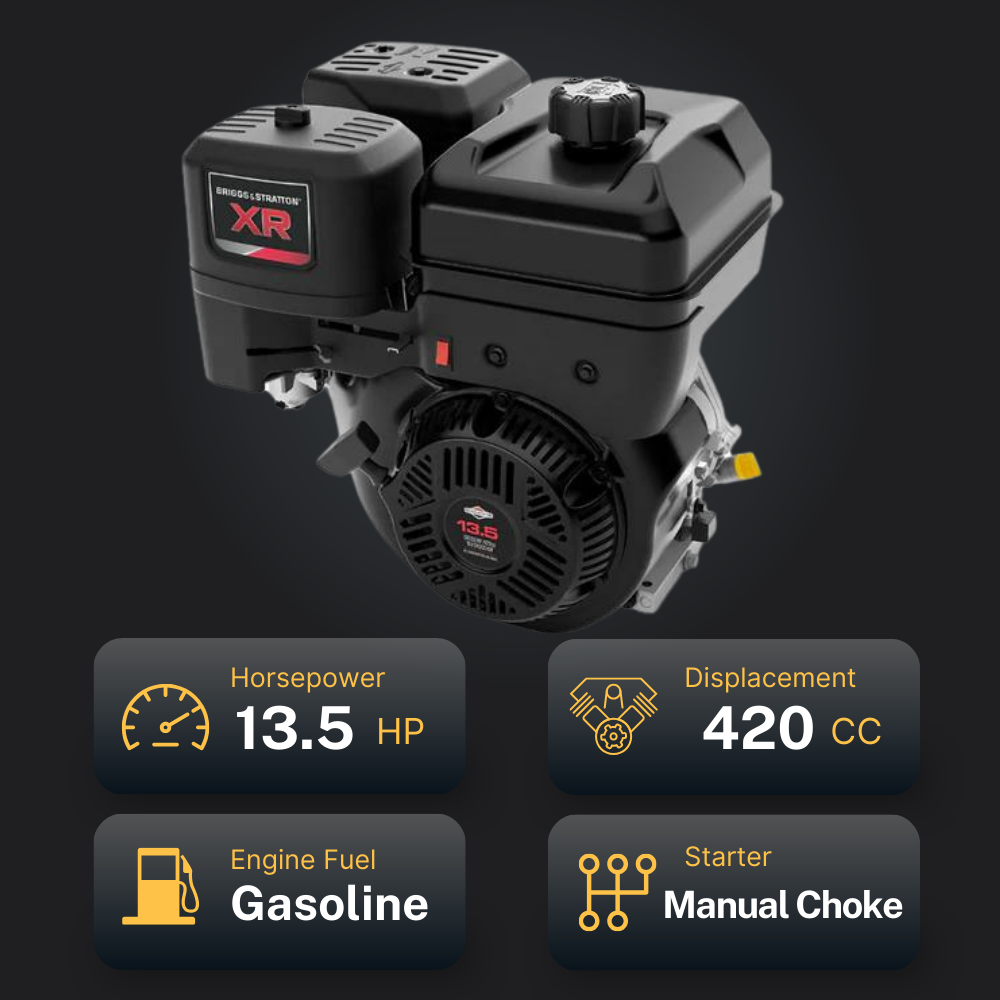

With a Briggs & Stratton 25T2 engine, our heavy-duty mini digger delivers powerful, fuel-efficient performance with excellent heat dispersion. It excels in precision and ease, ideal for demanding excavation projects. Enjoy smooth operation, minimal vibrations, and long-lasting durability.

  • Extended Lifespan: This engine surpasses Briggs & Stratton's CR Series standard lifespan by threefold, ensuring prolonged performance.
  • Durable Construction: Featuring a forged crankshaft and Dura-Bore™ cast iron sleeve, this engine is built to withstand wear and tear, ensuring long-term reliability.

Download B&S XR 13.5 Engine Specifications

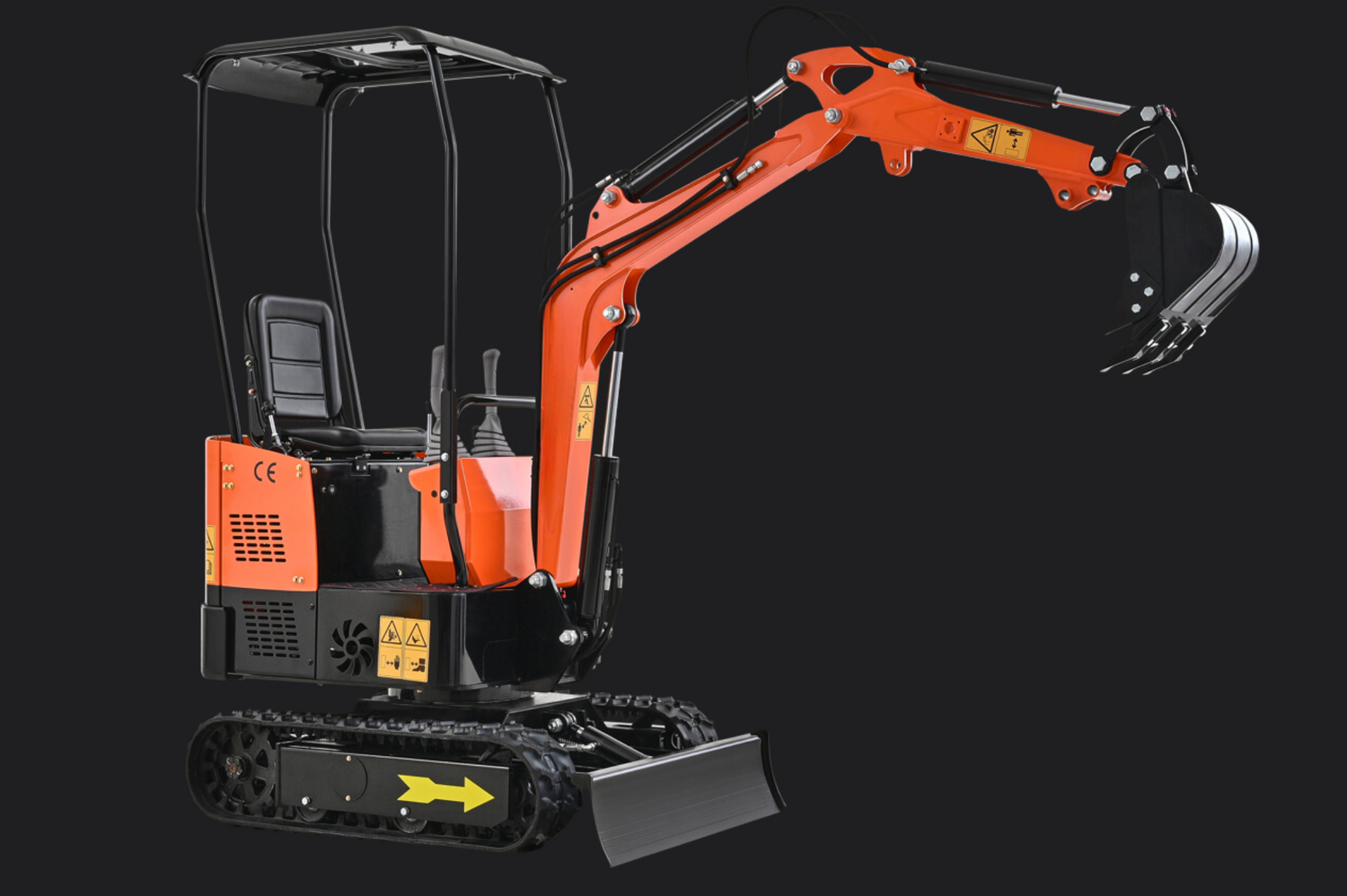

AHM 1 T Mini Crawler Excavator 13.5 hp Mini Digger w Adjustable Seat & 2585 lbf

Powerful Performance in a Compact Design

6% Deeper Than Others

Experience top performance with the AHM mini excavator, offering a 69 in. max digging depth and 2585 lbf digging force. Its advanced boom design excels in tough clay, rock, and compacted soil, making it the best choice for demanding jobs.

AHM 13.5hp Mini Excavator 1T Compact Crawler Excavator for Narrow & Tight Spaces

narrower excavator width

Big Performance in a Compact Design

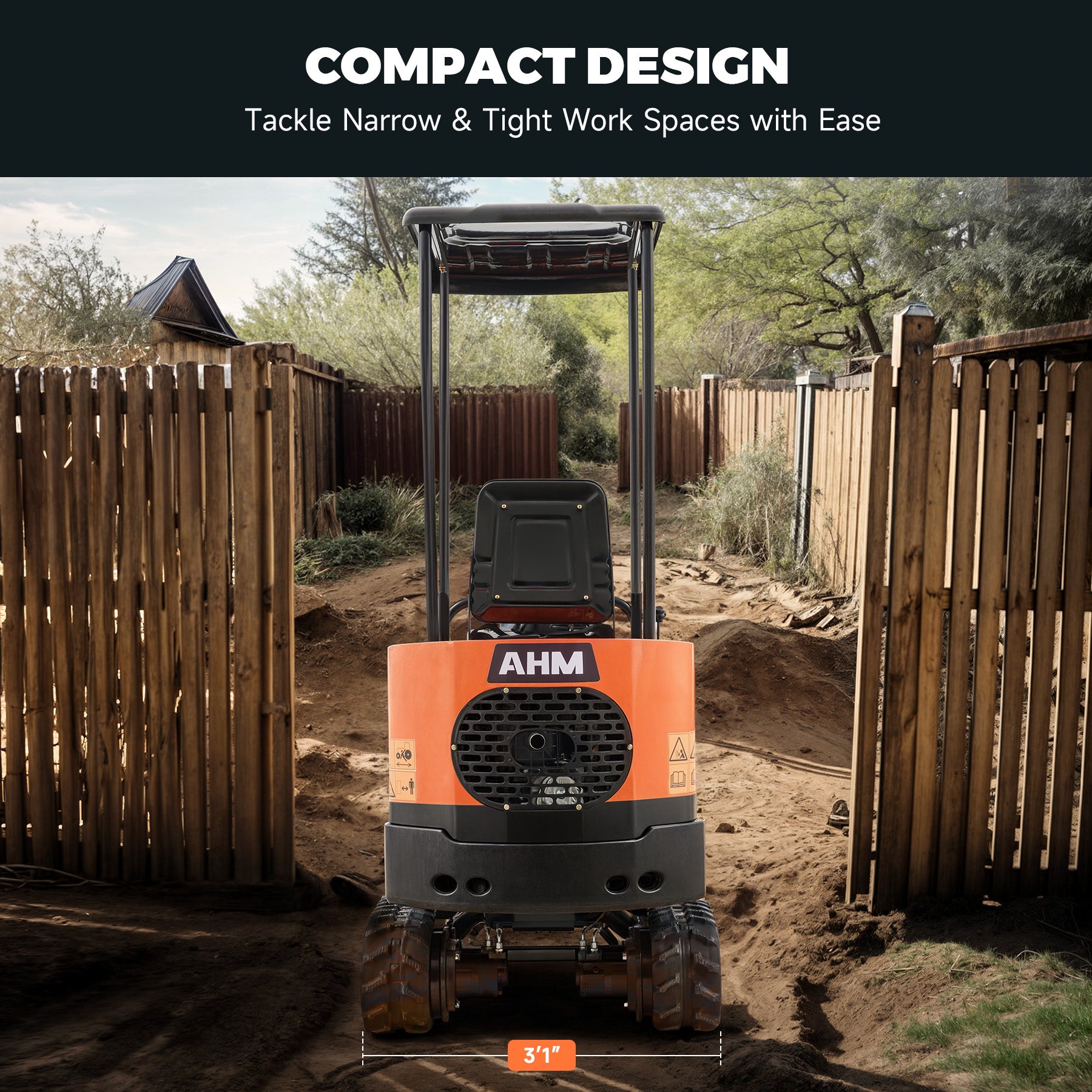

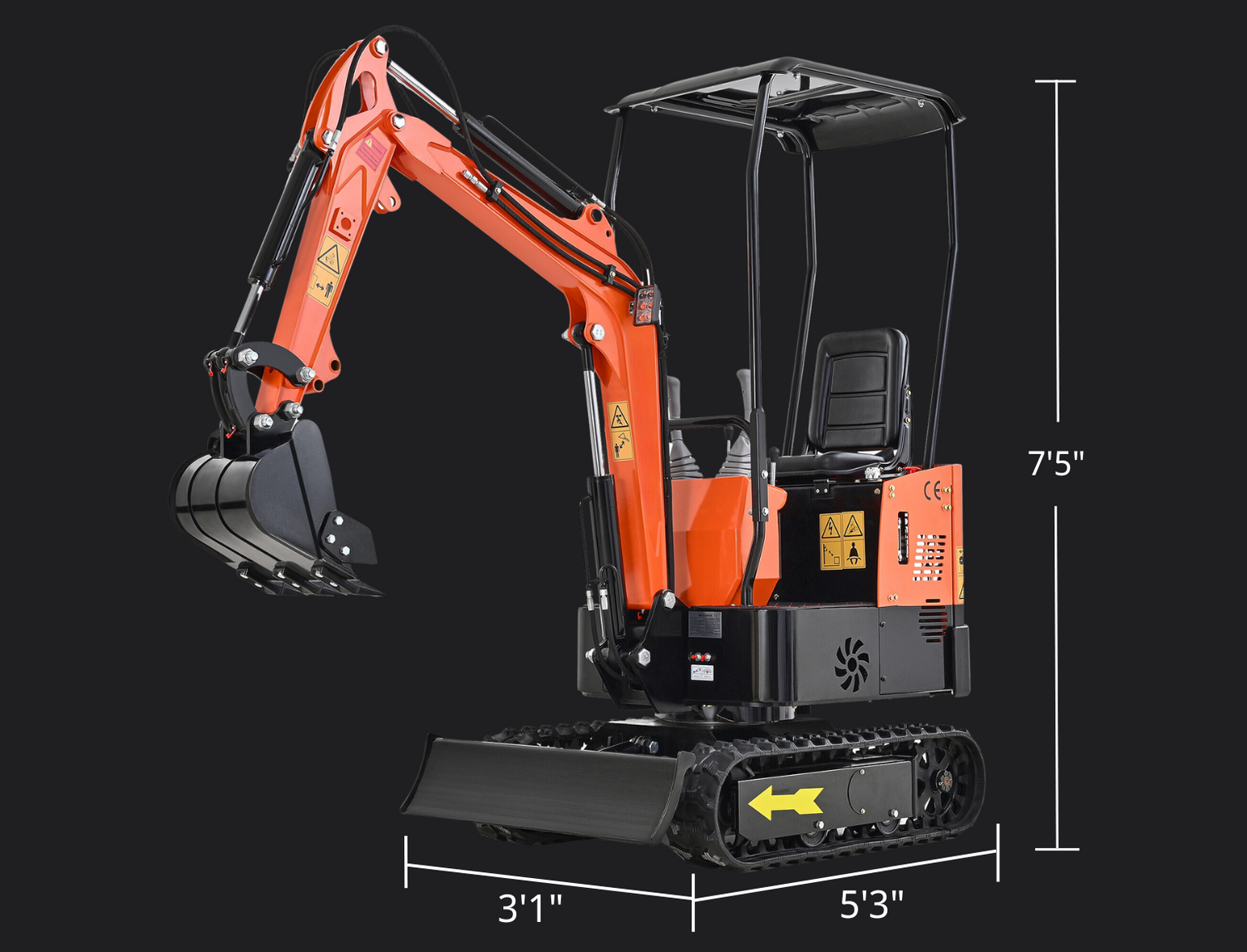

With a total width of just 3'1", our excavator is easy to maneuver in tight urban and residential spaces. The reduced tailswing model minimizes the risk of property damage near buildings and obstacles due to its minimal swing radius.

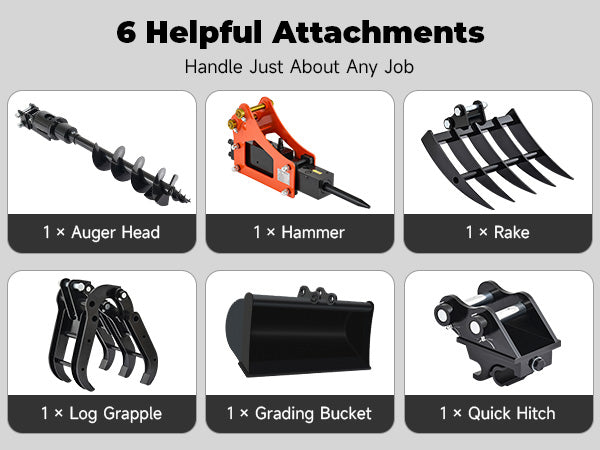

6 Essential mini excavator Attachments Included

6 Essential Attachments Included

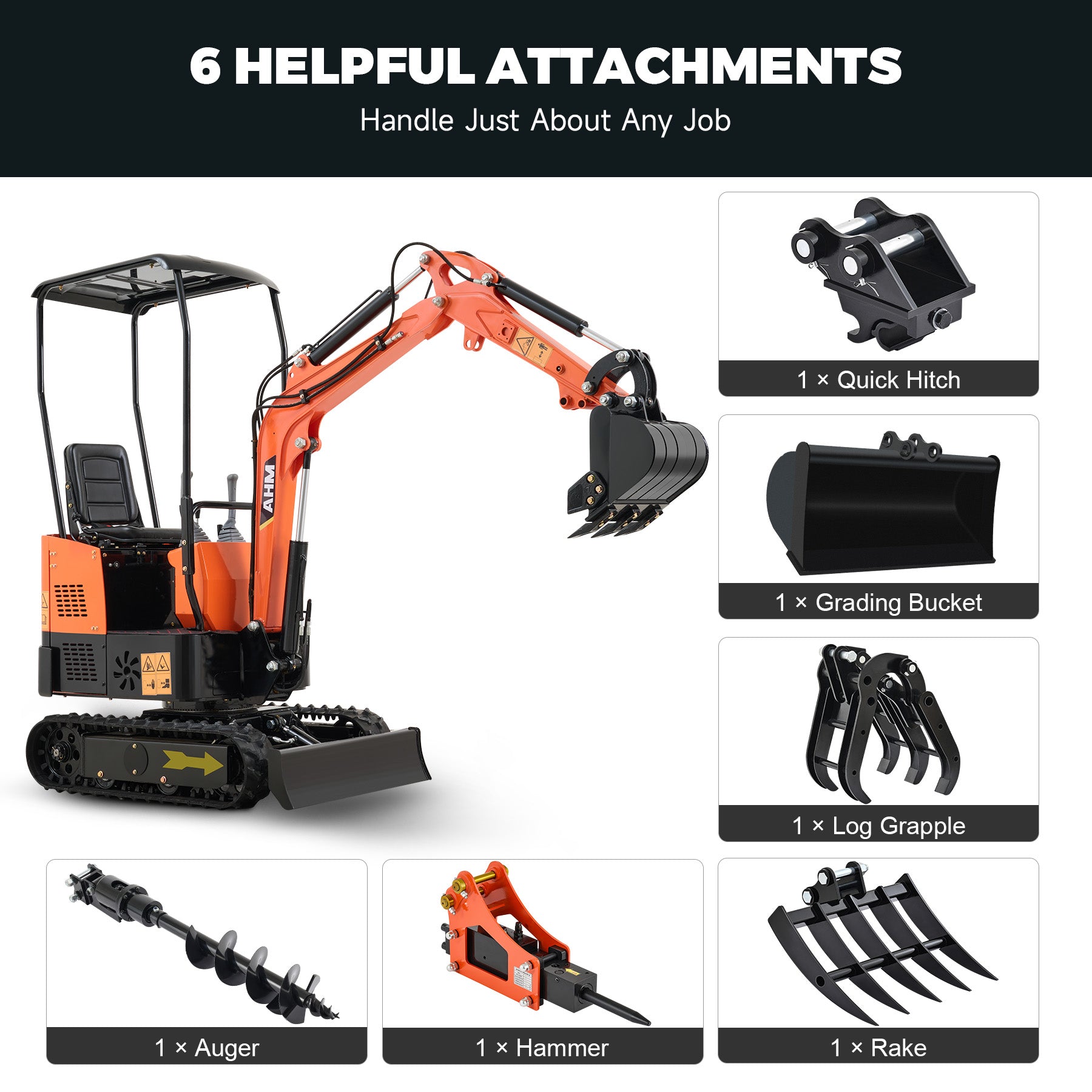

The NW-A1 arrives as a complete package—along with the excavator, you get six free attachments in one crate: a quick hitch, grading bucket, grapple, rake, hydraulic hammer, and auger. Everything you need is included, saving you time and money right from the start.

small excavators ALL DAY COMFORT 1201

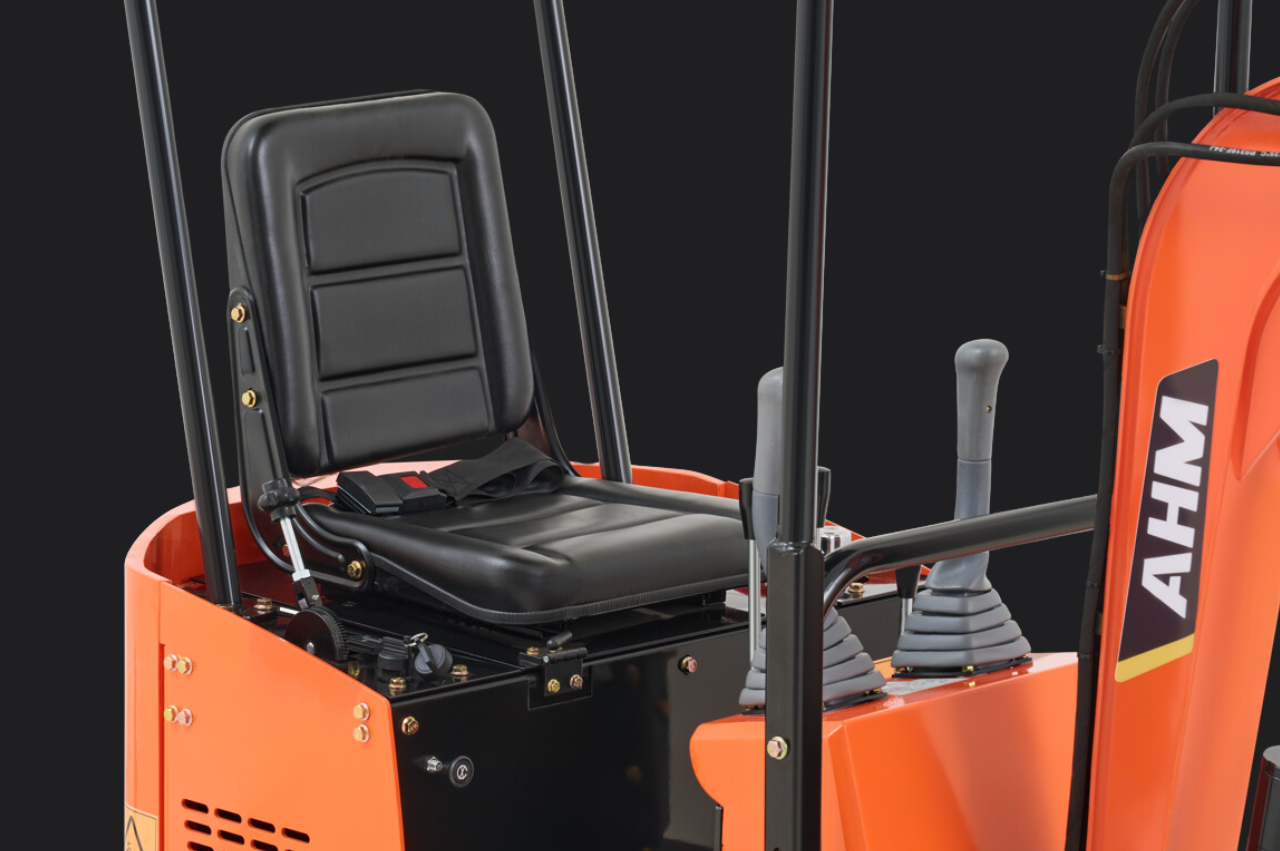

All Day Comfort

Our small excavator keeps you comfortable all day long. It's designed with ergonomics in mind, so you've got a supportive backrest and a soft seat that'll make your day easier.

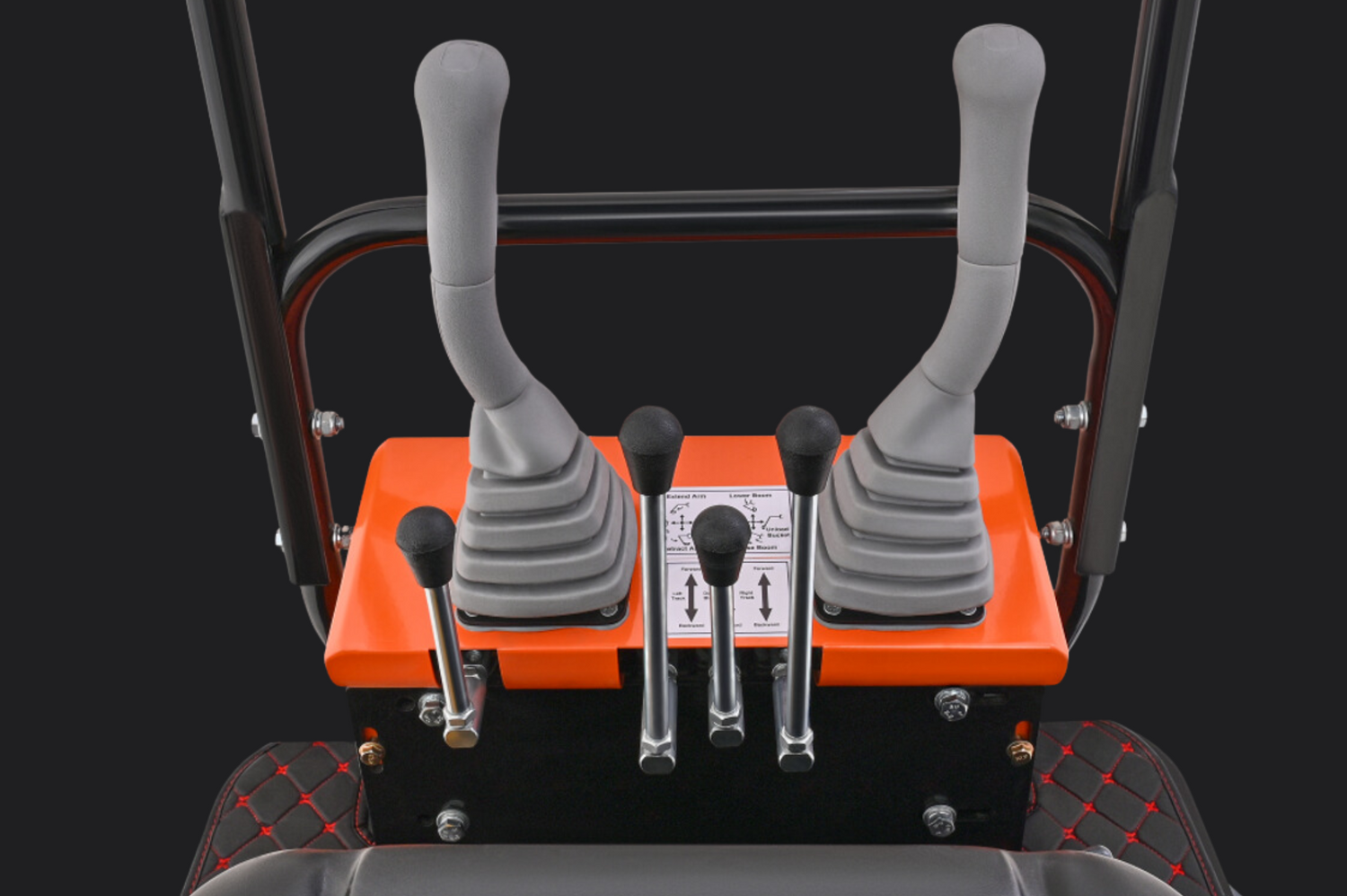

PREMIUM HYDRAULIC CYLINDER

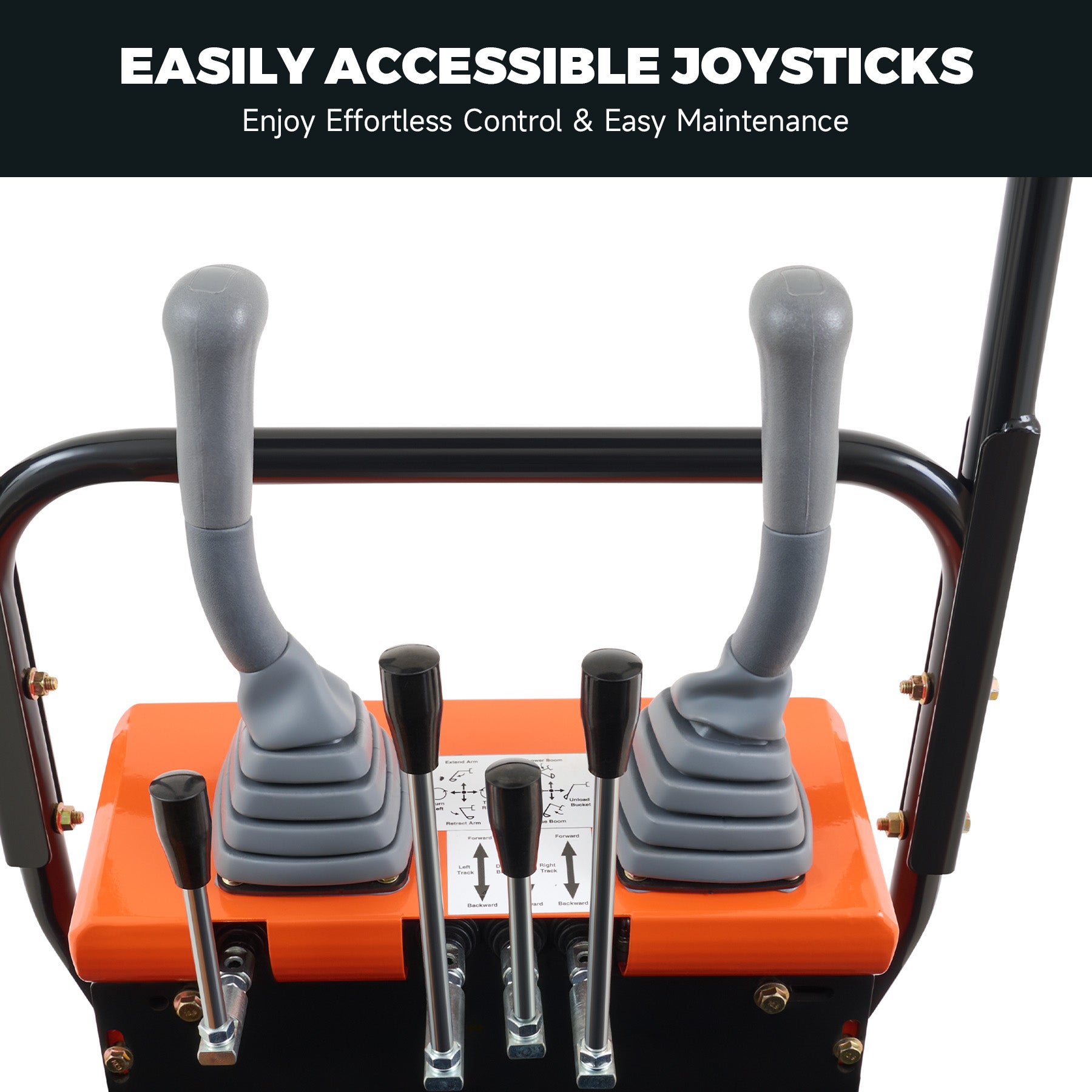

Hydraulic Joystick Control

  • The hydraulic joystick on AHM mini excavators ensures smooth, efficient operation. It allows precise control of attachments with minimal effort, reducing fatigue during grading and backfilling.
  • Designed with the International Standards Organisation (ISO) operation mode, it ensures simplicity and ease of use, with minimal learning curve.
Easy Maintenance

Easy Maintenance

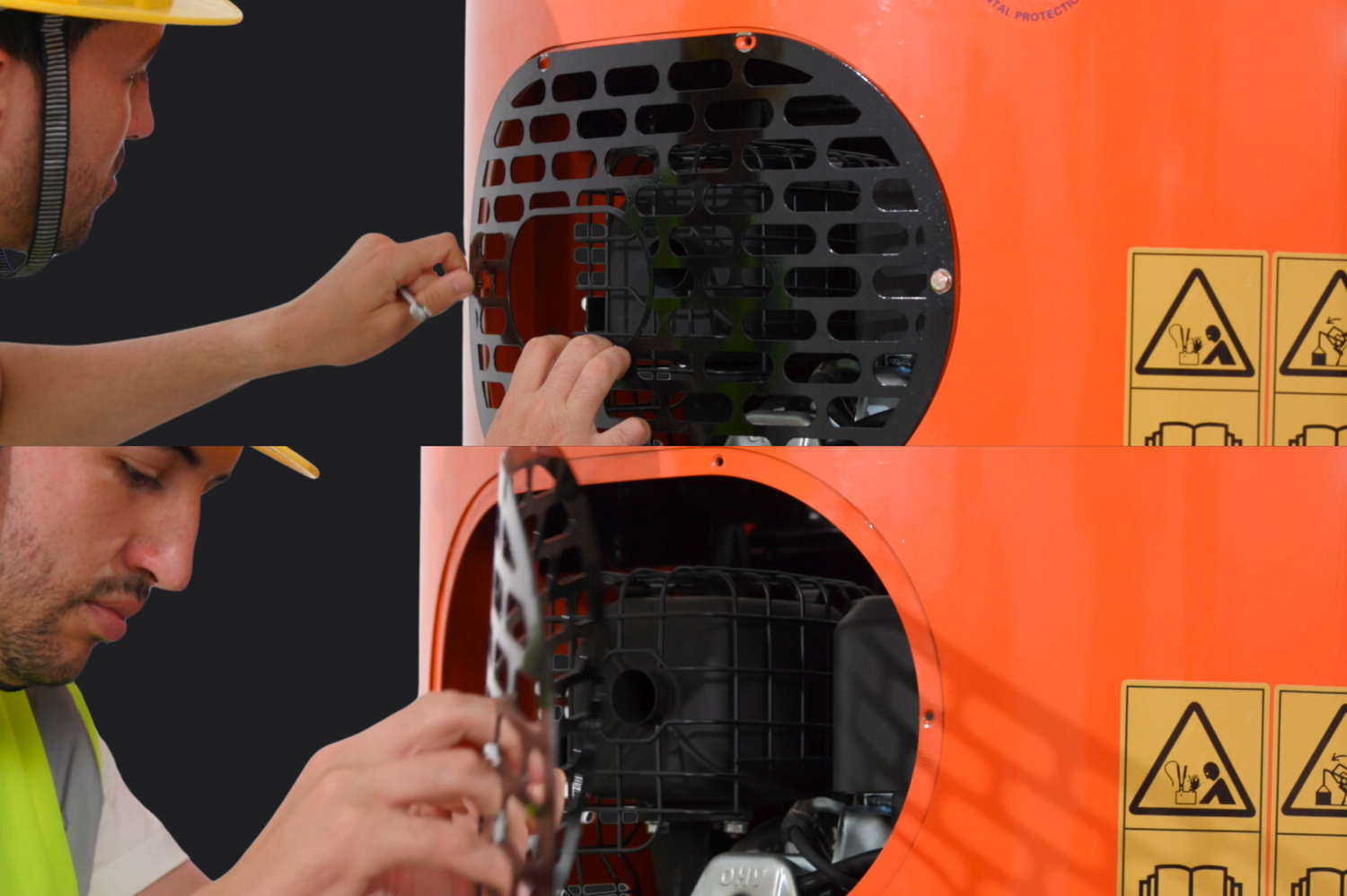

On this heavy-duty compact excavator, maintenance is quick and easy. Located conveniently at the rear, accessible maintenance ports allow effortless removal of guards and straightforward servicing of key components. These accessible points minimize downtime, ensuring your machine operates at peak performance consistently.

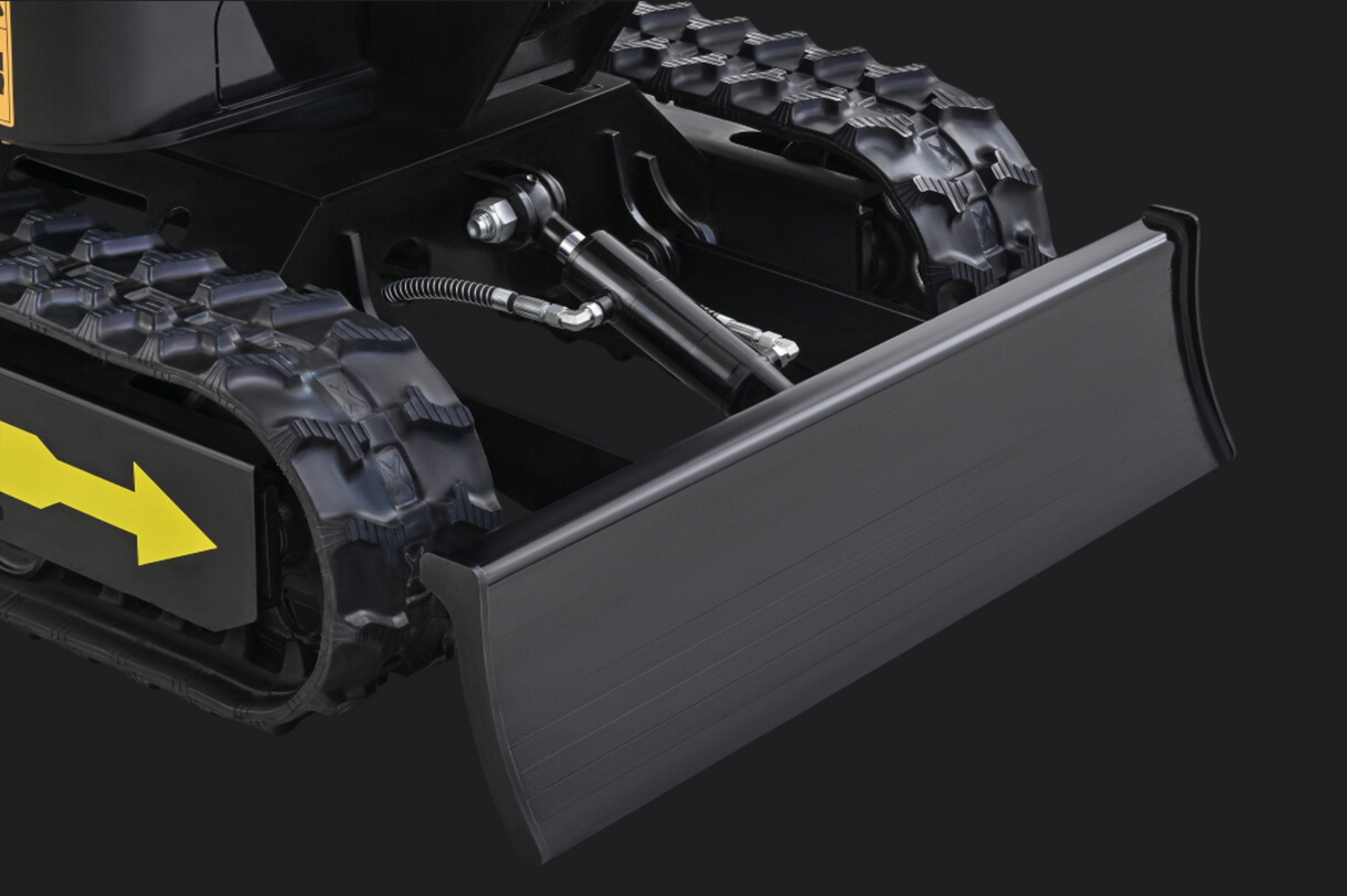

Adjustable Dozer Blade

Adjustable Dozer Blade

Our 750mm wide blade stands out from competitors, offering superior coverage. It adjusts from -16cm to +16cm in height, ensuring versatility across different terrains. Features like Dig-to-Blade and dozer float make clean-up effortless.

Ready-to-Use Hydraulic System

Ready-to-Use Hydraulic System

  • Our small excavator arrives with hydraulic oil pre-filled for immediate use. Monitor oil levels and temperature effortlessly with the built-in meter, ensuring you have full control over the machine's status at all times.
  • Adding hydraulic oil is easy with the conveniently located next to the left-side excavator seat. Clear labeling on the machine body ensures seamless operation.

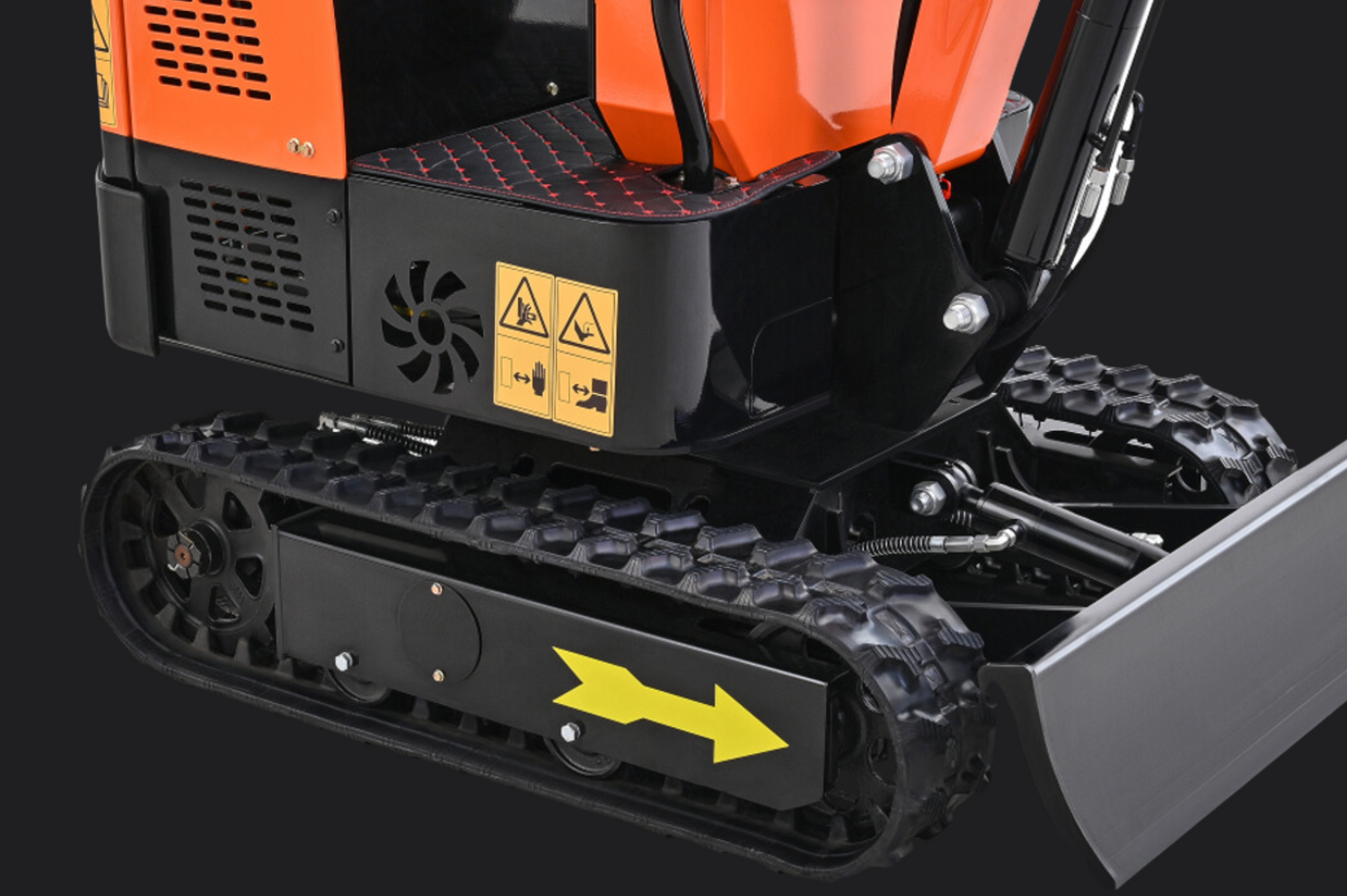

Enhanced Durability track

Enhanced Durability

The improved track frame design reduces mud buildup and minimizes wear on the carrier rollers, enhancing the machine's durability. Forged structure at key boom joints, with optimized shape and thickness, alleviates stress and boosts longevity.

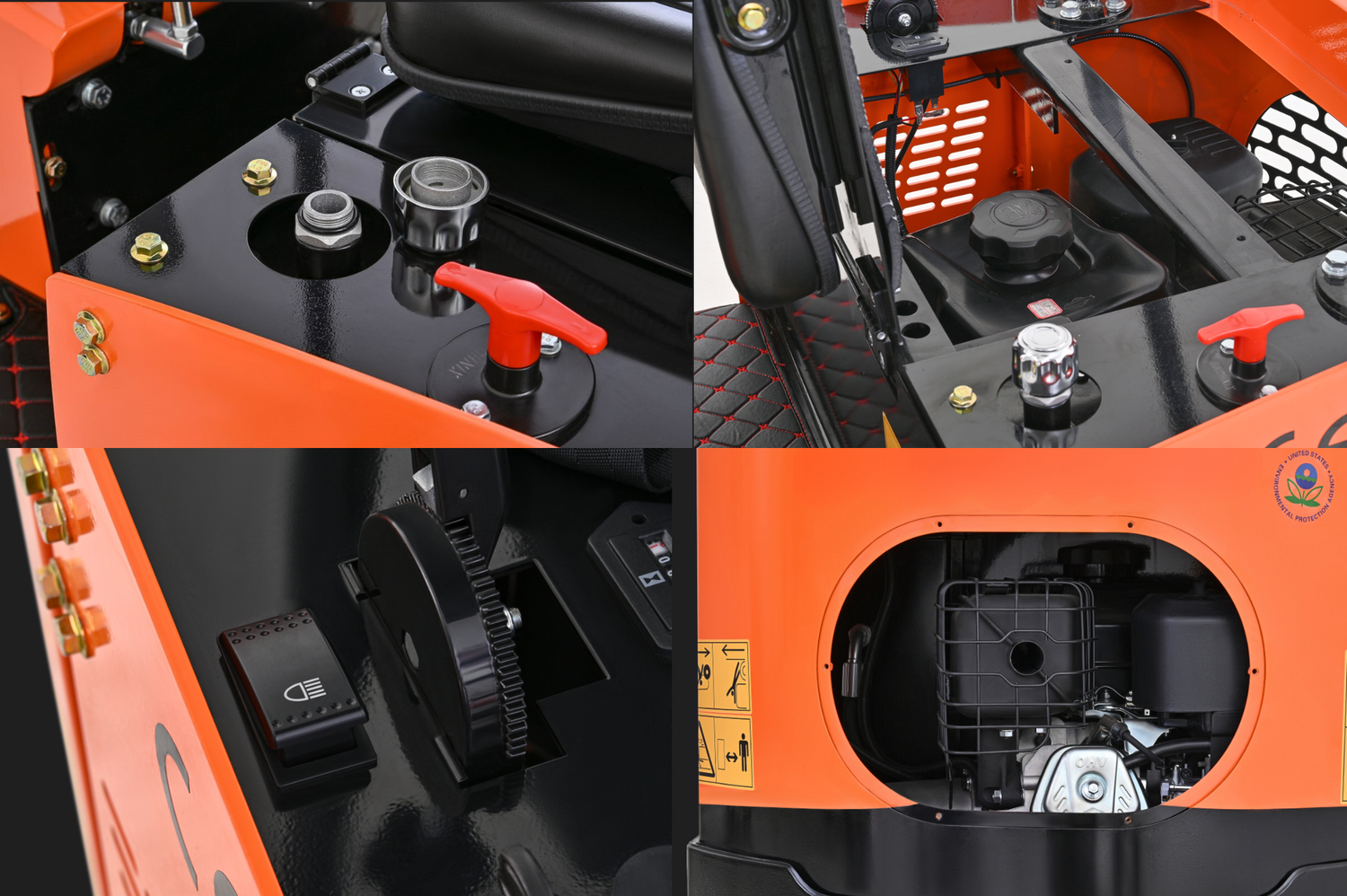

Top-Quality Workmanship

Top-Quality Workmanship

The machine's structural components are crafted by Japan Komatsu's trusted manufacturers. The entire vehicle undergoes shot blasting, pickling, phosphating, and spraying processes, enhancing paint adhesion for increased durability, resistance to fading, and a smoother finish.

  • Your Safety is Our Priority

    Your Safety is Our Priority

    AHM mini excavators keep you safe with work lights on the digging arm for better visibility, a seatbelt for security, a canopy for rain and sun protection, and waterproof, non-slip mats underfoot. Stay safe and focused on the job.

  • Our small digger is made from sturdy steel for durable long-lasting service

    Hardy Helper for Any Terrain

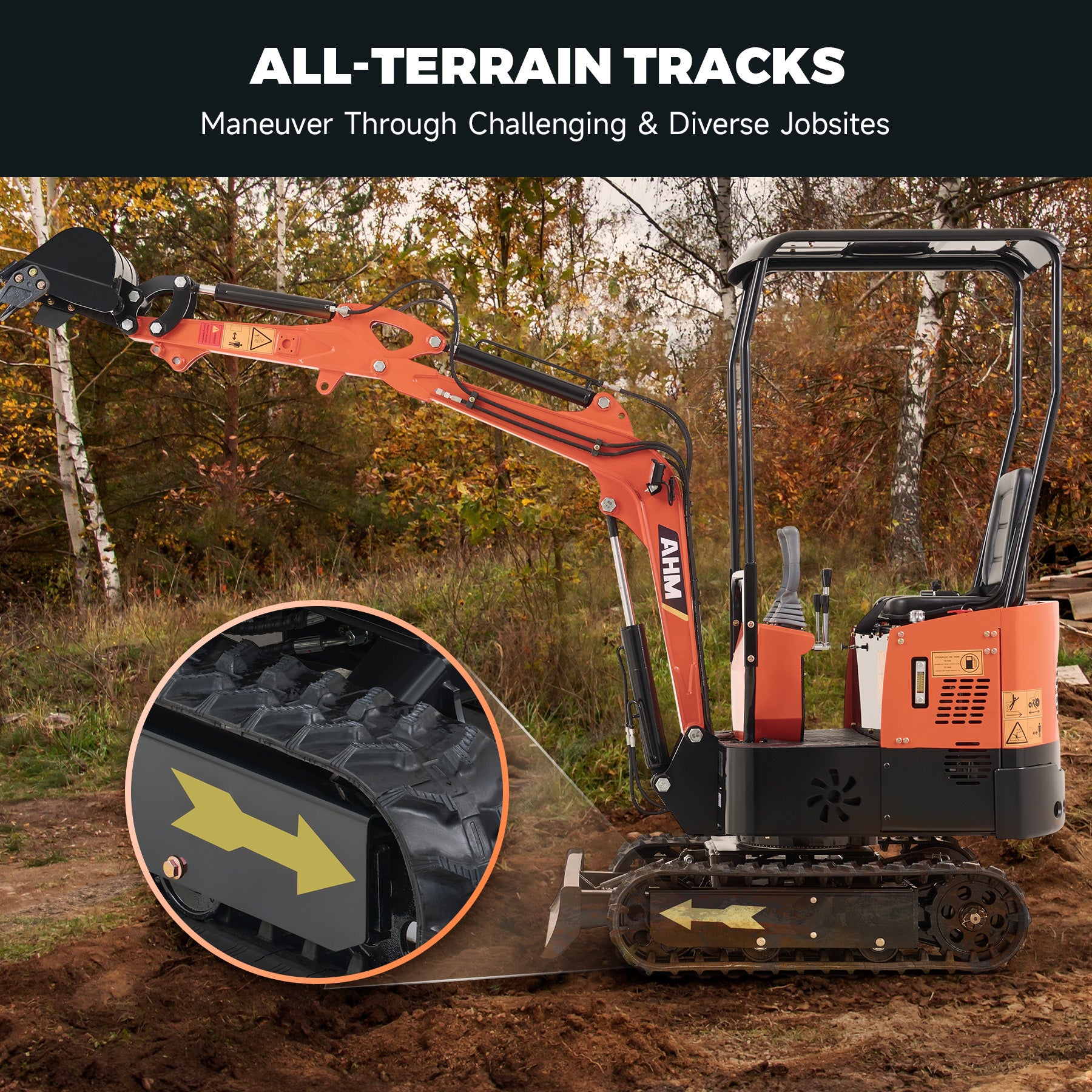

    Our small digger is made from sturdy steel for durable long-lasting service, while the rubber tracks let the excavator move on various surfaces and offer exceptional traction without damaging cabro paving, indoor flooring, or pavement.

13.5 hp Mini Excavator B&S Engine 1 Ton Gasoline Mini Digger

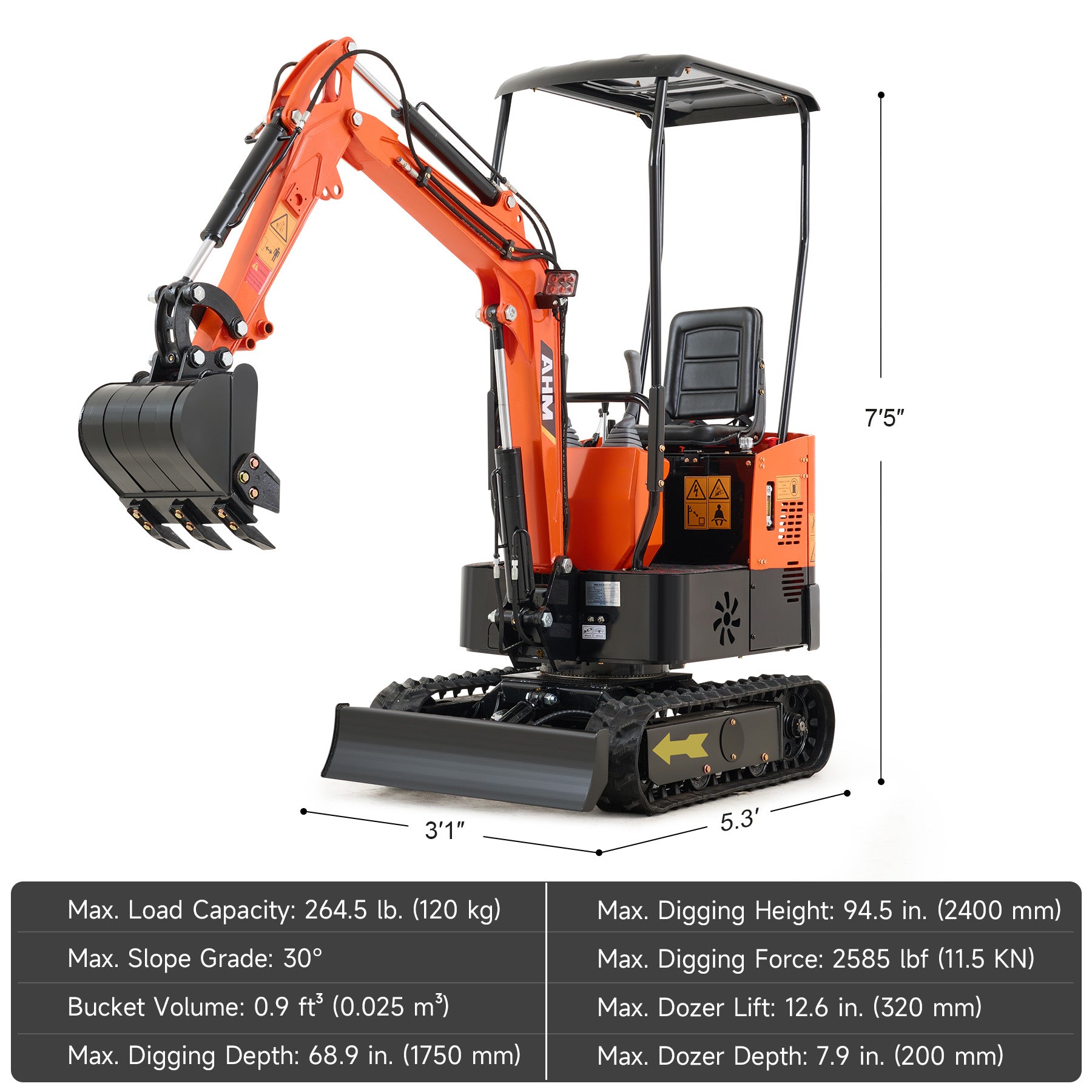

  • Specification

    • Material: Steel, Rubber
    • Engine Power: 13.5 hp (10 kW)
    • Max. Load Capacity: 265 lb. (120 kg)
    • Max. Slope Grade: 30°
    • Bucket Volume: 0.88 ft³(0.03 m³)
    • Bucket Width: 15.7 in. (400 mm)
    • Max. Digging Depth: 69 in. (1750 mm)
    • Max. Vertical Digging Depth: 61 in. (1550 mm)
    • Max. Digging Height: 94.5 in. (2400 mm)
    • Max. Digging Force: 2585 lbf (11.5 KN)
    • Max. Digging Radius: 120 in. (3050 mm)
    • Max. Dumping Height: 62.6 in. (1590 mm)
    • Max. Dozer Lift: 12.6 in. (320 mm)
    • Max. Dozer Depth: 7.9 in. (200 mm)
    • Fuel Consumption: 0.26 gal/h (1 L/h)
    • Fuel Tank Volume: 1.74 gal. (6.6 L)
    • Warranty: 1 Year

  • Package List

    • 1x Mini Excavator
    • 1x Filter
    • 4x Pipe Clamps
    • 4x Grease Fittings
    • 1x Hose Nozzle
    • 1x Socket
    • 1x Grease Gun
    • 1x Hex Wrench
    • 1x Socket Lever
    • 1x Adjustable Wrench
    • 4x Wrenches
    • 1x Lubricating Grease
    • 1x Tool Box
    • 4x Adapters
    • 1x User Manual

Specs & Compare

Product Manual
AHM Mini Excavator, 1 Ton Mini Digger with Hammer Auger Log Grapple Quick Hitch Grading Bucket & Rake Included, 13.5 hp Small Crawler Machine with Rain Canopy for Home Garden Farm Park Roadway Digging
NW-A1
Key Specifications
Operating Weight
Max. Bucket Digging Force
Max. Digging Depth
Width
Tail Swing Type
Engine
Emissions Tier (EPA)
Model
Gross Power
Engine Fuel
Maximum Governed RPM
Rated Torque
Displacement
Stroke
Bore
Performance
Operating Weight
Weight Class
Max. Traveling Speed
Bucket Digging Force
Max. Digging Radius
Min. Swing Radius
Max. Digging Depth
Max Dump Height
Platform Ground Clearance
Bucket Volume
Bucket Width
Capacities
Fuel Tank Volume
Fuel Consumption
Fuel Type
Hydraulic System
Hydraulic Tank Volume
Hydraulic Oil
Main Pump Flow
Rated Pressure
Max. Pressure
Dimension
Overall Length in Travel Position
Width
Height with Operator Cab

FAQ

What is the engine cooling method?

The engine cooling method is air-cooled.

What is the fuel type?

The fuel type is gasoline with an octane rating of 90 or higher.

What is the capacity of the fuel tank and the fuel consumption rate?

The capacity of the fuel tank is 6.6 L , and the fuel consumption rate is 1 liter per hour (1 L/H).

Where is the fuel filling port located?

The fuel filling port is located at the bottom of the seat.

What is the engine model?

This mini excavator comes with a BRIGGS & STRATTON single-cylinder 25T2 engine.

What accessories are included with the machine?

The machine comes with only one digging bucket and does not include any additional attachments.

What is the travel speed of the excavator?

The travel speed of this excavator is 3 km/h.
